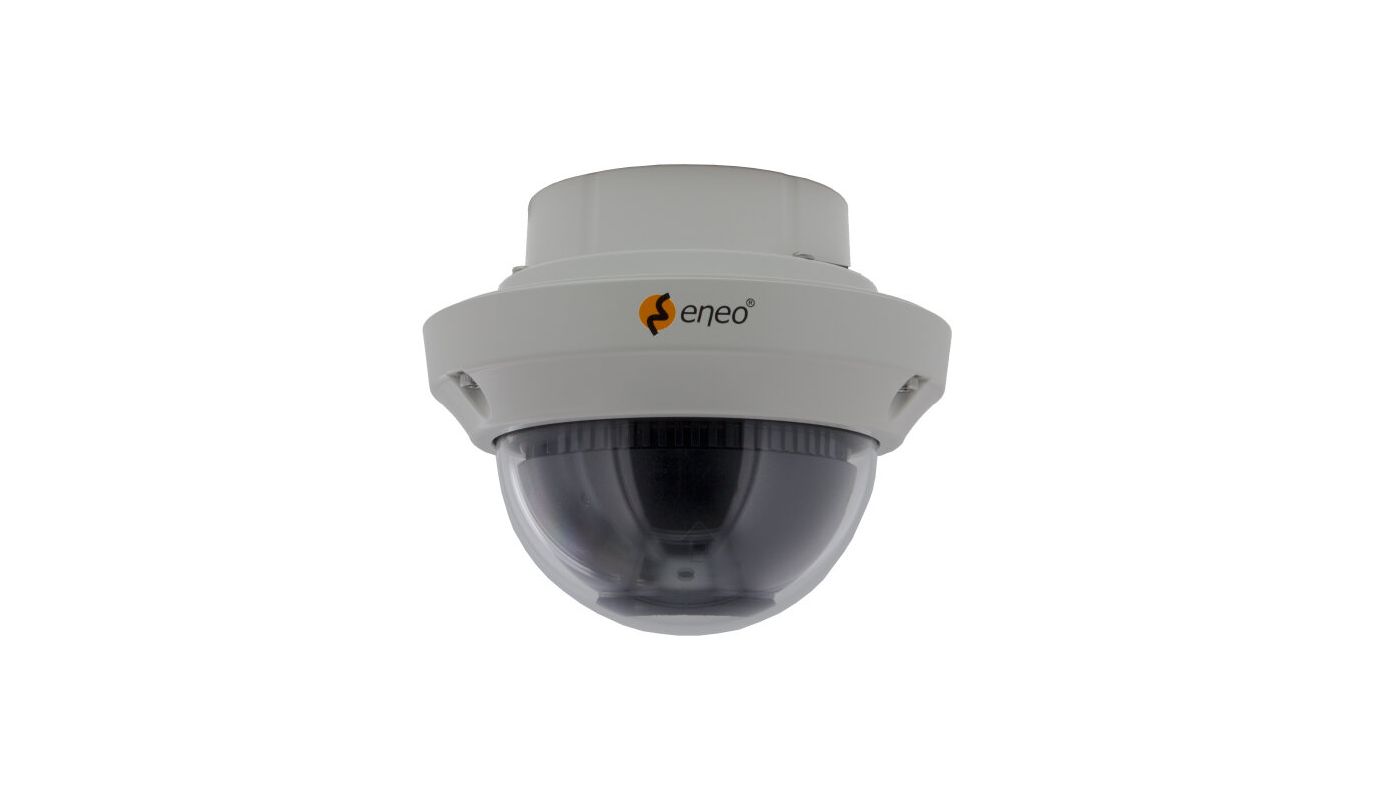

MPD-74A0003M0A

1/2,9" HD Dome, Fixed 2560x1440, Day&Night, AF Zoom, WDR, 3,2-9mm, Infrared, IP67
Art. No.
218772
  • 1/2,9“ 6,64 Megapixel SONY STARVIS CMOS-Sensor
  • Resolution max. 2560x1440@25/30fps
  • Optical 3x auto focus zoom, 3,2~9mm
  • Separate outputs for digital and multi-signal
  • Multisignal: HD-TVI, AHD selectable, Composite SUB
  • Digital signal: EX-SDI, HD-SDI selectable
  • DOL-WDR by triple scan images at 30/25fps &
  • ROI (Region of Interest) WDR mode
  • Point of Interest & Smart Motion Zoom
  • IP67, built-in heater, 3-Axis gimbal
  • For wall or ceiling flush mount
  • Hard coated bubble, Anti-scratch protection
Special features
Smart Motion Zoom--Zoom on defined ROI on motion|Hard Coated Bubble (Hardness grade - H) -- Anti Scratch Protection|Pointing Zoom -- enables the flexible zooming at any area|Preset Zoom (4 adjustable positions)
Specifications
Series eneo KX-Series, eneo COAXIZE, eneo Callisto
Camera:
Camera type Dome
Sensor size 1/2.9"
Imager CMOS, Sony STARVIS, Sensor IMX326
System True Day&Night
Sensitivity 0,1 Lux, at F1.6, 40IRE
Low Speed Shutter yes
Low speed shutter 2x ~ 32x
Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR, WDR 113dB, Real Time WDR 25/30fps
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night, night-color mode
White balance AUTO, AUTOext, manual, Preset
Signal-to-noise ratio 50dB
Video:
Signal format HD-TVI @ 4MP, AHD @ 4MP, EX-SDI @ 4MP, HD-SDI (1.485 Gbps)
Frame rate 25/30fps @ 2560x1440p, 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Synchronization internal
Lens:
Lens Type auto focus zoom
Zoom Factor 3x
Focal Length 3,2 - 9 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Aperture range (F) F1.6
Iris Control DC
Resolution Pixels 2560x1440, 1920x1080, 1280x720
Vertical Angle of View 41 - 15°
Horizontal Angle of View 75 - 26°
Video standard PAL/NTSC
DORI:
Detect (25px/m) 80 - 215 m
Observe (62 px/m) 32 - 88 m
Recognize (125 px/m) 14 - 43 m
Identify (250 px/m) 6,6 - 21 m
Functions:
Motion Detector yes
Analysis functions Defog, Digital Image Stabilization
Rotation range +/-173°
Vertical tilt range 65 °(25 ~ 90°)
OSD function control OSD camera setup
Menu languages English, German, Japanese, Chinese, Korean
Privacy zone masking Areas-ON/OFF switchable
Mirror function V flip, H-flip, H/V flip
Digital Noise Reduction yes
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI, AHD, composite (CVBS) SUB, EX-SDI, HD-SDI
External connectors voltage input, 1x SDI Signal (BNC), 1x HD Analog Signal (BNC), connection cable approx.25cm
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
General:
Dimensions (HxWxD) 119x140mm
Weight 1.0kg
llumination infrared
Illumination 2x High Power LEDs 850nm
Illumination range approx. 40m
Color (housing) Pantone Cool Gray 1C
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater yes
Power consumption 8W
Blower no
Mounting wall mount, ceiling mount
Protection rating IP67
Supply voltage 12VDC, 24VAC
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof yes
Certifications IK10
Parts supplied:
Parts supplied manual, Video sub-out cable, bag of screws
Remarks NDAA compliance under Section 889, Part A.
