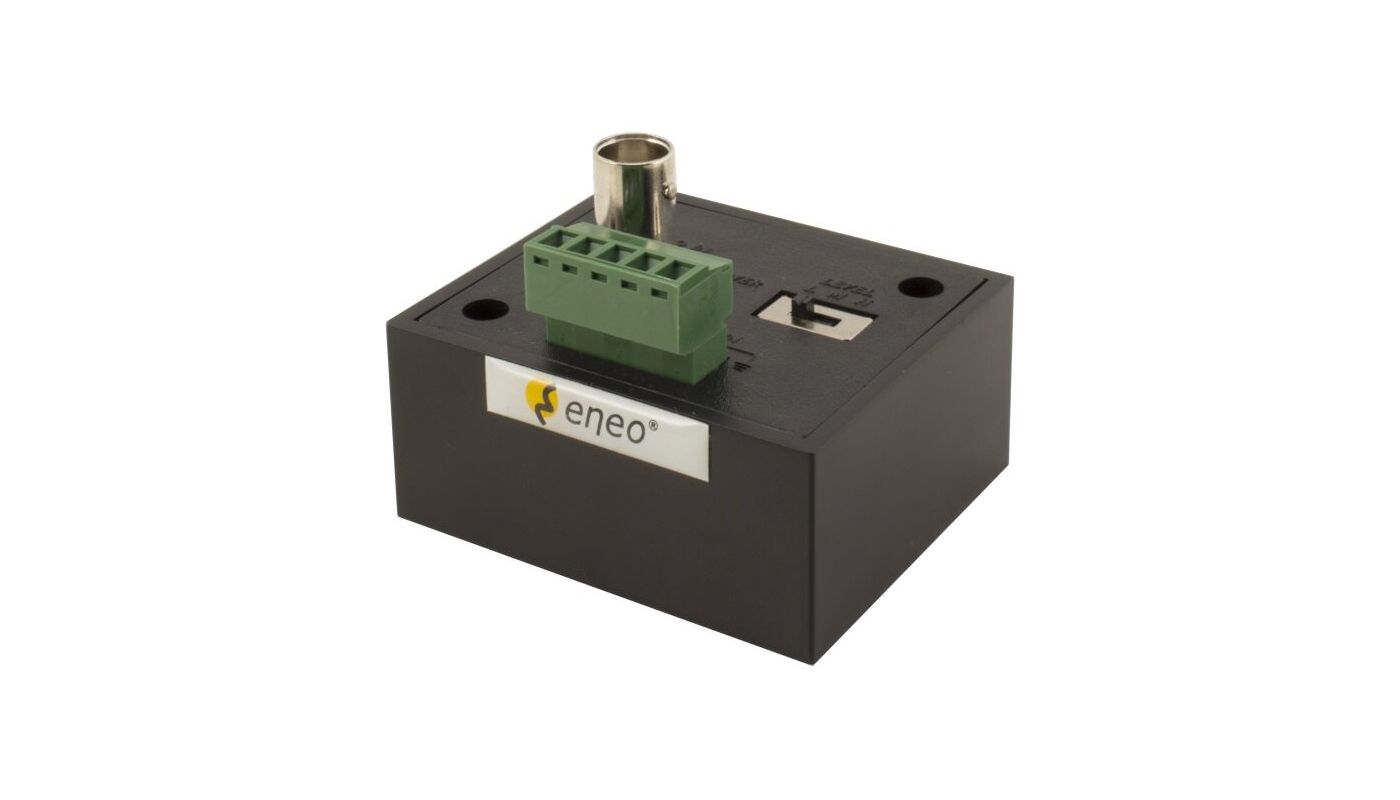

TVA-1201TRA

UTP Transmitter+Receiver, UTP, BNC, 250m, Indoor, HD TVI CVI, AHD, CVBS, Active, 12V
Art. No.
212984
  • Signal Transmission via UTP cable
  • HD TVI, CVI, AHD or CVBS signals
  • Up to 250m (Cat5e cable)
  • Adjustable video gain
  • Connectors: BNC, UTP terminal block
  • Active Transmitter 12VDC + Passive Receiver
Specifications
Series eneo COAXIZE
Resolution Pixels 1920x1080, 2560x1440
Video inputs BNC-female
Video outputs T. Block (UTP)
General:
Dimensions (HxWxD) 49.2x57.8x41.7mm T & 14.5x15.5x49.5mm R
Weight 70g
Colour anthracite
Power consumption 0.84W
Supply voltage 12VDC
Parts supplied:
Parts supplied manual, PSU
Notes:
Remarks UTC- PTZ control is not supported
Downloads
Documents PDF Data sheet with specifications, generated live from the product database
Documents PDF Detailed manual for this product en
Documents PDF Declaration of Conformity in German and English
Media ZIP Product Image in a high resolution for print
