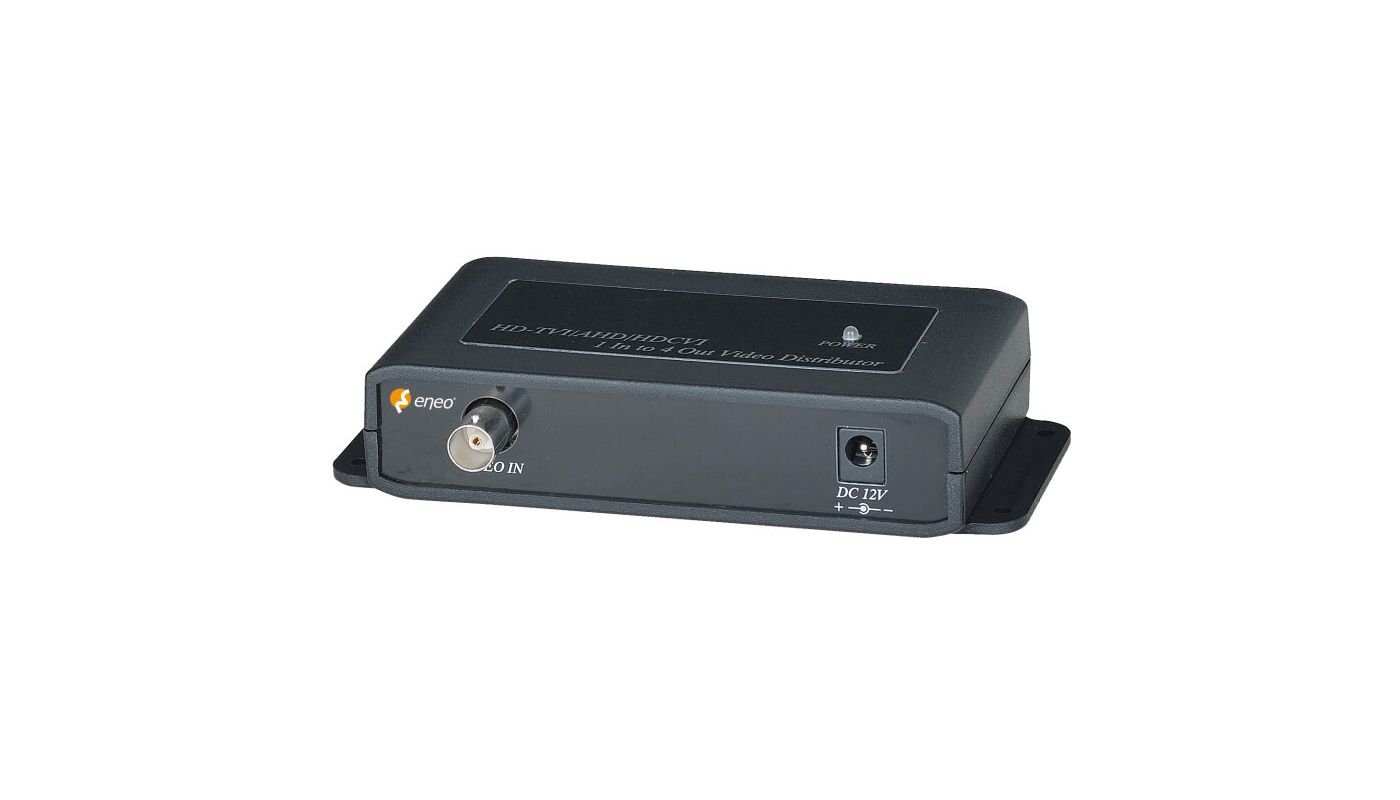

MAM-5DC1004M0A

Distributor, 1x BNC Input HD-TVI, CVI, AHD, CVBS, 4x BNC Output
Art. No.
225085
  • Video Distributor for HD analogue signals
  • 1 signal input to 4 signal outputs
  • Supported formats HD-TVI, AHD, HDCVI, CVBS
  • High resolutions of up to 4K are supported
Specifications
Series eneo COAXIZE
Signal format HD-TVI @ 8MP, AHD @ 8MP, CVI @ 8MP, Composite (FBAS)
Resolution 3840x2160 (16:9)
Image resolution max. 3840x2160
Video standard PAL/NTSC
Video inputs (type) HD-TVI, AHD, CVI, composite (CVBS)
Video inputs BNC-female
Video outputs BNC, 4
Dimensions (HxWxD) 29,5x138x85,6mm
Weight 140g
Colour anthracite
Housing plastic
Power consumption 1.4W
Supply voltage 12VDC, 12VDC
Parts supplied manual, bag of screws, PSU
Notes:
Remarks UTC- PTZ control is not supported
