MAM-5MM2203M0A
SKU
236125

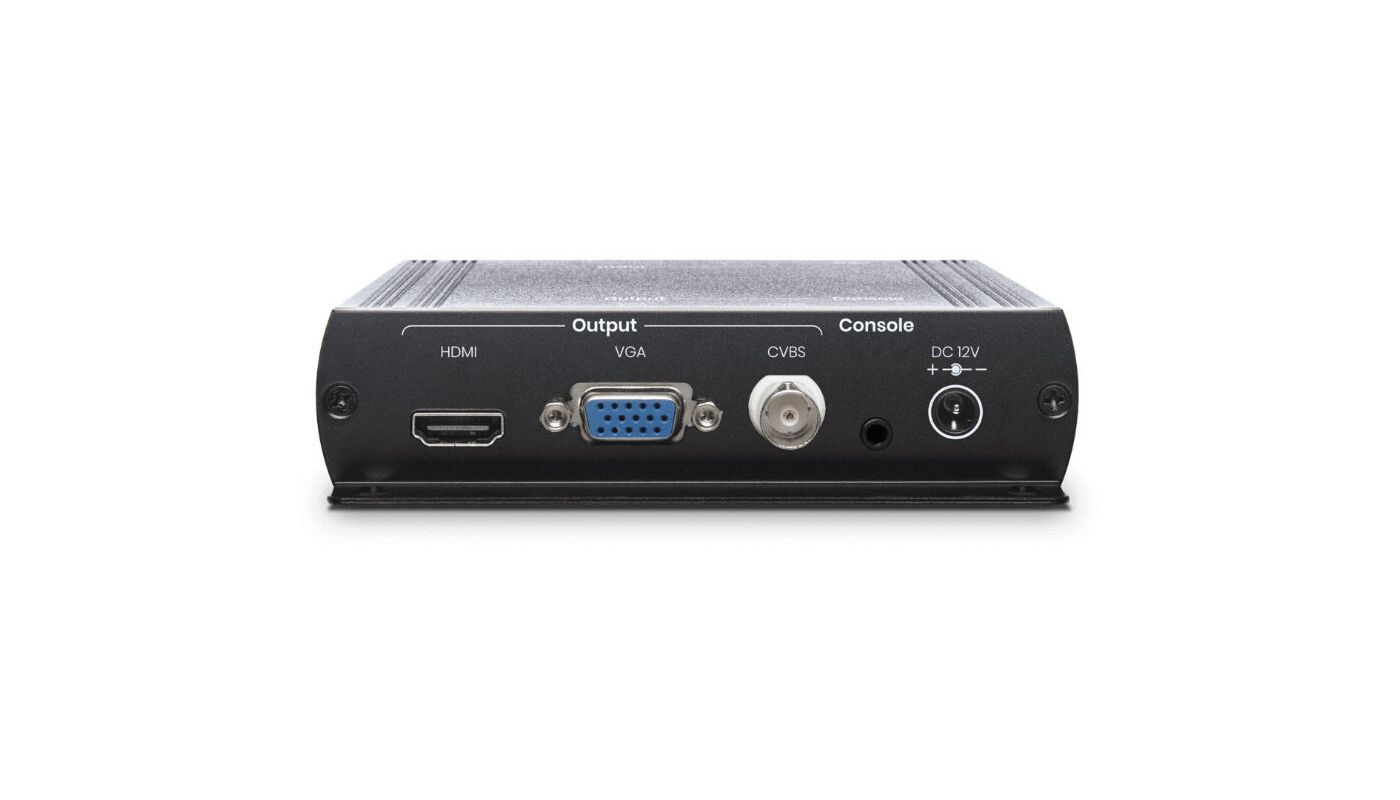

Converter, 4K HD-TVI, HD-CVI, AHD, auf HDMI, Indoor 12VDC
Main Features
Video input resolution up to 4K/ 8MP
Video output resolution up to 4K for HDMI,
1080p for VGA and NTSC/PAL for CVBS.
Built-in loop-out for daisy chain or a DVR.
Built-in 3.5mm audio input
Built-in RS232 interface
Supports PIP (Picture in Picture).
Supports OSD (On Screen Display)
Supports UTC (Up the Coaxial)
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Video:
- Signal format
- AHD @ 8MP, CVI @ 8MP, HD-TVI @ 8MP
- Resolution
- 3840x2160, 1920x1080 (16:9), 1280x720 (16:9), 720x576 (4:3), 640x480 (VGA)
- Image resolution max.
- 3840x2160
- Interfaces / Inputs/ Outputs:
- Video inputs (type)
- AHD, CVI, HD-TVI
- Video inputs (amount)
- 2
- Video inputs
- BNC-female
- Video outputs
- BNC, HDMI, VGA
- General:
- Brand
- ENEO
- Series
- eneo COAXIZE
- Dimensions (HxWxD)
- 125x130x30mm
- Weight
- 370g
- Color
- anthracite / black
- Housing
- aluminium
- Power consumption
- 3.8W
- Supply voltage
- 12VDC
- Parts supplied:
- Parts supplied
- manual, bag of screws, PSU, feet set
- Other
- Manufacturer order number
- 236125
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Quick reference guide for this product
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Declaration of Conformity in German and English
- Media ZIP
- Product Image in a high resolution for print
