MAM-5MM1001M0A
SKU
220299

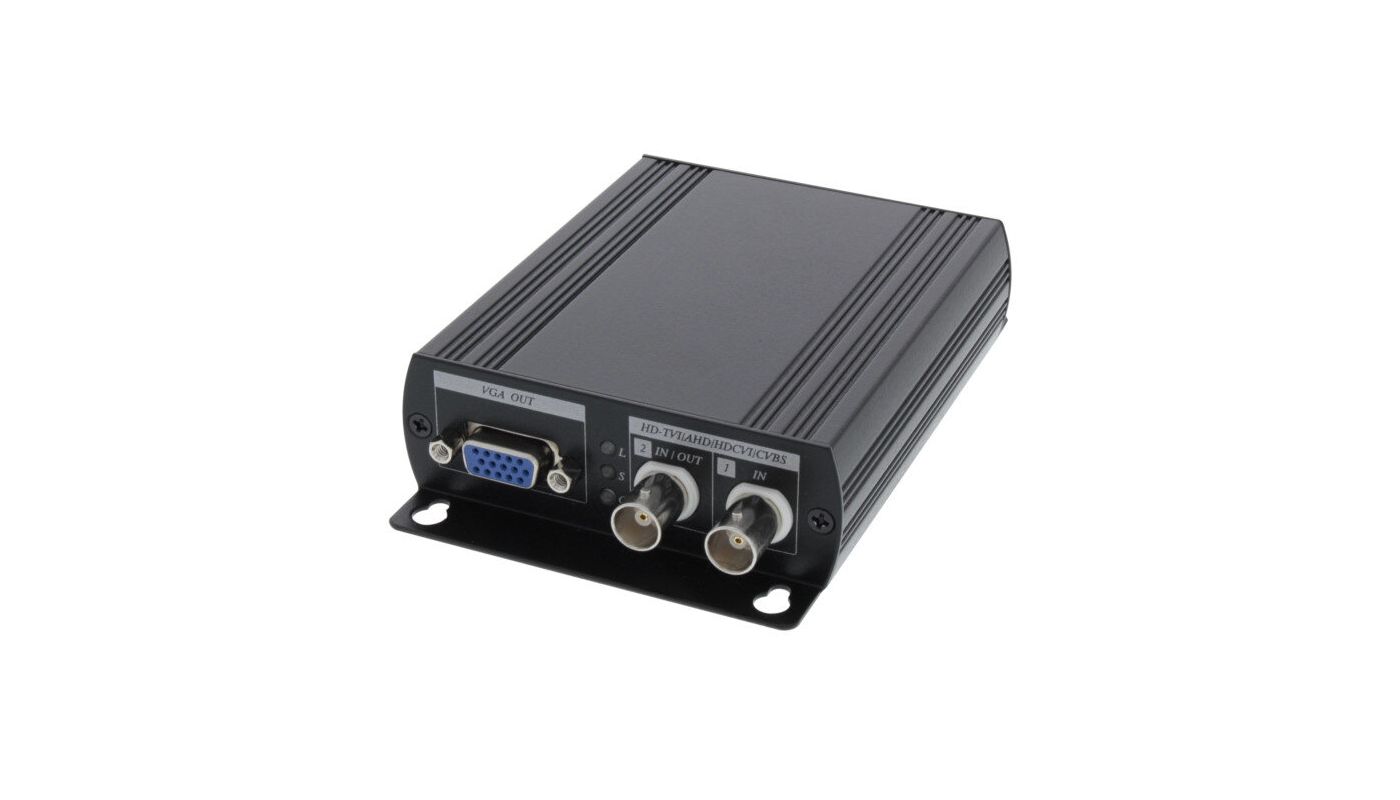

Converter, HD-CVI, HD-TVI, AHD, Composite to HDMI, VGA, Composite, Indoor
Main Features
Converter HD-TVI, AHD, CVI, CVBS to HDMI, VGA, CVBS
Display simultaneously HDMI, VGA and CVBS signal
HD-TVI, AHD, CVI input: 720p@25/30/50/60Hz, 1080p@25/30Hz
HDMI, VGA output: 480p, 576p,720p, 1080i,1080p
CVBS output: PAL/NTSC
Power LED, Link LED
Built in OSD to display input/output setting
PIP display under dual camera input mode
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Interfaces / Inputs/ Outputs:
- Video inputs (type)
- AHD, composite (CVBS), CVI, HD-TVI
- Video inputs (amount)
- 1
- Video inputs
- BNC-female
- Video outputs
- BNC, HDMI, VGA
- General:
- Brand
- ENEO
- Series
- eneo COAXIZE
- Dimensions (HxWxD)
- 30x88x130mm
- Weight
- 275g
- Color
- anthracite / black
- Housing
- aluminium
- Power consumption
- 5W
- Supply voltage
- 12VDC
- Parts supplied:
- Parts supplied
- manual, bag of screws, PSU
- Other
- Signal format
- AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP
- Image resolution max.
- 1920x1080
- Manufacturer order number
- 220299
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Declaration of Conformity in German and English
- Marketing Infos PDF | 72.2 kB
- Open Source Software License Information
