NSUR-1024M0A
SKU
242365

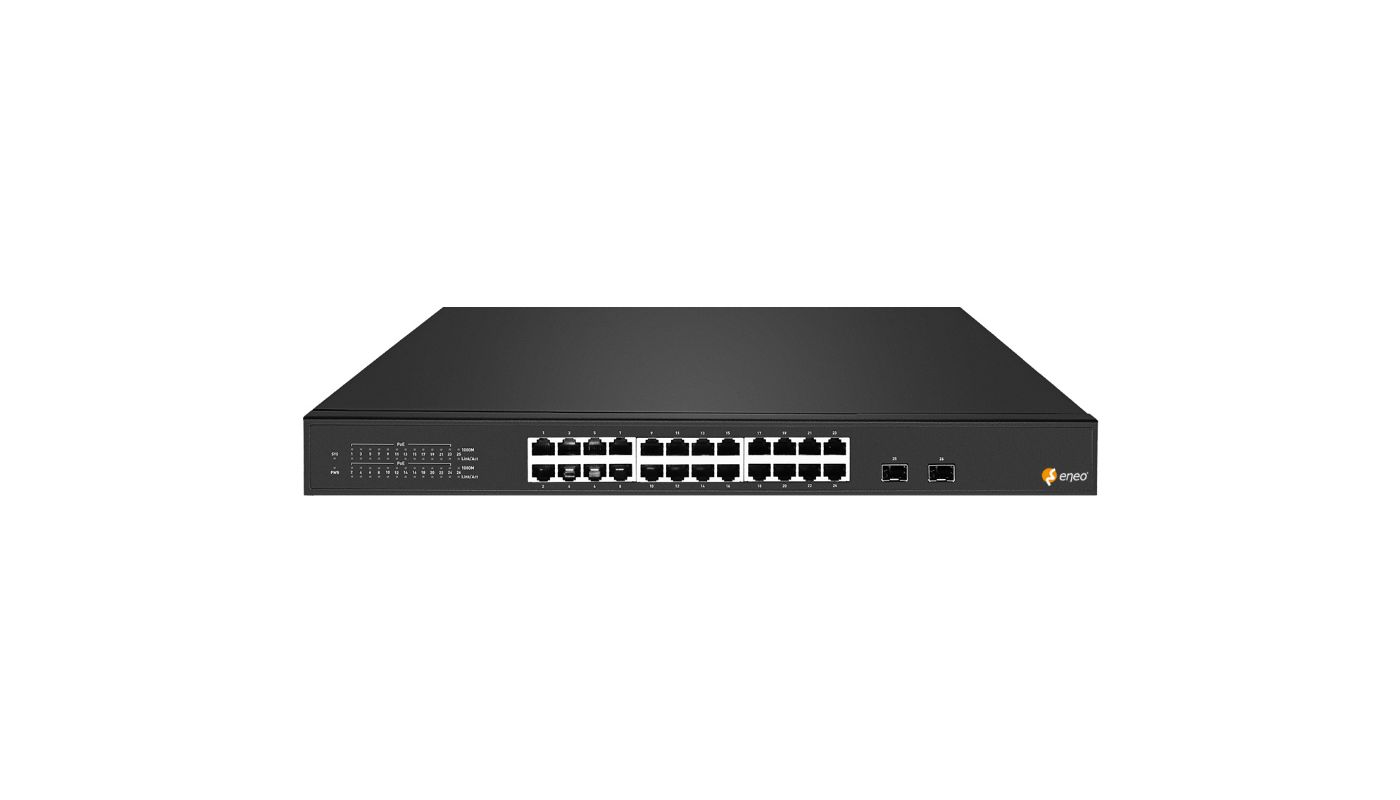

Gigabit Switch Rack, Unmanaged, 24x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 400W
Main Features
24 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber uplink
24 PoE+ ports, up to 30W per port
Total PoE power budget: 400 Watts
Supports IEEE 802.3af/at/az standards
Non-blocking wire-speed on all ports
8K MAC address table supported
Forwarding rate: up to 38.688 Mpps
Switching capacity: 52 Gbps backplane
Supports Energy Efficient Ethernet (802.3az)
Rugged 19" metal case, 440×290×44 mm
Operating temperature: 0–45 °C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Other
- Brand
- ENEO
- Multicast compliant
- no
- Port mirror
- no
- QoS
- no
- SNMP
- no
- Ethernet standards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
- Internal switching capacity (Mpps)
- 38,688Mpps
- Internal switching capacity (Gbit/s)
- 52Gbps
- VLAN
- no
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 24x 10/100/1000Base-TX, 2x 1000Mbps SFP
- Optical connector
- SFP Port
- Series
- eneo Switch
- Dimensions (HxWxD)
- 44,5x440x290mm
- Weight
- 3.5kg
- PoE ports (number)
- 24
- Construction
- Desktop
- Type
- Unmanaged
- Blower
- no
- Management
- no
- Mounting
- 19" rack, desktop
- PoE budget
- 380 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Supply voltage
- 100-240VAC
- Operating temperature
- 0°C ~ +45°C, @ Humidity 10%-90% (non-condensing)
- Parts supplied
- manual, power cord, 19" rack mount angle
- Trunk
- IEC61000-4-2, IEC61000-4-5
- Manufacturer order number
- 242365
