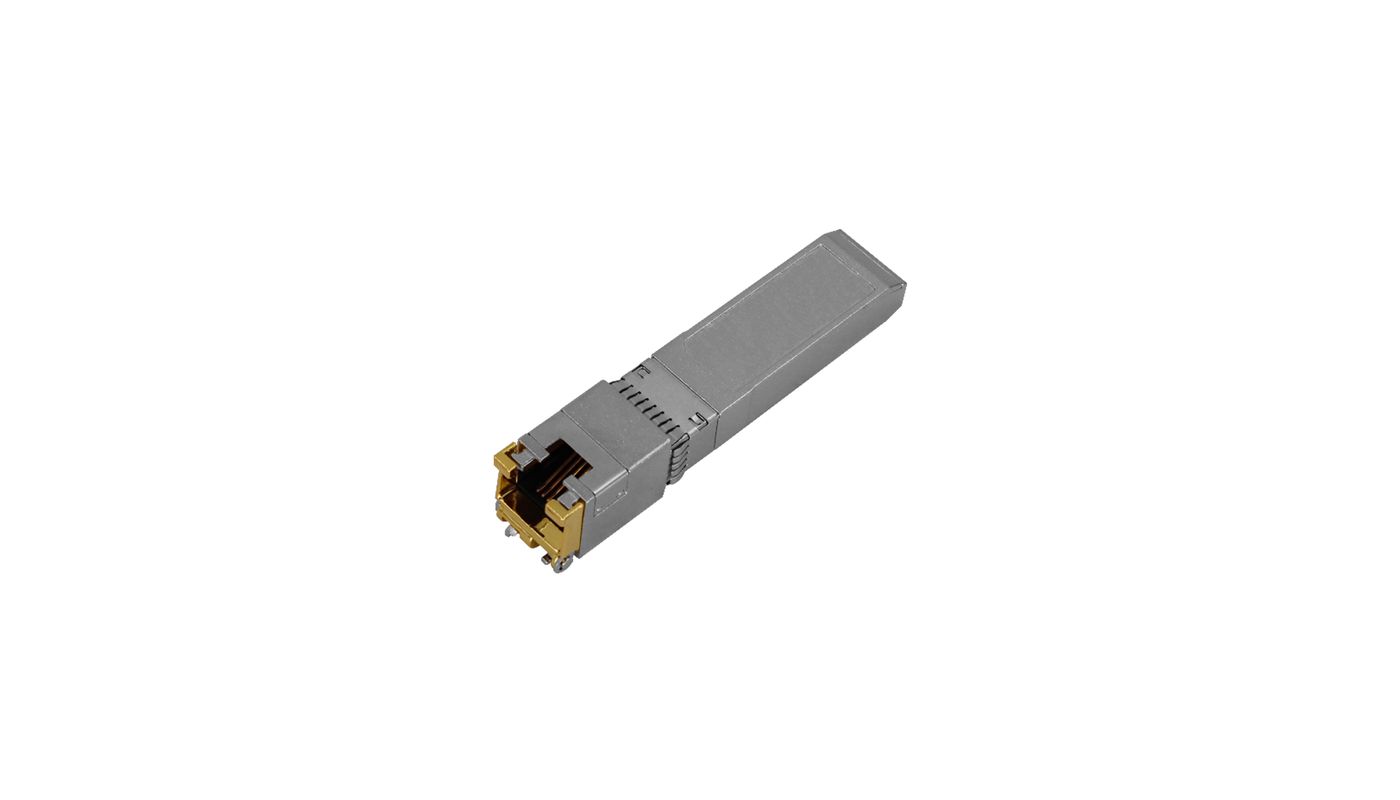

SKU 244698
SFP module, transceiver, RJ45 connection, Cat.6A, supports 10G/5G/2.5 G/1G Ethernet up to 50m range, CAT6a, hot-pluggable

Main Features

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T
On line port with 10GR interface
1000base-T on Line Port Auto Change Giga SFP Module
Hot-pluggable SFP Footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°C
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Manufacturer order number
244698
Brand
ENEO
Design
Module
Ports
1000base-T, 10Gbase-T, 2,5Gbase-T, 5Gbase-T, RJ-45
Dimensions (WxHxD) (extended)
13,8x14,7x68,8mm
Weight
0.024 kg
Reach
0.1 km
Type
SFP Module
Power over Ethernet
IEEE 802.3af
Temperature Range (Operating)
0°C ~ +65°C
Transmission medium
CAT5/6

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Manual JPG | 83.3 kB

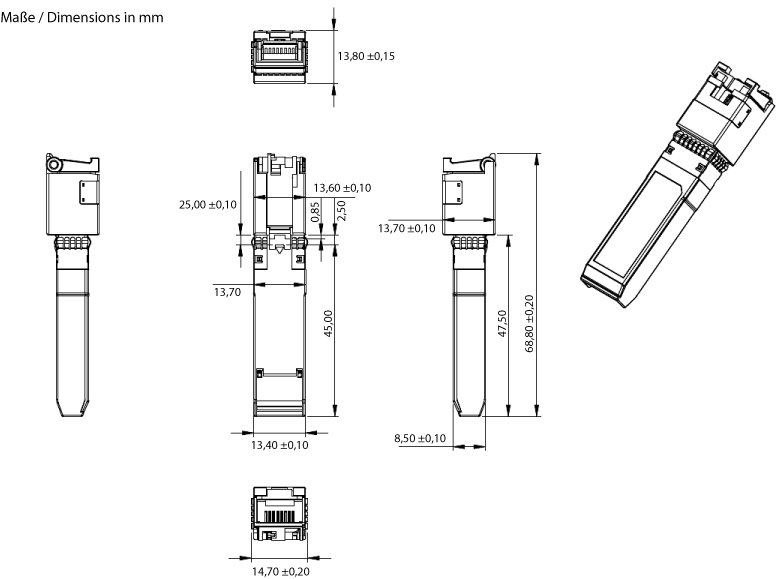

Technical Drawing
Manual PDF | 267 kB
Quick reference guide for this product (multilingual)
Manual PDF | 267 kB
Quick reference guide for this product (multilingual)
Hi-Res images ZIP | 36.7 kB
Product image in a high resolution
Declaration of conformity PDF | 150.5 kB
Declaration of conformity (german and english)
