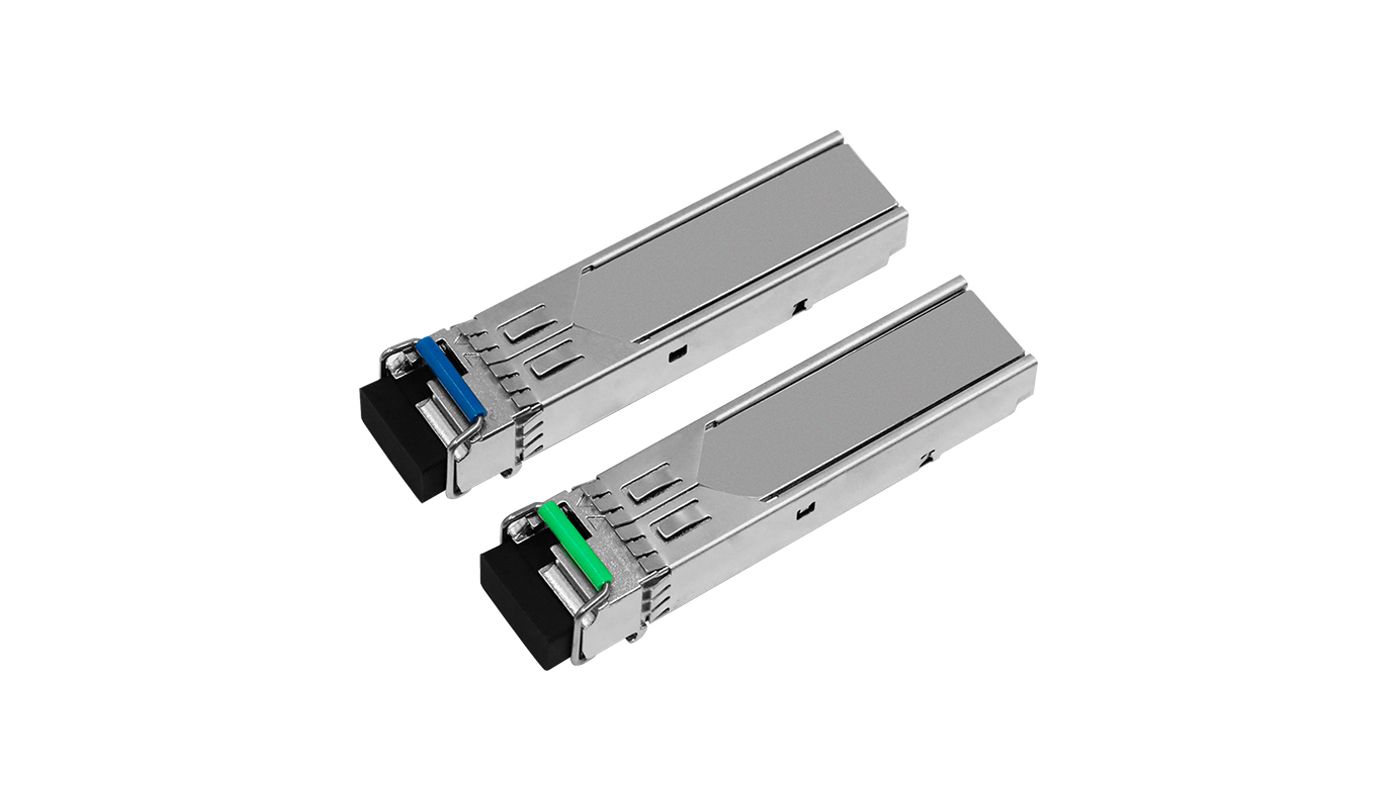

eneo NSFP-3000SLC
SKU
242374
SFP Modul Pair, 1,25Gbps, 3KM, Simplex LC, Tx/Rx at 1310/1550nm, SFP MSA-compliant, Digital Monitoring
Main Features
1250 Mbps data rate via single-mode fiber
BIDI design for single-fiber use(1310/1550 nm)
Up to 3 km range on 9/125 μm SMF
LC optical connector
Compliant with SFP MSA & SFF-8472
Digital Diagnostics (DDM/DOM) integrated
Single +3.3V power supply required
Metal housing reduces EMI interference
Wide temp. range: -40°C to +85°C (industrial)
TX fault and LOS detection supported
Low power consumption (max. 300 mA)
RoHS compliant and lead-free assembly
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242374
- Brand
- ENEO
Recording
- Mode
- Single Mode
Interfaces / Inputs/ Outputs
- Fiber Optic Connectors
- Duplex LC
General
- Design
- Module
- Dimensions (WxHxD) (extended)
- 14,5x12,5x56,3mm
- Weight
- 37.47 kg
- Reach
- 3 km
- Type
- SFP Module
- Temperature Range (Operating)
- -40°C ~ +85°C
- Wavelength
- 1310nm, 1550nm
- Application environment
- inside
- Number of fibers
- 1
- Transmission medium
- Glass fibre
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Manual JPG | 72.5 kB

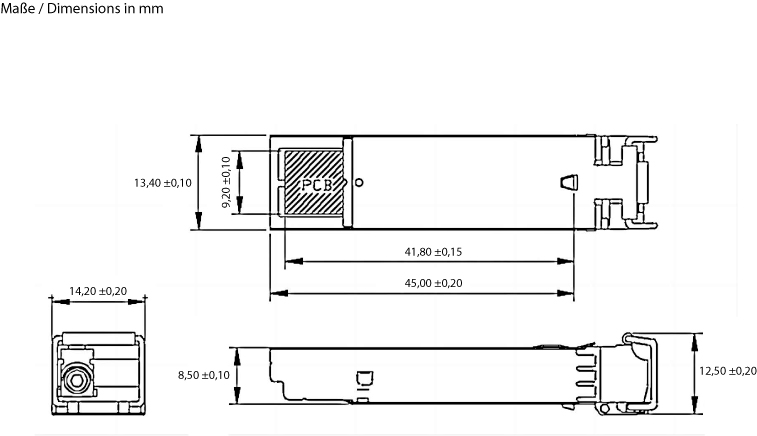

- Technical Drawing
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Hi-Res images ZIP | 33.6 kB
- Product image in a high resolution
- Declaration of conformity PDF | 131.4 kB
- Declaration of conformity (german and english)
