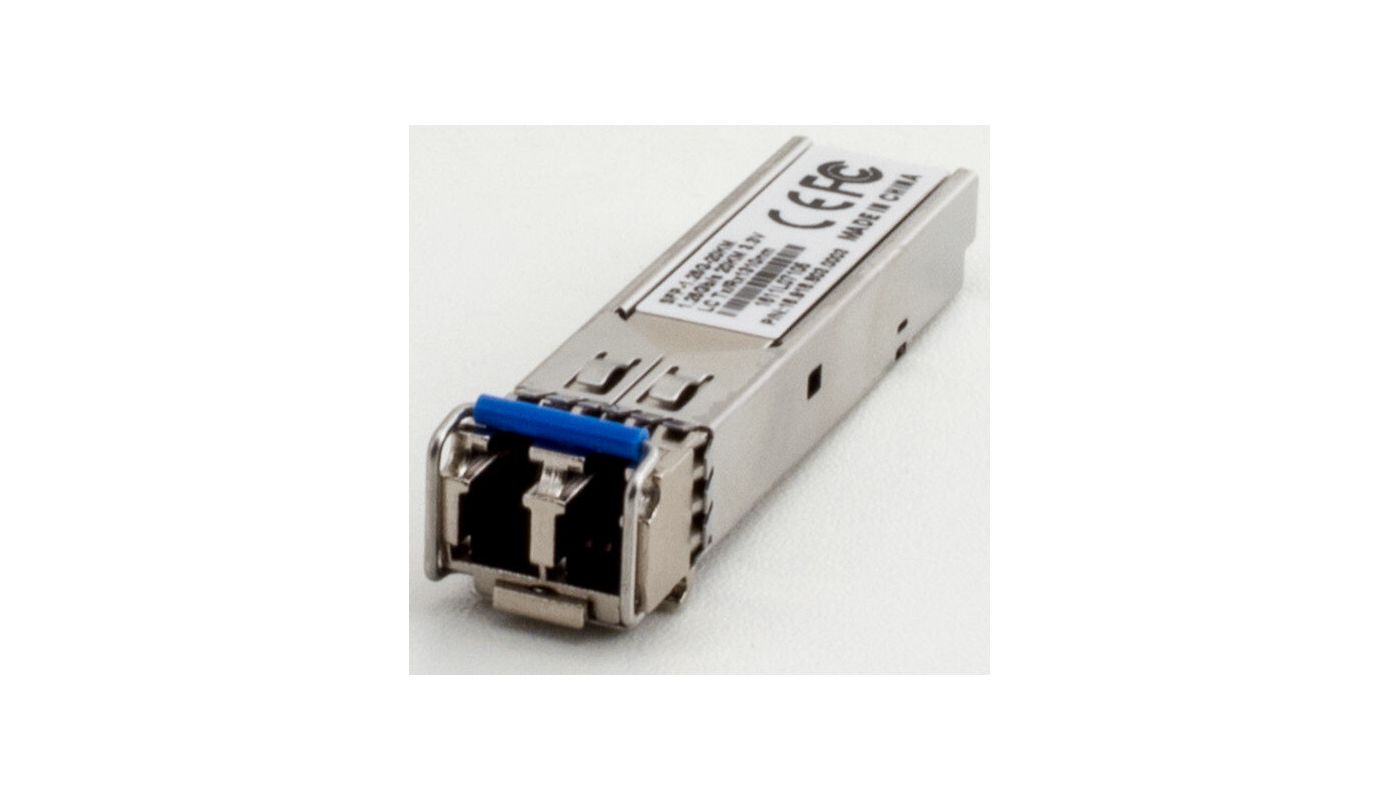

SFP-0850M40
SFP Modul, 1,25Gbps, 550m, Multimode, 850nm, Duplex LC Connector, -40° ~ +70°C
Art. No.
218758
- Compatible to IEEE802.3z Gigabit Ethernet Standard
- Bandwith 1,25Gbps
- Industry standard small form pluggable (SFP) package
- Duplex LC connector, 850nm
- Differential LVPECL inputs and outputs
- Single power supply 3.3V
- Temperature range -40°~ +70°
- Hot Pluggable
- Class 1 laser product complies with EN 60825-1
- Distance 50/125 µm MMF 550m
| Operation mode | multi mode |
|---|---|
| Interfaces / Inputs/ Outputs: | |
| Fiber optic connector | Duplex LC |
| General: | |
| Weight | 17g |
| Model | module |
| Range | 550 m |
| Type | SFP-Modul |
| Operating temperature | -40°C ~ +75°C |
| Wavelength | 850nm |
| Application | indoor |
| Number of fibers | 2 |
| Transmission medium | optical fiber |
