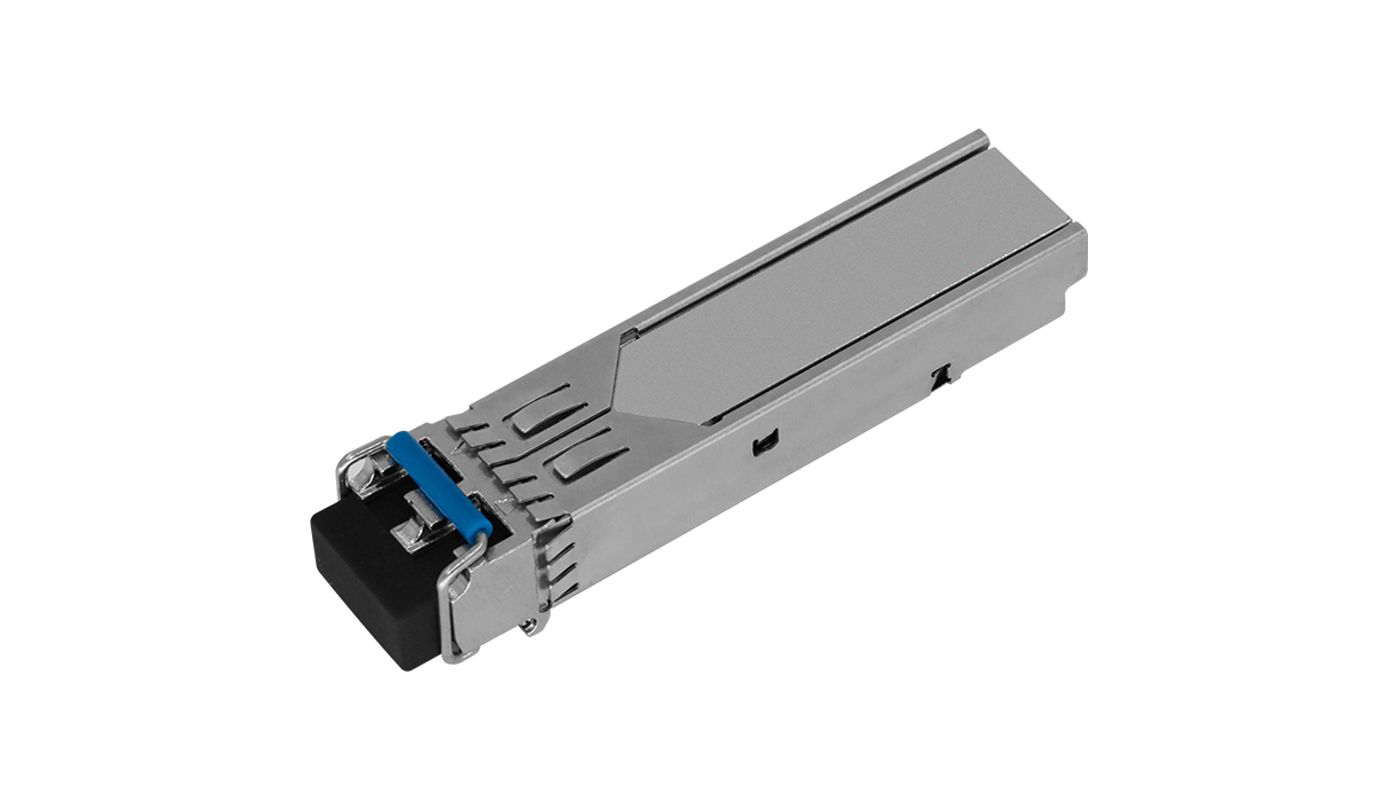

eneo NSFP-20000DLC
SKU
242377
SFP Module, 1.25 Gbps, 20KM, Duplex LC, Tx/Rx at 1310 nm, hot-plug, SFP MSA-compliant, Digital Monitoring
Main Features
1250 Mbps data rate on 9/125 µm SMF
Dual-fiber design (separate TX and RX fibers)
Up to 20 km range (single-mode fiber)
LC optical connector
Compliant with SFP MSA & SFF-8472
Integrated Digital Diagnostics Monitoring (DDM)
Wide temp. range: -40°C to +85°C (industrial)
Single 3.3V power supply
Metal housing for low EMI interference
TX fault and Loss of Signal (LOS) alerts
Low power consumption (< 300 mA)
RoHS compliant and lead-free
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242377
- Brand
- ENEO
Recording
- Mode
- Single Mode
Interfaces / Inputs/ Outputs
- Fiber Optic Connectors
- Duplex LC
General
- Design
- Module
- Dimensions (WxHxD) (extended)
- 14,2x12,5x56,3mm
- Weight
- 0.17 kg
- Reach
- 20 km
- Type
- SFP Module
- Temperature Range (Operating)
- -40°C ~ +85°C
- Wavelength
- 1310nm
- Application environment
- inside
- Number of fibers
- 2
- Transmission medium
- Glass fibre
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Manual JPG | 66.5 kB
- Technical Drawing
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Hi-Res images ZIP | 20.6 kB
- Product image in a high resolution
- Declaration of conformity PDF | 131.2 kB
- Declaration of conformity (german and english)
