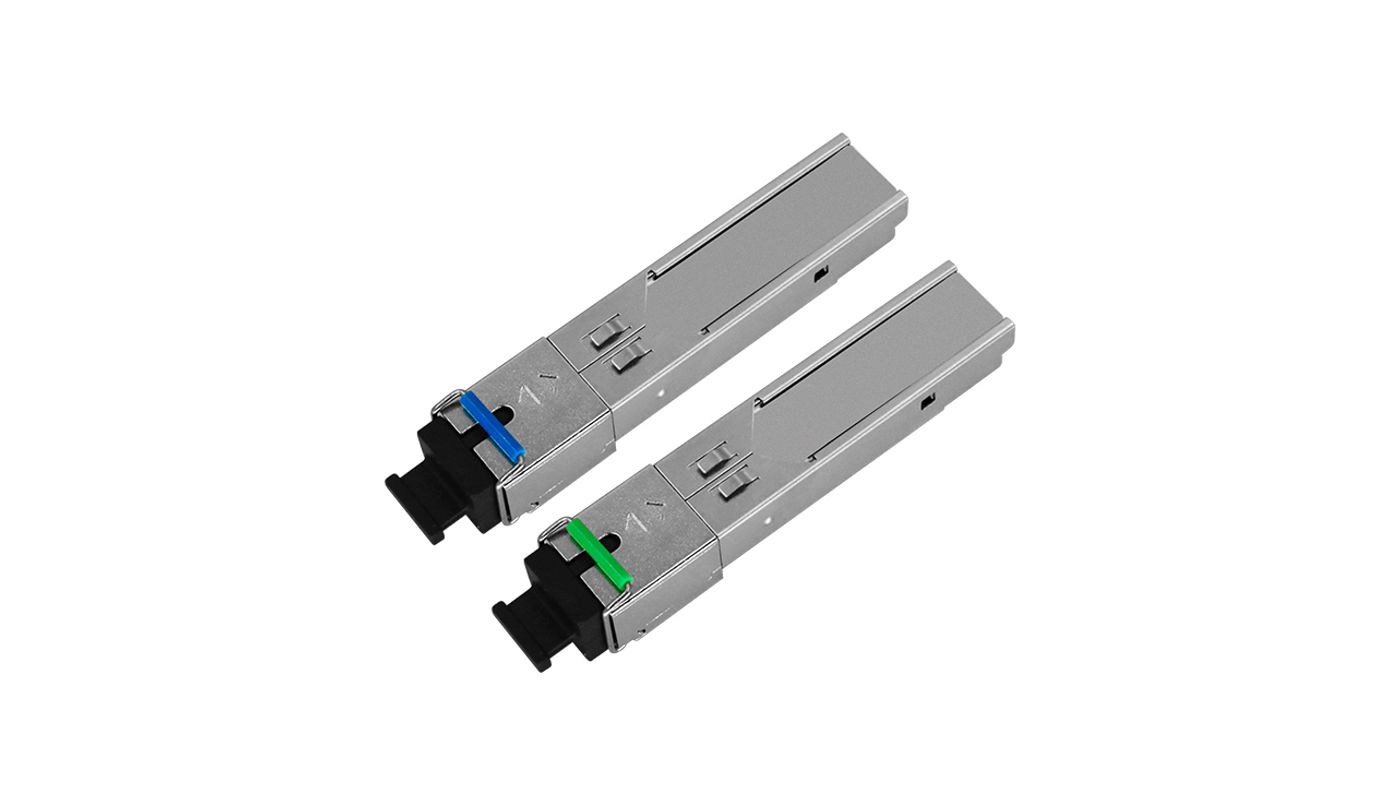

eneo NSFP-20000SSC
SKU
242375
SFP Modul Pair, 1,25Gbps, 20KM, Simplex SC, Tx/Rx at 1310/1550nm, SFP MSA-compliant, Digital Monitoring
Main Features
1250 Mbps data rate via single-mode fiber
BIDI design for single-fiber use (1310/1550 nm)
Up to 20 km range on 9/125 μm SMF
SC optical connector
Compliant with SFP MSA & SFF-8472
Digital Diagnostics (DDM/DOM) integrated
Single +3.3V power supply required
Metal housing reduces EMI interference
Wide temp. range: -40°C to +85°C (industrial)
TX fault and LOS detection supported
Low power consumption (max. 300 mA)
RoHS compliant and lead-free assembly
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242375
- Brand
- ENEO
Recording
- Mode
- Single Mode
General
- Design
- Module
- Dimensions (WxHxD) (extended)
- 13,8x13,75x65,2mm
- Weight
- 43 kg
- Reach
- 20 km
- Type
- SFP Module
- Temperature Range (Operating)
- -40°C ~ +85°C
- Wavelength
- 1310nm
- Application environment
- inside
- Number of fibers
- 2
- Transmission medium
- Glass fibre
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Manual JPG | 71 kB

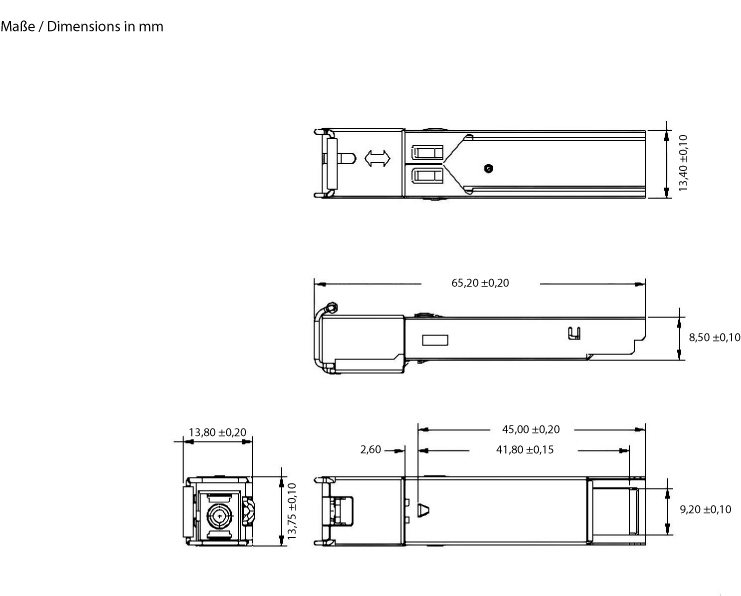

- Technical Drawing
- Manual PDF | 393.4 kB
- Quick reference guide for this product (multilingual)
- Hi-Res images ZIP | 26.4 kB
- Product image in a high resolution
- Declaration of conformity PDF | 131.4 kB
- Declaration of conformity (german and english)
