SFP-1310M40
SKU
216478

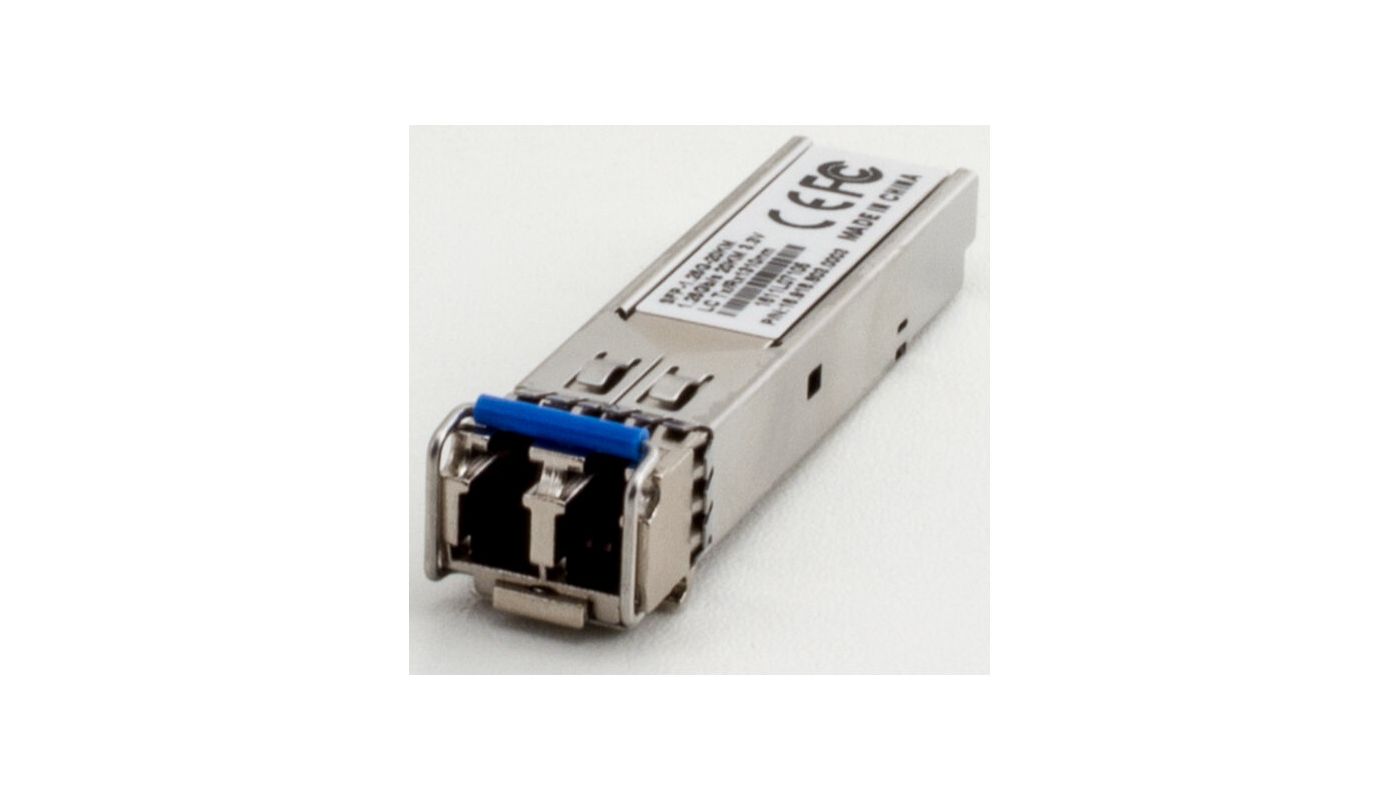

SFP Modul, 1.25Gbps, 550m, Multimode, 1310nm, Duplex LC Connector, -40°~+75°C
Main Features
Compatible to IEEE802.3z Gigabit Ethernet Standard
Bandwith 1,25Gbps
Industry standard small form pluggable (SFP) package
Duplex LC connector, 1310nm
Differential LVPECL inputs and outputs
Single power supply 3.3V
Hot Pluggable
Class 1 laser product complies with EN 60825-1
Distance 50/125 µm MMF 550m
Temperature range -40° ~ +70° C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Interfaces / Inputs/ Outputs:
- Fiber optic connector
- Duplex LC
- General:
- Brand
- ENEO
- Weight
- 17g
- Range
- 550 m
- Type
- SFP-Modul
- Operating temperature
- -40°C ~ +75°C
- Wavelength
- 1310nm
- Application
- indoor
- Number of fibers
- 2
- Transmission medium
- optical fiber
- Parts supplied:
- Operation mode
- multi mode
- Manufacturer order number
- 216478
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Declaration of Conformity in German and English
