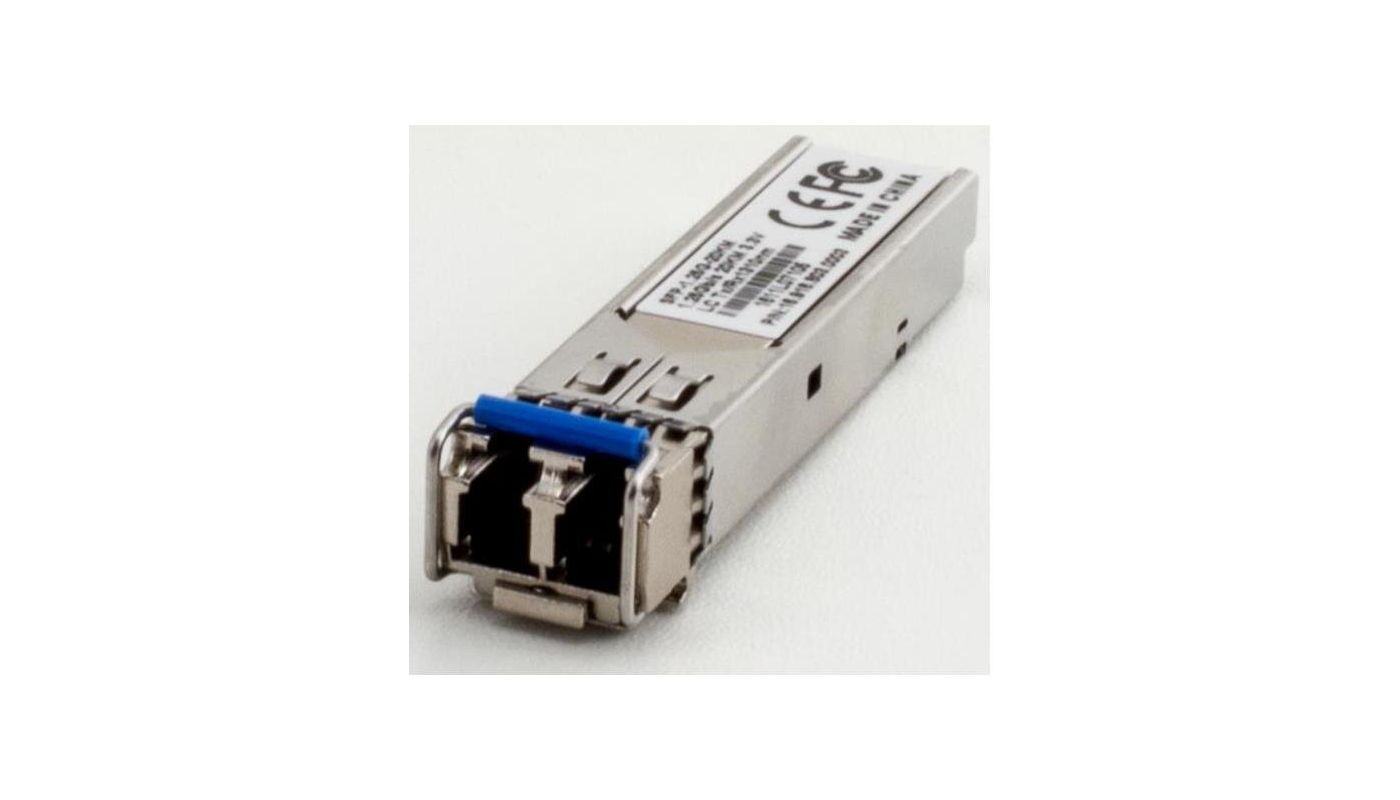

SFP-1310S10-10G

SFP Modul, 10Gbps, 10km, Singlemode, 1310nm, Duplex LC Connector, -5°~+70°C
Art. No.
218760
  • Optical interface compliant to IEEE 802.3ae 10GBASE-SR
  • Bandwith 10G
  • Industry standard small form pluggable (SFP) package
  • Duplex LC connector, 1310nm
  • Single power supply 3.3V, Hot Pluggable
  • Distance SMF 10km
  • 1310nm HTEL transmitter, PIN photo-detector
  • Operating case temperature -5°~+70°
  • Temperaturbereich -5°~+70°
Specifications
Operation mode single mode
Interfaces / Inputs/ Outputs:
Fiber optic connector Duplex LC
General:
Weight 17g
Range 10 km
Type SFP-Modul
Operating temperature -5°C ~ +70°C
Wavelength 1310nm
Application indoor
Number of fibers 2
Transmission medium optical fiber
Downloads
Documents PDF Data sheet with specifications, generated live from the product database
Documents PDF Quick reference guide for this product en
Documents PDF Declaration of Conformity in German and English
Media ZIP Product Image in a high resolution for print
