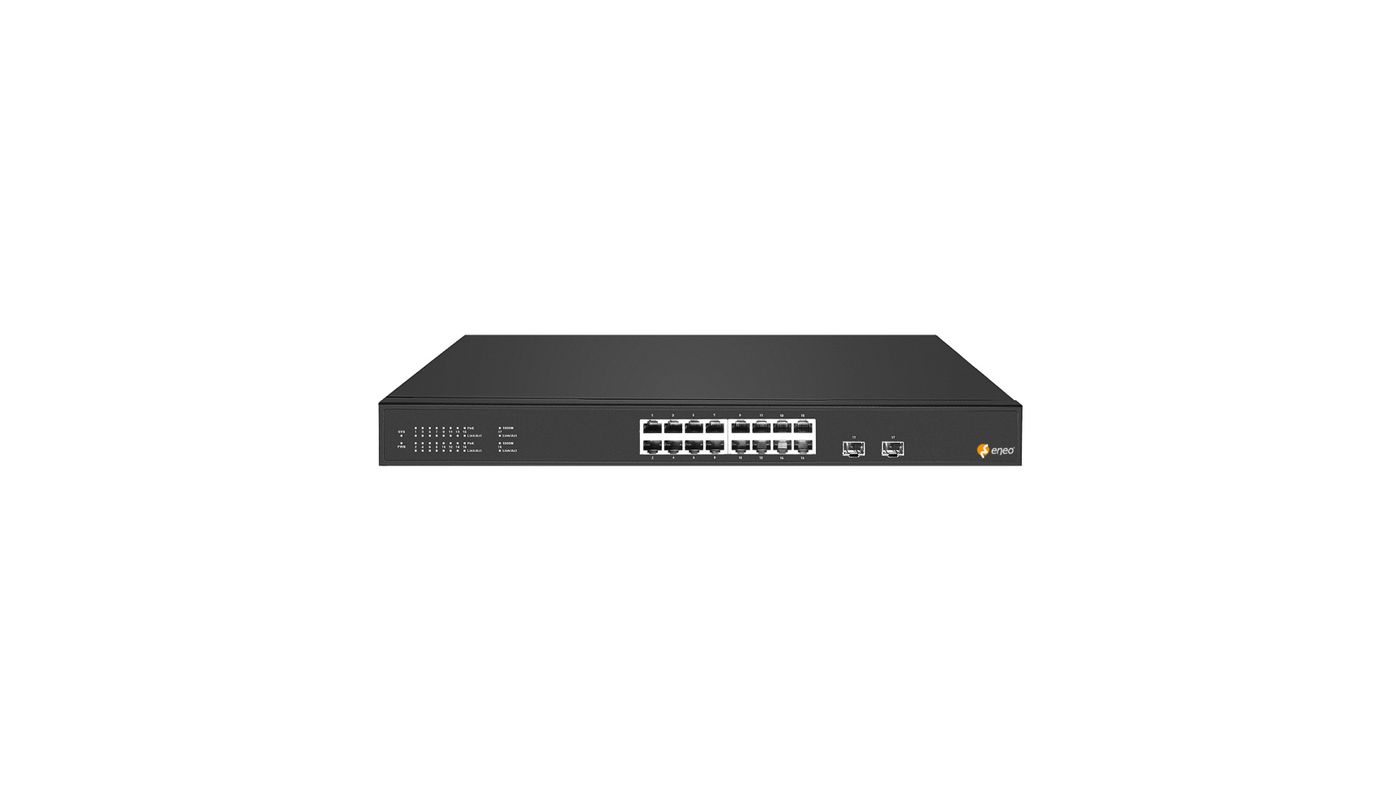

eneo NSUR-1016M0A
SKU
242364
Gigabit Switch Rack, Unmanaged, 16x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 250W
Main Features
16 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber uplink
16 PoE+ ports, up to 30W per port
Total PoE budget: up to 225 Watts
Supports IEEE 802.3af/at/az standards
Non-blocking wire-speed on all ports
8K MAC address table supported
Forwarding rate: up to 26.784 Mpps
Switching capacity: 36 Gbps backplane
Supports Energy Efficient Ethernet (802.3az)
Rugged 19" metal case, 440×190×44 mm
Operating temperature: 0–45°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Brand
- ENEO
- EAN/GTIN
- 4260229841563
- Manufacturer order number
- 242364
- Series
- eneo Switch
Network
- Eneo _netzwerkstandards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (Gbit)
- 36 Gbps
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
General
- Design
- Desktop
- Dimensions (WxHxD) (extended)
- 44,5x440x190mm
- ESD protection
- IEC61000-4-2, IEC61000-4-5
- Fan
- Yes
- Mounting type
- 19" Rack Installation, Desktop
- Number of PoE ports
- 16
- PoE Budget (Total)
- 225 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Temperature Range (Operating)
- 0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
- Type
- Unmanaged
- Weight
- 1.55 kg
Parts supplied
- Scope of delivery
- manual,power cord,19\" rack mount angle
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 960 kB
- Quick reference guide for this product (multilingual)
- Manual PDF | 960 kB
- Quick reference guide for this product (multilingual)
- Manual JPG | 30.9 kB
- Technical Drawing
- Marketing PDF | 242 kB
- NDAA compliant products
- Marketing PDF | 109.3 kB
- SFP compatibility overview regarding the eneo switches
- Hi-Res images ZIP | 23.8 kB
- Product image in a high resolution
- Declaration of conformity PDF | 107.6 kB
- Declaration of conformity (german and english)
