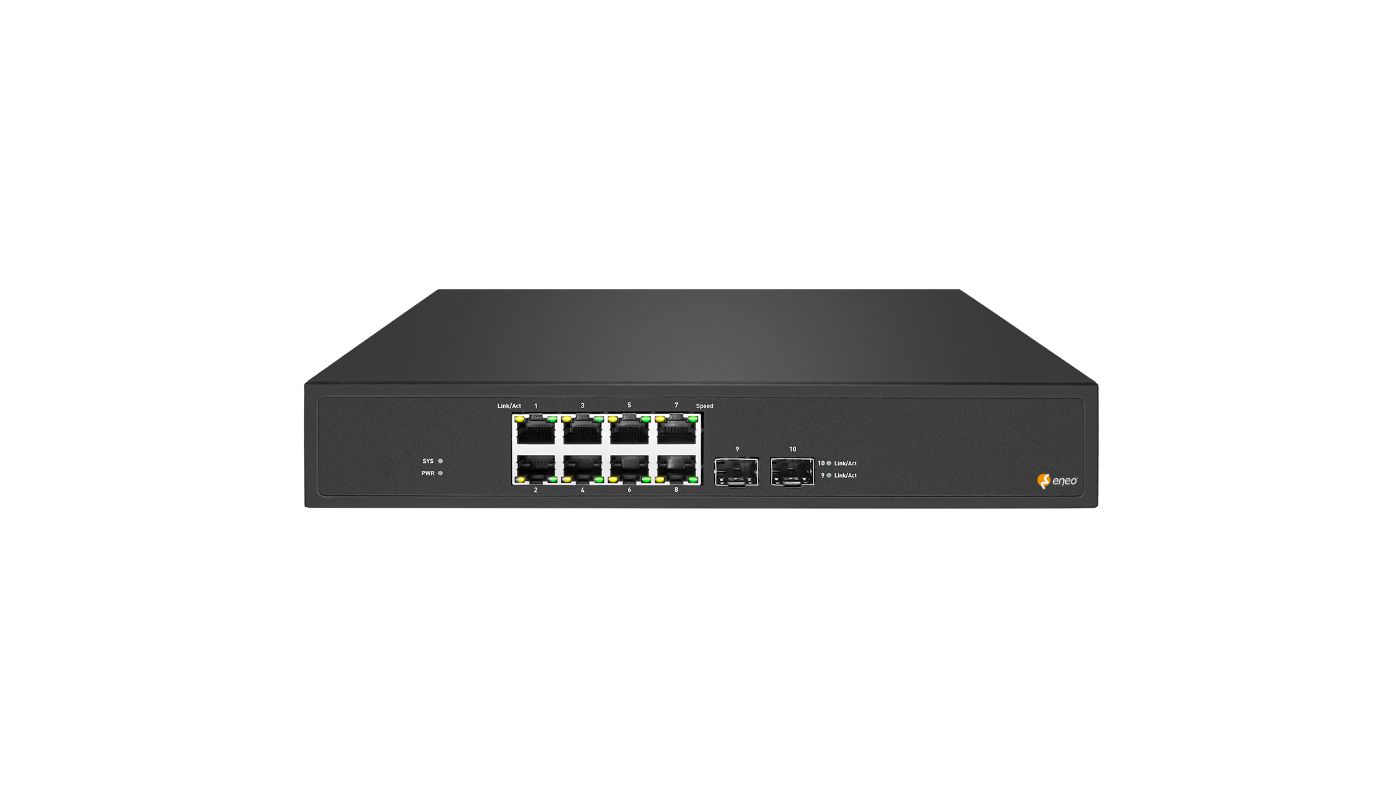

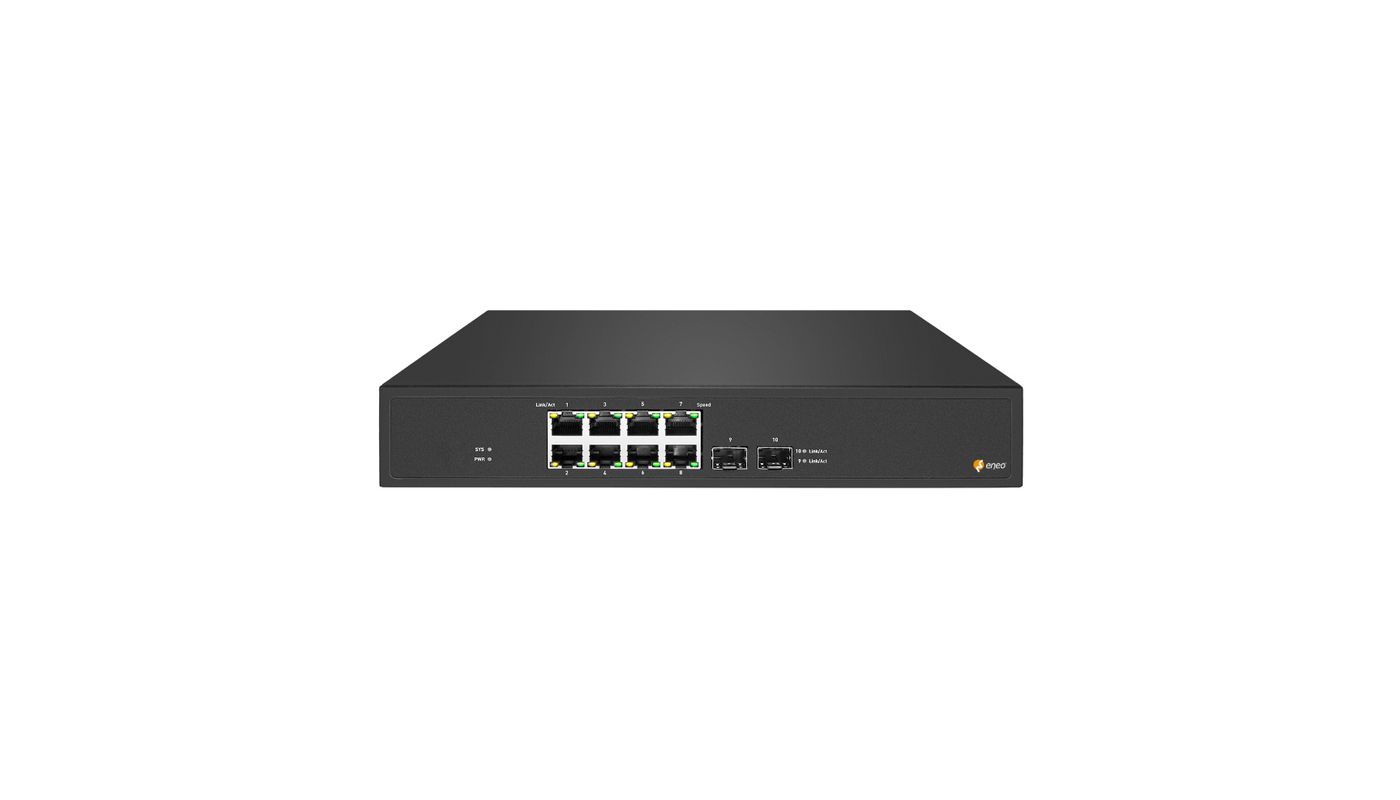

eneo NSUR-1008M0A
Main Features
More Information
- Manufacturer order number
- 242363
- Brand
- ENEO
- Series
- eneo Switch
Network
- Eneo _netzwerkstandards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
- Internal Switching Capacity (MP per second)
- 14.88 Mpps
- Internal Switching Capacity (Gbit)
- 20 Gbps
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 1000base-T
General
- Design
- Desktop
- Dimensions (WxHxD) (extended)
- 44.5x271x181.5mm
- Weight
- 0.6 kg
- Number of PoE ports
- 8
- Type
- Unmanaged
- Power consumption
- 150 W
- Fan
- No
- Management
- No
- Mounting type
- 19" Rack Installation, Desktop
- PoE Budget (Total)
- 130 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 100-240VAC
- Temperature Range (Operating)
- 0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
- Application environment
- inside
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,19\" rack mount angle,power cord
Further product information
Possible Application Examples
Video Surveillance & Security Systems
Perfect for powering multiple IP cameras via PoE while simultaneously handling data traffic over a fiber optic cable to the recording device or network center via SFP. Ideal for parking garages, outdoor areas, or large building complexes.
Office Infrastructure
Designed for modern offices where WLAN access points, VoIP phones, and network printers require PoE. The switch can power these devices directly, reducing cable clutter and eliminating the need for additional power supplies.
Smart Building / Building Technology
Control of IoT devices such as sensors, access control systems, or lighting via PoE. The robust operating range also makes it suitable for distribution cabinets or technical rooms with ambient temperatures up to 45 °C.
Event Technology / Mobile Networks
Temporary use at events, trade shows, or outdoor installations where reliable network cabling is needed with limited resources. The switch is easy to transport, set up, or integrate into rack systems.
