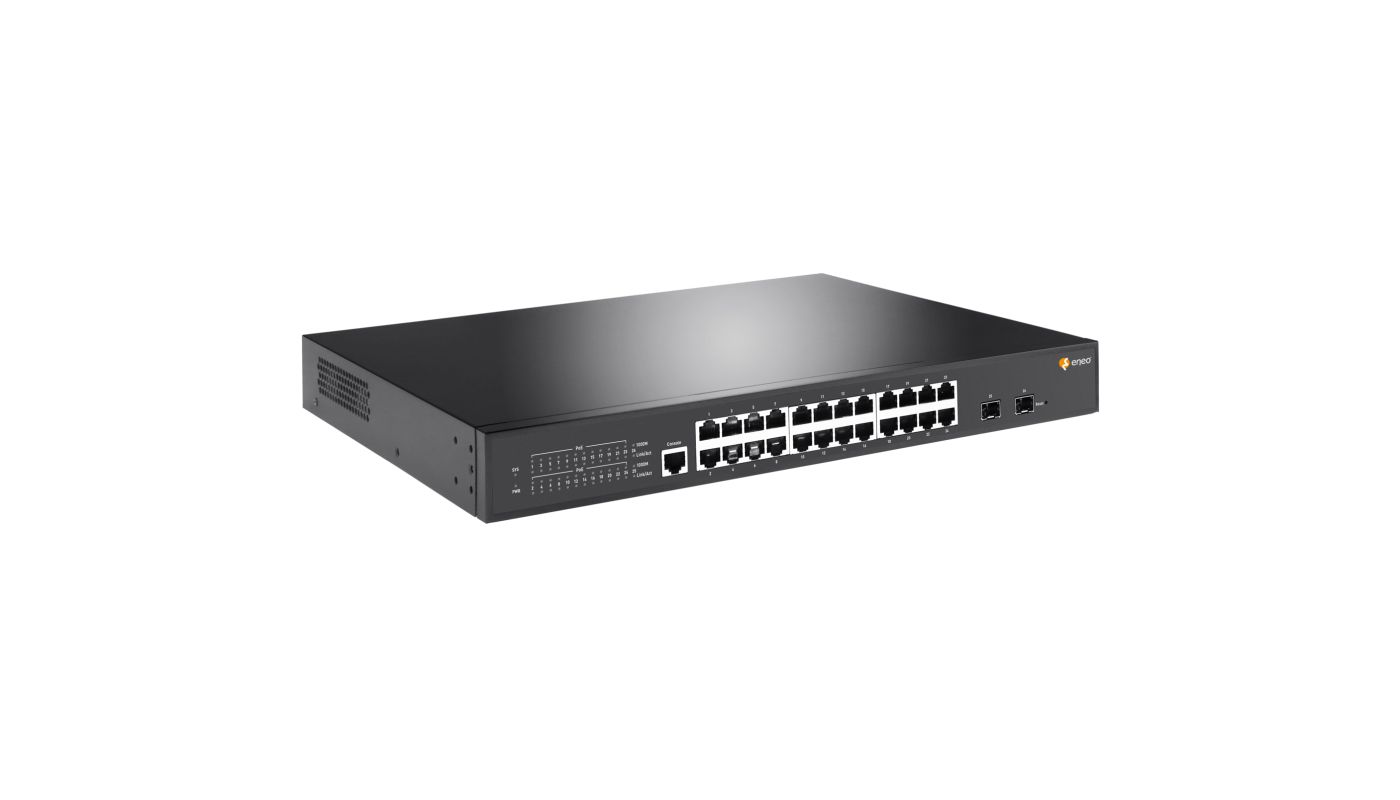

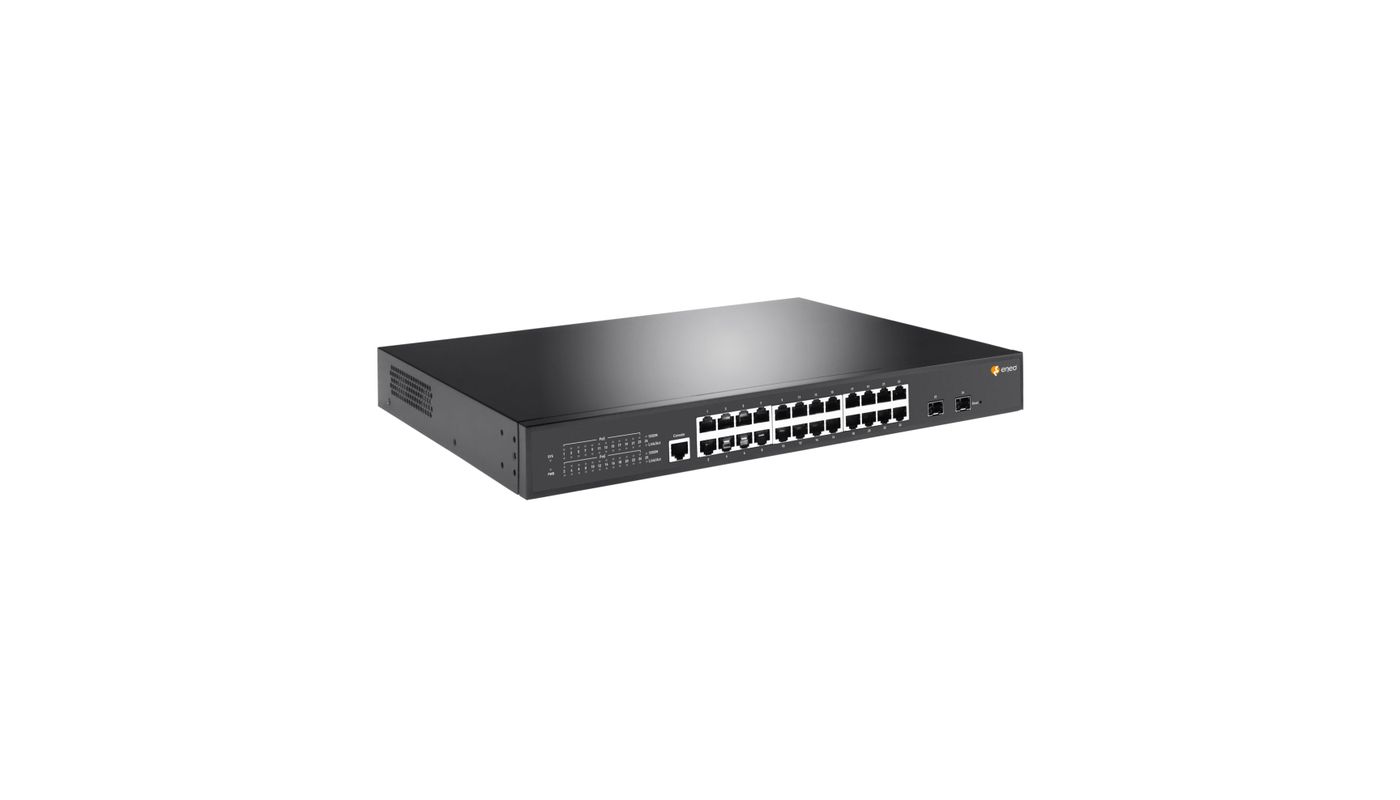

NSMR-2024M0A
SKU
242368
Gigabit Switch Rack, Managed, 24x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 400W
Main Features
24 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber optic uplink
24 PoE+ ports, each with up to 30W power
Total PoE power: up to 400 watts
Supports IEEE 802.3af/at/az standards
Noiseless operation thanks to fanless design
Supports automatic MAC address learning and aging
Supports QoS, port mirroring, and link aggregation protocol
PoE watchdog automatically detects and starts PD devices
Supports energy-efficient Ethernet (802.3az)
Robust 19" metal housing, 440×190×45 mm
Operating temperature range: 0-45°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Other
- Brand
- ENEO
- Multicast compliant
- yes
- Port mirror
- yes
- QoS
- yes, DSCP Priority, QoS, WRR
- SNMP
- yes
- Security
- Password protection, Port Isolation
- Network protocols
- RSTP, TFTP, HTTP, HTTPS, IGMP, SNMPV1, SNMPV2, SNMPV3, SNTP, QoS, DHCP
- Ethernet standards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN, IEEE 802.1x Radius network access control, IEEE 802.1p QoS, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
- Internal switching capacity (Mpps)
- 38,688Mpps
- Internal switching capacity (Gbit/s)
- 52Gbps
- VLAN
- yes
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 24x 10/100/1000Mbps, 2x 1000Mbps SFP
- Optical connector
- SFP Port
- Series
- eneo Switch

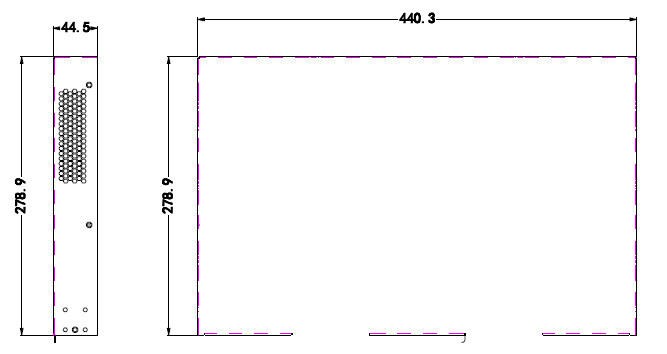

- Dimensions (HxWxD)
- 44,5x440x290mm
- Weight
- 3,15 kg
- PoE ports (number)
- 24
- Construction
- Desktop
- Type
- Smart Switch
- Blower
- no
- Management
- yes
- Mounting
- 19" rack, desktop
- PoE budget
- 400 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Supply voltage
- 100-240VAC
- Operating temperature
- 0°C ~ +45°C, @ Humidity 10%-90% (non-condensing)
- Parts supplied
- manual, power cord
- Trunk
- IEC61000-4-2, IEC61000-4-5
- Manufacturer order number
- 242368
