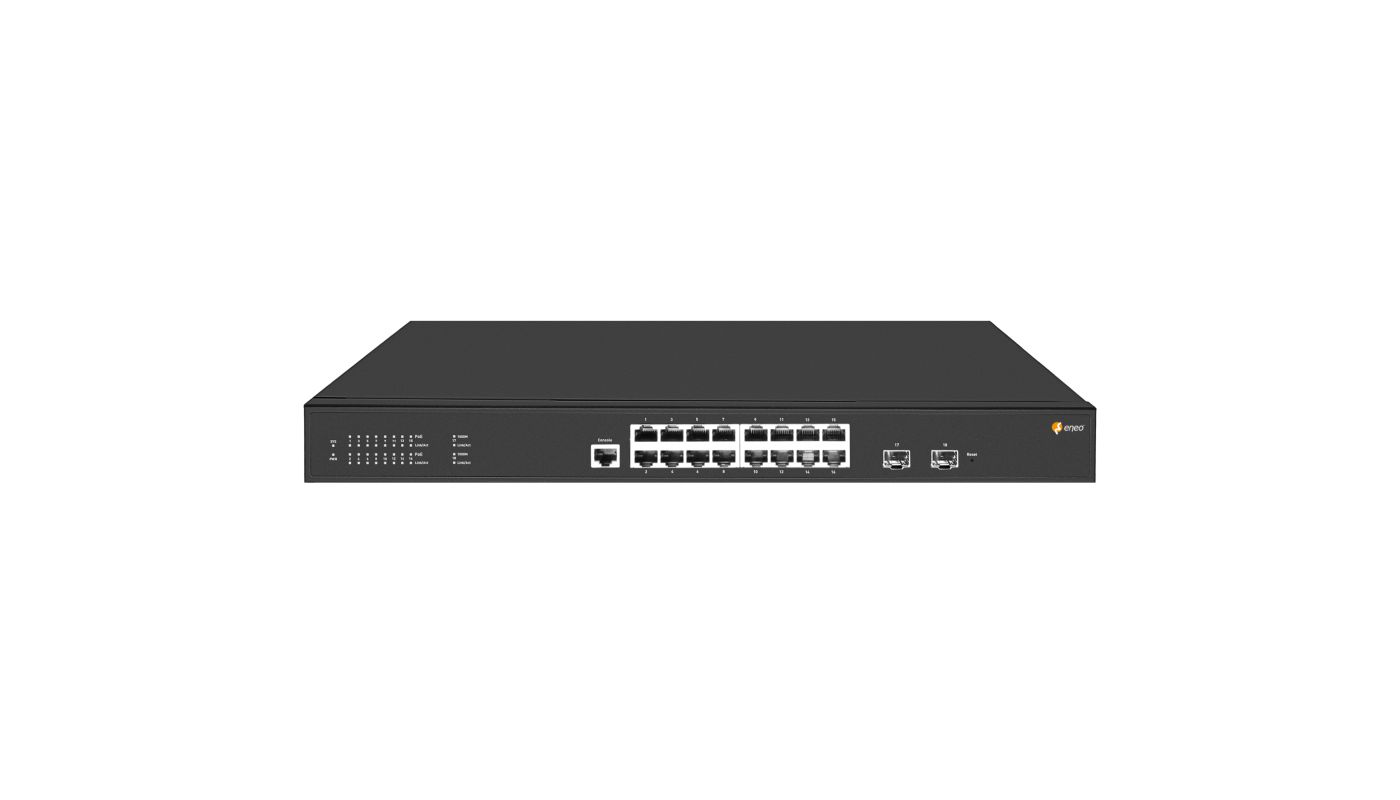

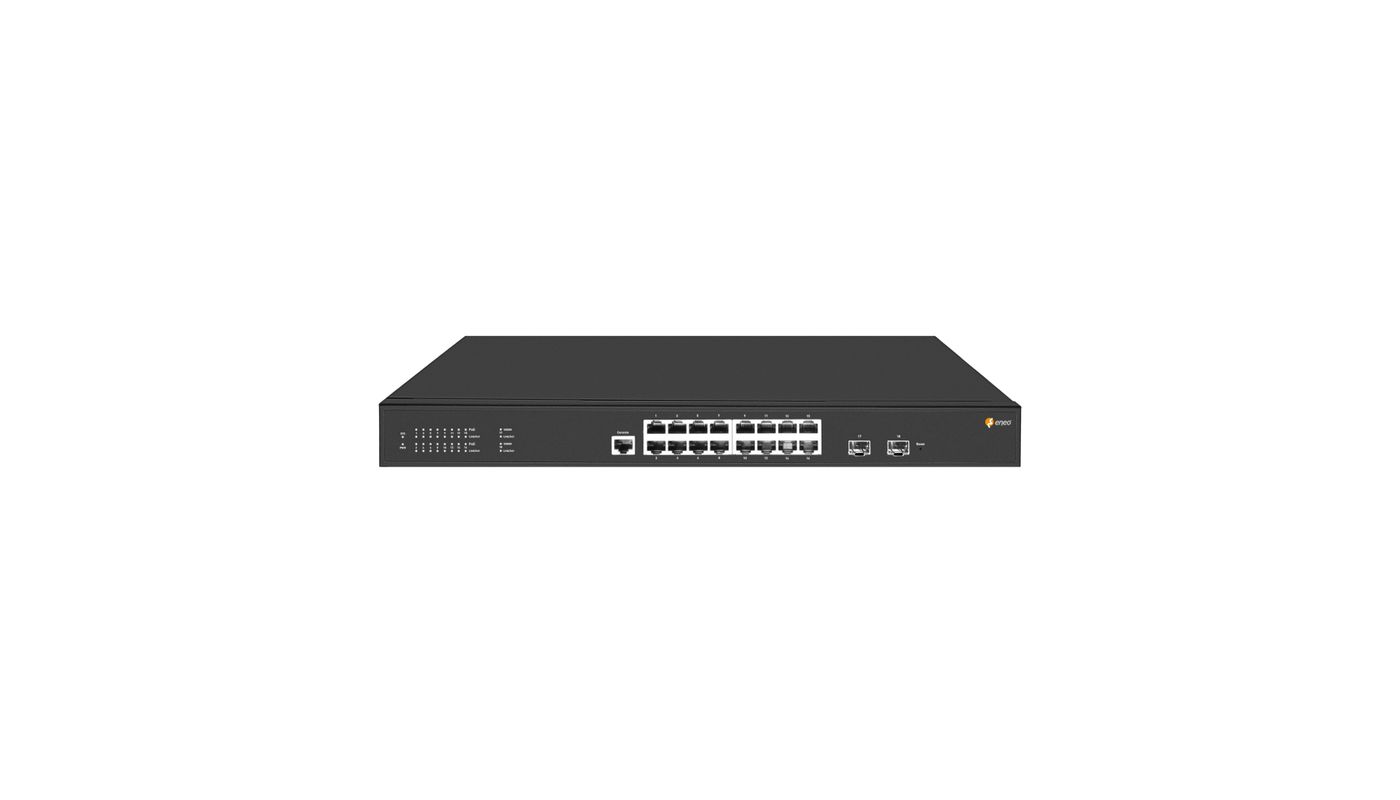

eneo NSMR-2016M0A
SKU
242367
Gigabit Switch Rack, Managed, 16x PoE, 2xSFP, max. 30W each Port, integrated Power Suppply max. 250W
Main Features
16 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber optic uplink
16 PoE+ ports, each with up to 30W power
Total PoE power: up to 225 watts
Supports IEEE 802.3af/at/az standards
Supports MAC address auto-learning and auto-aging
Supports QoS, port mirroring, and link aggregation protocol
PoE watchdog automatically detects and restarts PD devices
Supports energy-efficient Ethernet (802.3az)
Robust 19" metal housing, 440×190×45 mm
Operating temperature: 0-45°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242367
- Brand
- ENEO
- Series
- eneo Switch
Functions
- Multicast
- Yes
- QoS
- DSCP Priority, QoS, WRR
Network
- Security
- Password, Port Isolation
- Eneo _netzwerkstandards
- IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (Gbit)
- 36 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
General
- Design
- Desktop
- Dimensions (WxHxD) (extended)
- 44,5x440x180mm
- Weight
- 3.3 kg
- Number of PoE ports
- 16
- Type
- Smart Switch
- Fan
- Yes
- Management
- Yes
- Mounting type
- 19" Rack Installation, Desktop
- PoE Budget (Total)
- 225 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Temperature Range (Operating)
- 0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,power cord
