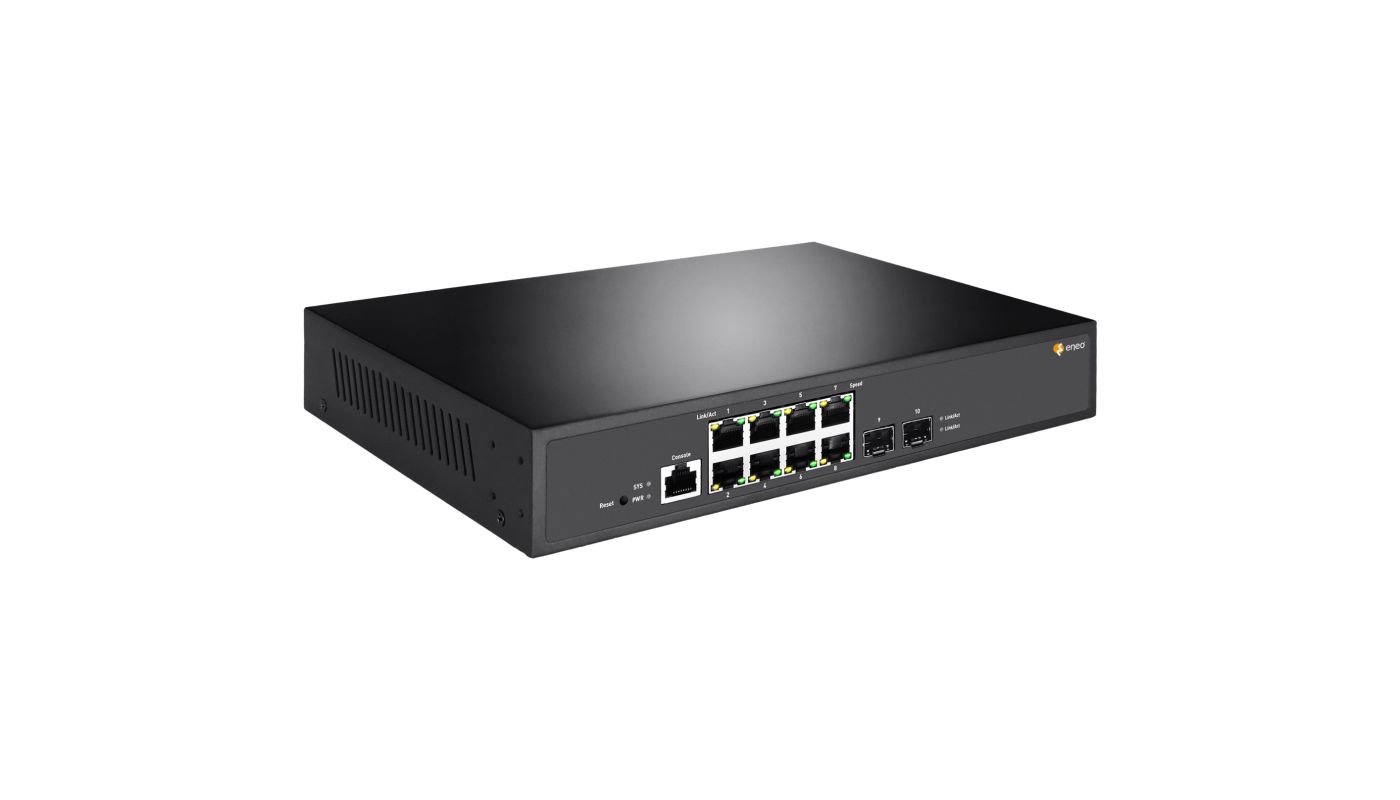

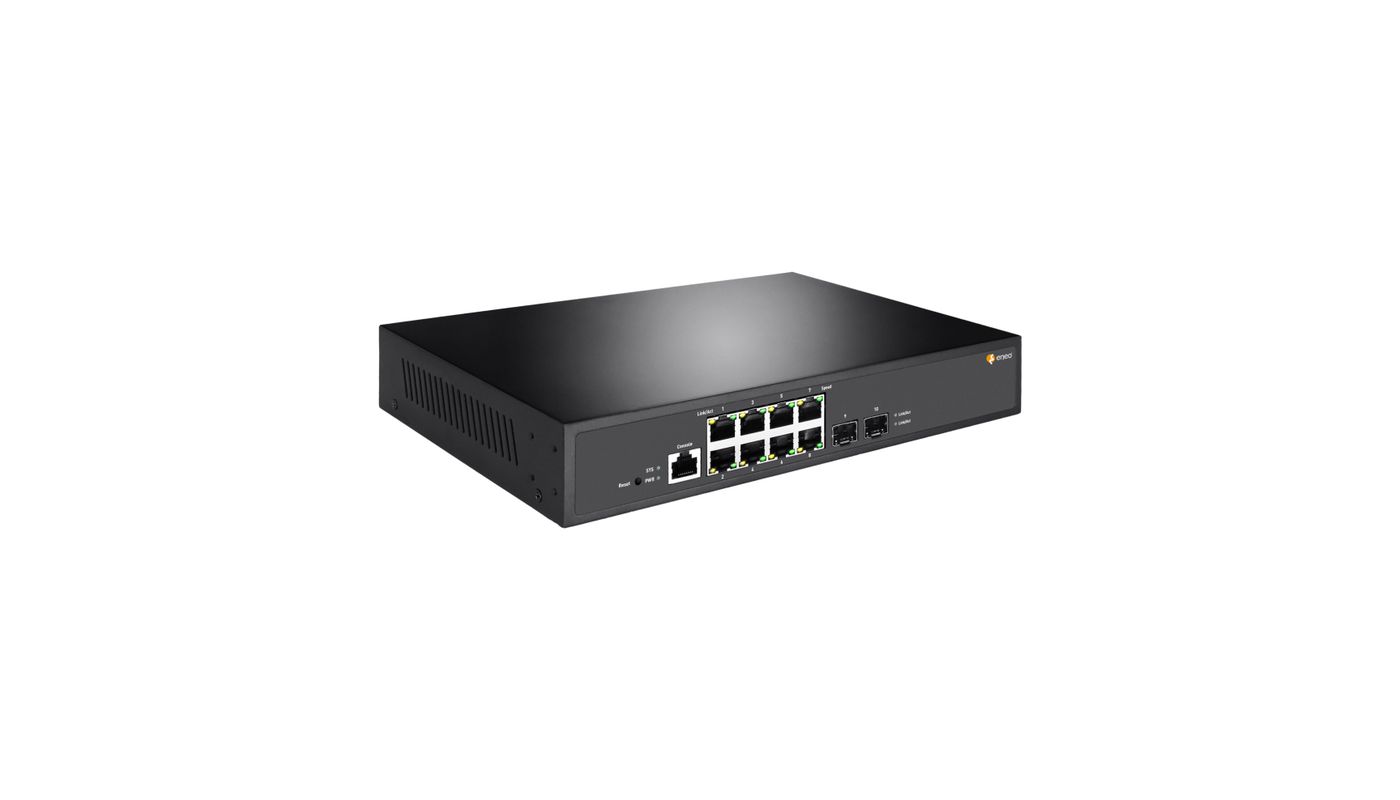

NSMR-2008M0A
SKU
242366
Gigabit Switch Rack, Managed, 8x PoE, 2xSFP, max. 30W each Port, internal Power Supply max. 150W
Main Features
8 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber optic uplink
8 PoE+ ports, each with up to 30W power
Total PoE power: up to 150 watts
Supports IEEE 802.3af/at/az standards
Silent operation thanks to fanless design
Supports MAC address auto-learning and auto-aging
Supports QoS, port mirroring, and link aggregation protocol
PoE watchdog automatically detects and restarts PD devices
Supports energy-efficient Ethernet (802.3az)
Robust 19" metal housing, 271×182×45 mm
Operating temperature: 0-45°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Other
- Brand
- ENEO
- Multicast compliant
- yes
- Port mirror
- yes
- QoS
- yes, DSCP Priority, QoS, WRR
- SNMP
- yes
- Security
- Password protection, Port Isolation
- Network protocols
- RSTP, TFTP, HTTP, HTTPS, IGMP, SNMPV1, SNMPV2, SNMPV3, SNTP, QoS, DHCP
- Ethernet standards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN, IEEE 802.1x Radius network access control, IEEE 802.1p QoS, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
- Internal switching capacity (Mpps)
- 14,88Mpps
- Internal switching capacity (Gbit/s)
- 20 Gbps
- VLAN
- yes
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 2x 1000Mbps SFP, 8x 10/100/1000Mbps
- Optical connector
- SFP Port
- Series
- eneo Switch
- Dimensions (HxWxD)
- 44,5x271x181,5mm
- Weight
- 1.35kg
- PoE ports (number)
- 8
- Construction
- Desktop
- Type
- Smart Switch
- Blower
- no
- Management
- yes
- Mounting
- 19" rack, desktop
- PoE budget
- 150 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Supply voltage
- 100-240VAC
- Operating temperature
- 0°C ~ +45°C, @ Humidity 10%-90% (non-condensing)
- Parts supplied
- manual, power cord
- Trunk
- IEC61000-4-2, IEC61000-4-5
- Manufacturer order number
- 242366
