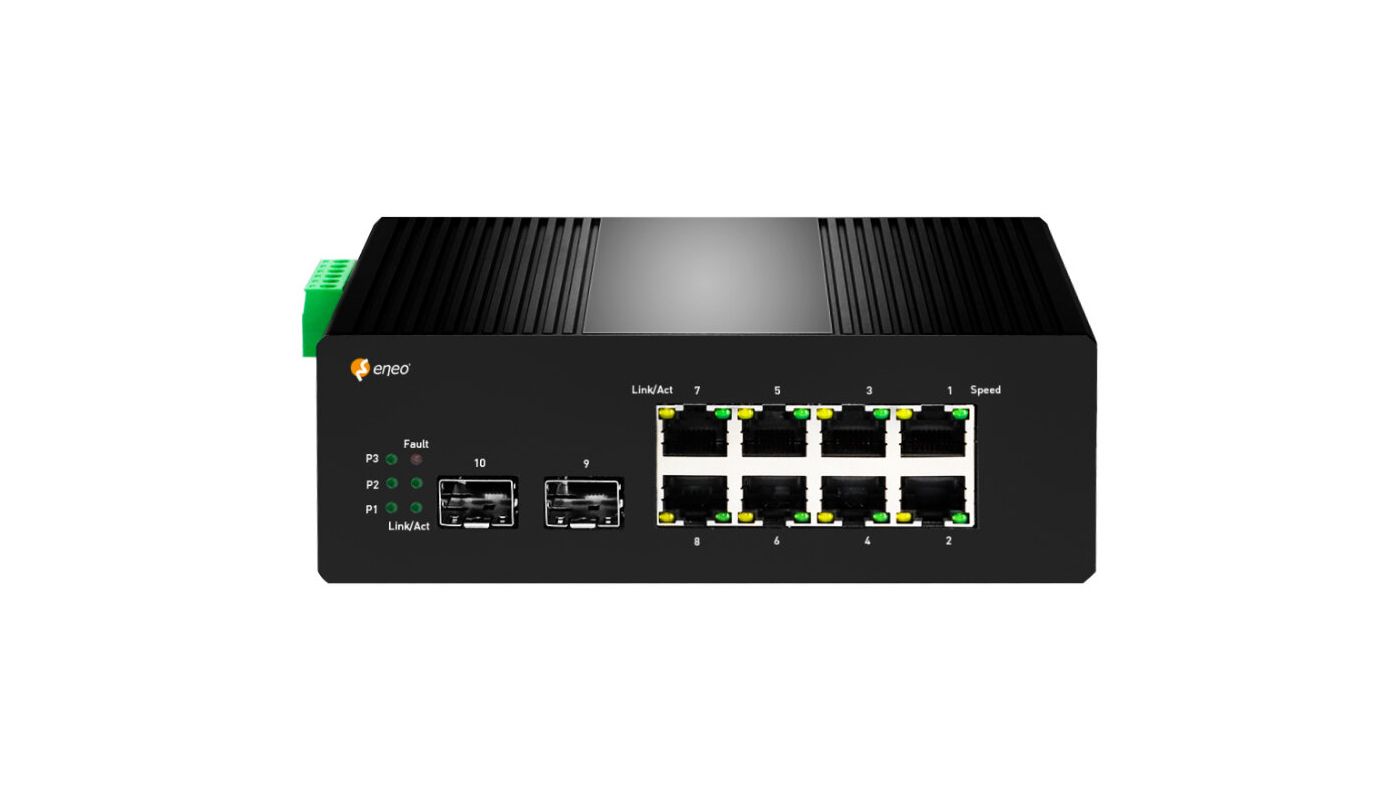

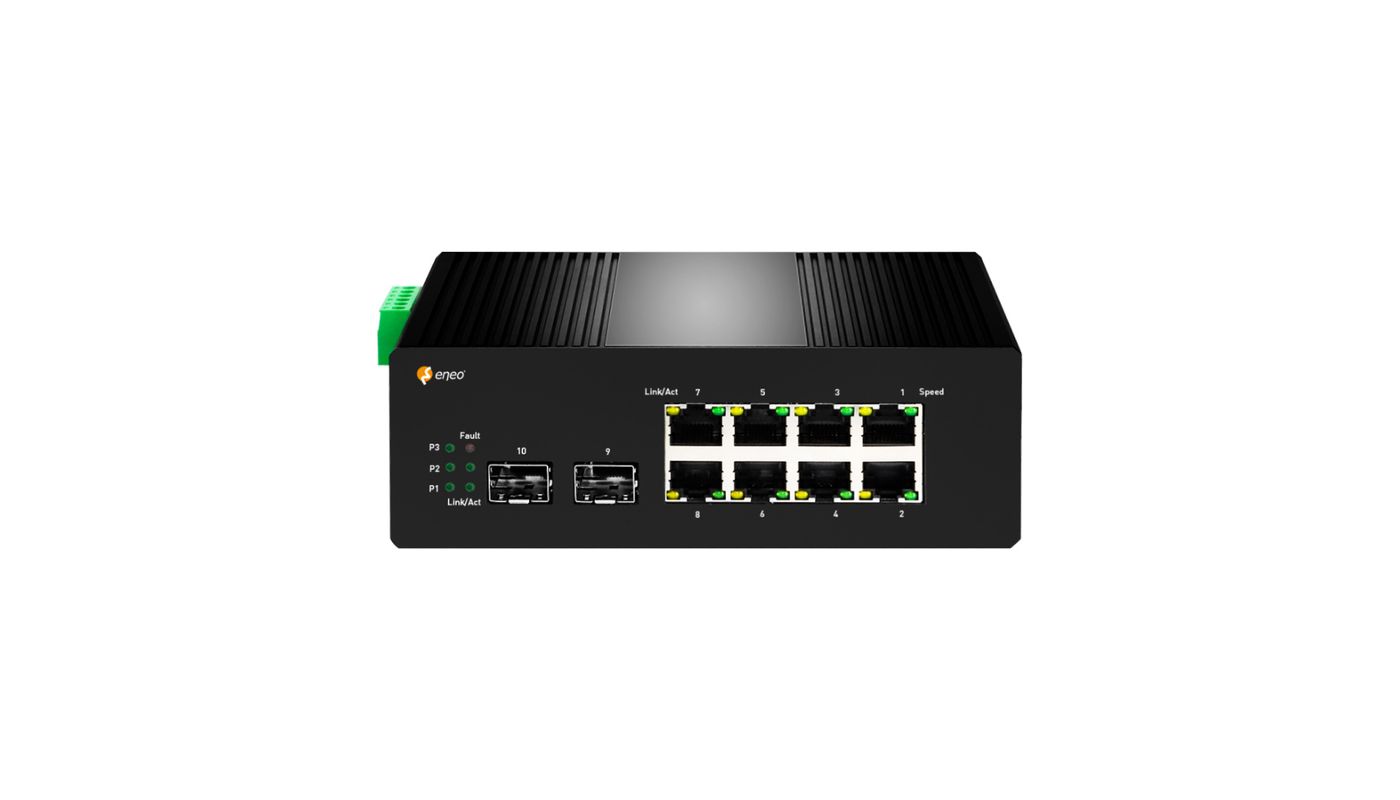

eneo NSMI-4008M0A
SKU
242372
Gigabit Switch Industrial, Managed, 8x PoE, 2xSFP, 30W each Port, -40°C~75°C, 44~57 VDC, w/o power supply
Main Features
8 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber optic uplink
8 PoE+ ports, each with up to 30W power
Total PoE power: up to 240 watt,
depending on the connection
Supports IEEE 802.3af/at standards
High EMC protection level
Supports VLAN, ACL, and ERPS ring network
Redundant power supply 44-57VDC
Robust IP30 housing, DIN-RAIL or wall mounting
Operating temperature range: -40-75°C
Power supply not included
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242372
- Brand
- ENEO
- Series
- eneo Switch
Functions
- Multicast
- Yes
- QoS
- DSCP Priority, QoS, WRR
Network
- Security
- Fast Ring, Password, Port Isolation, Radius Authentication
- Eneo _netzwerkstandards
- IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (MP per second)
- 14.88 Mpps
- Internal Switching Capacity (Gbit)
- 20 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
General
- Design
- DIN Rail Module
- Dimensions (WxHxD) (extended)
- 50x149,2x122mm
- Weight
- 0.75 kg
- Number of PoE ports
- 8
- Type
- Smart Switch
- Power consumption
- 10 W
- Fan
- No
- Management
- Yes
- Mounting type
- DIN Rail, Wall
- PoE Budget (Total)
- 240 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 44-57VDC
- Temperature Range (Operating)
- -40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,1x DIN Rail
Notes
- Remark
- No power supply included. A suitable,optionally available power supply must be used to achieve the full specified PoE budget value.
Further product information
Application: The industrial PoE switch is ideal for small to mid-sized video surveillance setups in demanding environments. Its fanless design, wide temperature range (-40–75 °C), and redundant DC input make it suitable for industrial sites, outdoor use, and transportation systems. The plug-and-play setup enables quick and simple deployment.
External Power Supply: The recommended standard power depends on the performance of the external power supply unit in industrial quality. This product has 8 PoE ports. In terms of compatibility with a 60W power supply, the PoE power is approximately 42W. If 8 ports are set up with a 250W industrial power supply, a power output of up to 240W can be provided.
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 934.6 kB
- Quick reference guide for this product (multilingual)
- Manual JPG | 90.6 kB
- Technical Drawing
- Manual PDF | 8.4 MB
- Manual for this product (german)
- Manual PDF | 934.6 kB
- Quick reference guide for this product (multilingual)
- Manual PDF | 8.4 MB
- Manual for this product (english)
- Firmware HTML | 835 B
- Product Firmware CAD Files
- Software HTML | 914 B
- eneoSite ManagerTool
- Marketing PDF | 165.3 kB
- NDAA compliant products
- Marketing PDF | 72.2 kB
- Open Source Software License Information
- Marketing PDF | 109.3 kB
- SFP compatibility overview regarding the eneo switches
- Hi-Res images ZIP | 31.7 kB
- Product image in a high resolution
- Declaration of conformity PDF | 131.3 kB
- Declaration of conformity (german and english)
