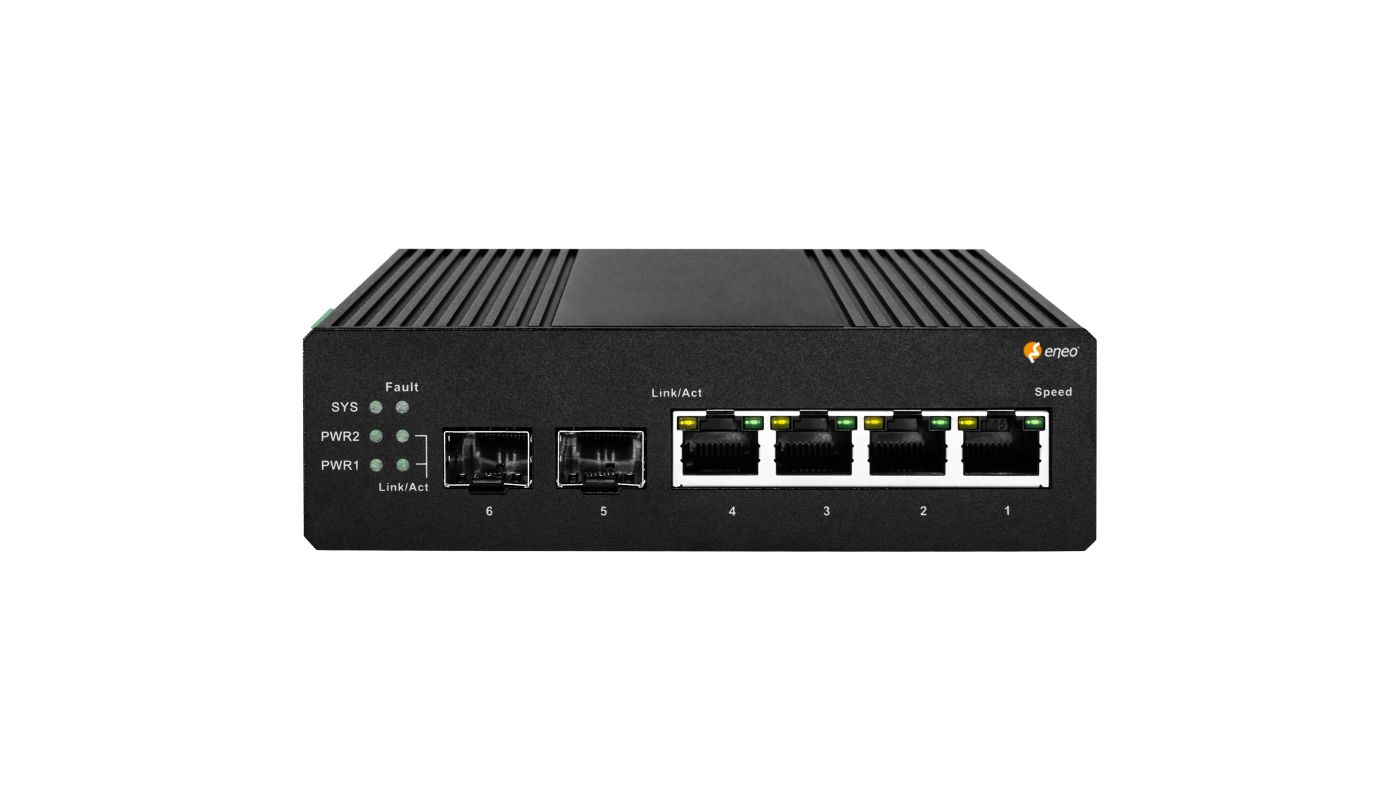

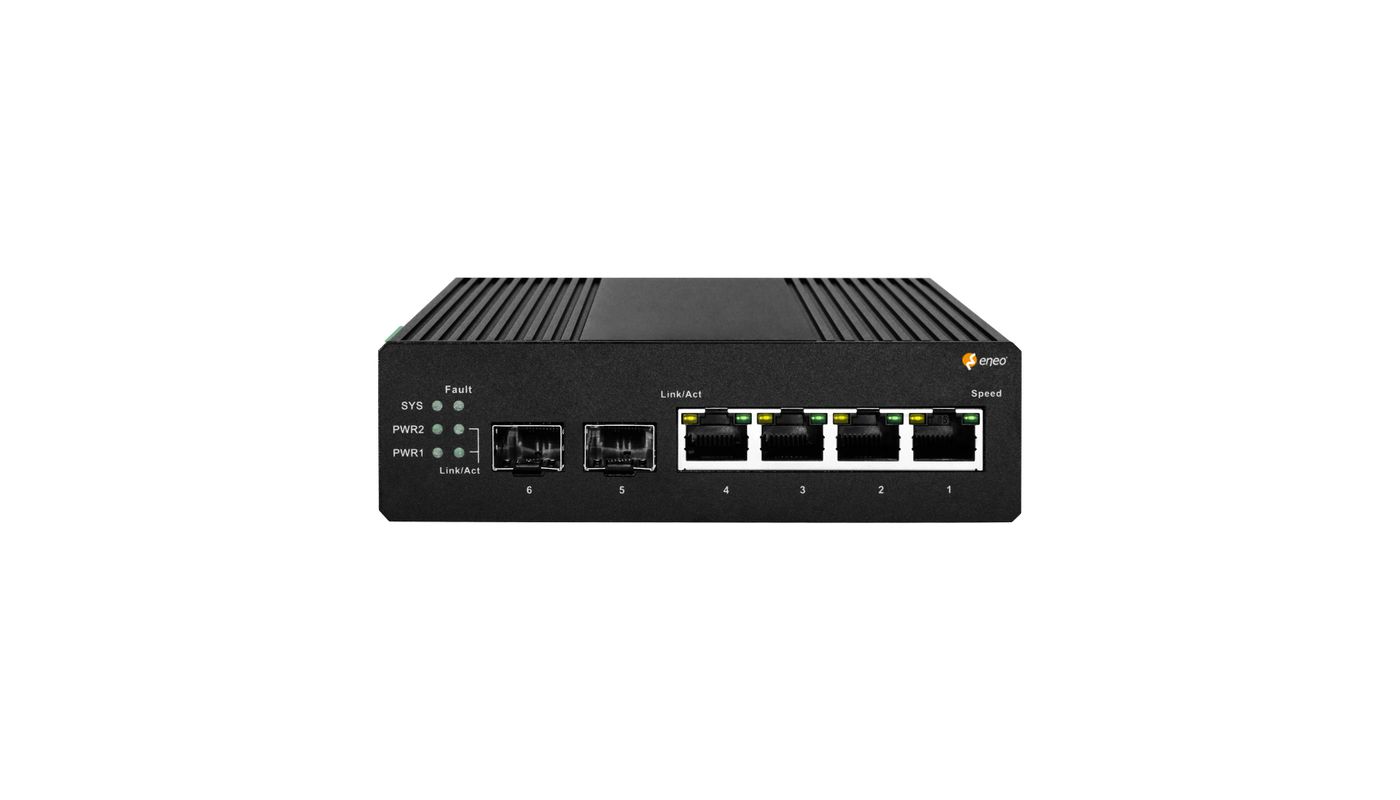

eneo NSMI-4004M0A
SKU
242371
Gigabit Switch Industrial, Managed, 4x PoE, 2xSFP, 30W each Port, -40°C~75°C, 44~57 VDC, w/o power supply
Main Features
4 RJ45 ports with 10/100/1000 Mbps
2 Gigabit SFP ports for fiber optic uplink
4 PoE+ ports, each with up to 30W power
Total PoE power: up to 110 watts,
depending on the connection
Supports IEEE 802.3af/at standards
High EMC protection level
Supports VLAN, ACL, and ERPS ring network
Redundant power supply 44-57VDC
Robust IP30 housing, DIN-RAIL or wall mounting
Operating temperature range: -40-75°C
Power supply not included
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 242371
- Brand
- ENEO
- EAN/GTIN
- 4260229841631
- Series
- eneo Switch
Functions
- Multicast
- Yes
- QoS
- DSCP Priority, QoS, WRR
Network
- Security
- Fast Ring, Password, Port Isolation, Radius Authentication
- Eneo _netzwerkstandards
- IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (Gbit)
- 12 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 4x 10/100/1000Base-T
General
- Design
- DIN Rail Module
- Dimensions (WxHxD) (extended)
- 38,5x136x108mm
- Weight
- 1.168 kg
- Number of PoE ports
- 4
- Type
- Smart Switch
- Power consumption
- 10 W
- Fan
- No
- Management
- Yes
- Mounting type
- DIN Rail, Wall
- PoE Budget (Total)
- 110 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 44-57VDC
- Temperature Range (Operating)
- -40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,1x DIN Rail
Notes
- Remark
- No power supply included. A suitable,optionally available power supply must be used to achieve the full specified PoE budget value.
Further product information
Application: The industrial PoE switch is ideal for small to mid-sized video surveillance setups in demanding environments. Its fanless design, wide temperature range (-40–75 °C), and redundant DC input make it suitable for industrial sites, outdoor use, and transportation systems. The plug-and-play setup enables quick and simple deployment.
External Power Supply: The recommended standard power depends on the performance of the external power supply unit in industrial quality. This product has 4 PoE ports. In terms of compatibility with a 60W power supply, the PoE power is approximately 50W. If 4 ports are set up with a 120W industrial power supply, a power output of up to 110W can be provided.
