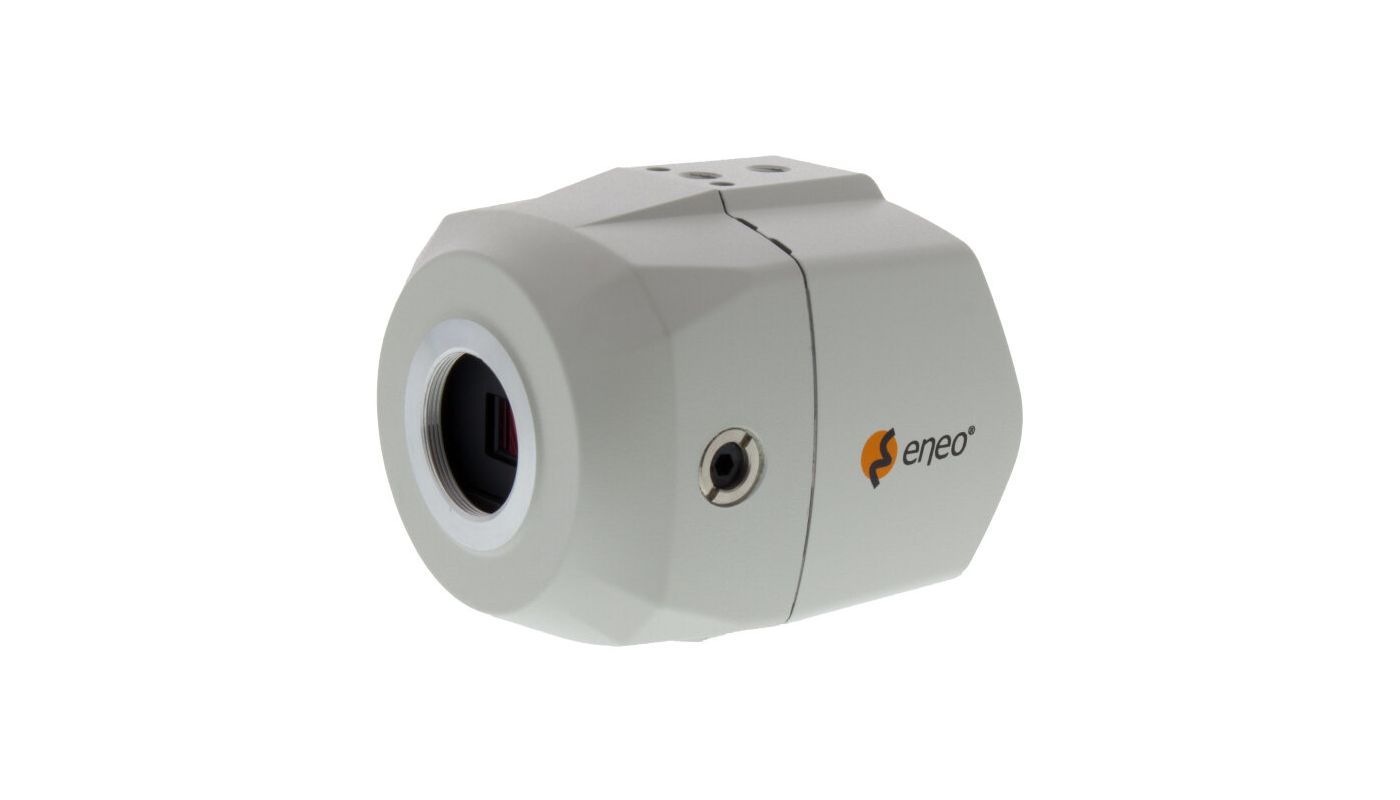

MPC-52C0000M0A

1/2.8" HD Camera, Day&Night, 1920x1080, WDR, C/CS, 12/24V
Art. No.
217280
  • 1/2.8" 2 Megapixel SONY STARVIS CMOS sensor
  • Resolution max. 1920x1080 pixels (Full HD)
  • Separate outputs for digital and multi-signal
  • Multisignal: HD-TVI, AHD, CVI and Composite selectable
  • Digital signal: EX-SDI, HD-SDI selectable
  • Removable infrared cut filter
  • ROI (Region of Interest) WDR mode
  • Integrated motion detector, defog, privacy zones
  • C/CS mount, LSC (Lens shading compensation)
Specifications
Series eneo KX-Series, eneo COAXIZE
Camera:
Camera type Box
Sensor size 1/2.8"
Imager CMOS, Sony STARVIS, Sensor IMX291
System True Day&Night
Sensitivity 0,08 Lux, at F1.4, 40IRE
Low Speed Shutter yes
Low speed shutter manual time preselection
Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
Wide Dynamic Range (WDR) WDR 113dB, Real Time WDR 25/30fps
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night
White balance automatic, Preset, manual
Signal-to-noise ratio 50dB
Video:
Signal format Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP, CVI @ 2MP, EX-SDI (270 Mbps), HD-SDI (1.485 Gbps)
Frame rate 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Synchronization internal
Lens:
Iris Control DC
Resolution Pixels 1920x1080, 1280x720, 720x576
Video standard PAL/NTSC
Functions:
Motion Detector yes
Analysis functions Defog
OSD function control OSD camera setup
Menu languages German, English, Chinese, Japanese, Korean
Privacy zone masking Areas-ON/OFF switchable
Mirror function mirror, V flip
Digital Noise Reduction yes
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI, AHD, CVI, composite (CVBS), EX-SDI, HD-SDI
External connectors voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC)
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
General:
Dimensions (HxWxD) 72x74x89mm
Weight 290g
Color (housing) Pantone Cool Gray 1C
Housing indoor
Hosuing material aluminium
Power consumption 5W
Supply voltage 12VDC, 24VAC
Operating temperature -10°C ~ +50°C
Text display supplied
Parts supplied:
Parts supplied manual, C/CS adapter
Remarks NDAA compliance under Section 889, Part A.
More Choices:
  1. H04Z03NFDC-MP
    Art. No.: 213619 H04Z03NFDC-MP
    F1,5/4-13mm, Megapixel DC-Lens, variable Focal Lenght, 1/1.8" CS-Mount
  2. TVA-1201TRA
    Art. No.: 212984 TVA-1201TRA
    UTP Transmitter+Receiver, UTP, BNC, 250m, Indoor, HD TVI CVI, AHD, CVBS, Active, 12V
  3. TVA-1201TRP
    Art. No.: 212985 TVA-1201TRP
    UTP Transmitter+Receiver, UTP, BNC, 150m, Indoor, HD TVI CVI, AHD, CVBS, Passive
  4. WD-30
    Art. No.: 219504 WD-30
    Wall Mount Bracket with Ball Joint, 1/4" Camera Fixing Screw, Pantone Cool Grey 1C
  5. PS12DC-11
    Art. No.: 218653 PS12DC-11
    Plug-in Power Supply Unit, 100-240VAC/12VDC (1,0A), regulated, with DC Plug

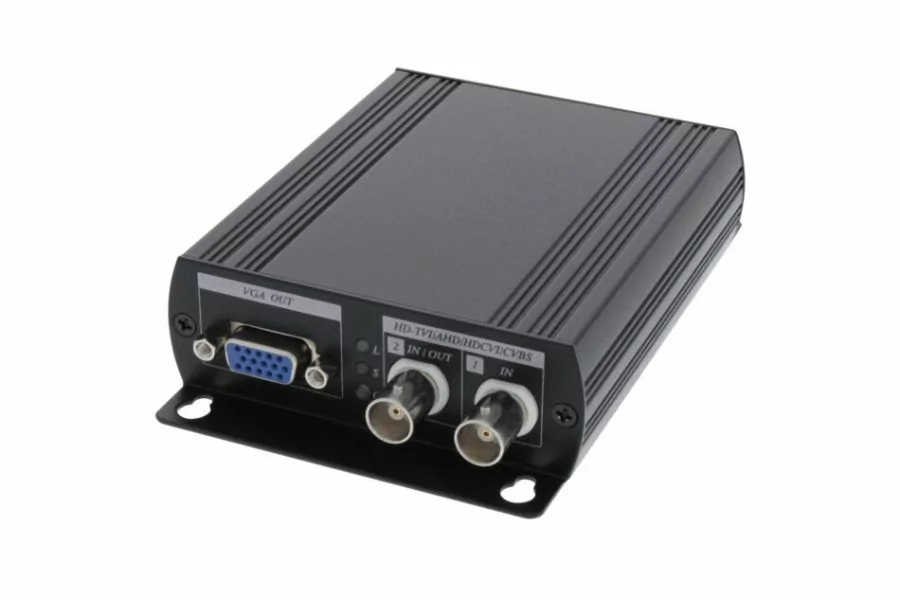

  6. MAM-5MM1001M0A
