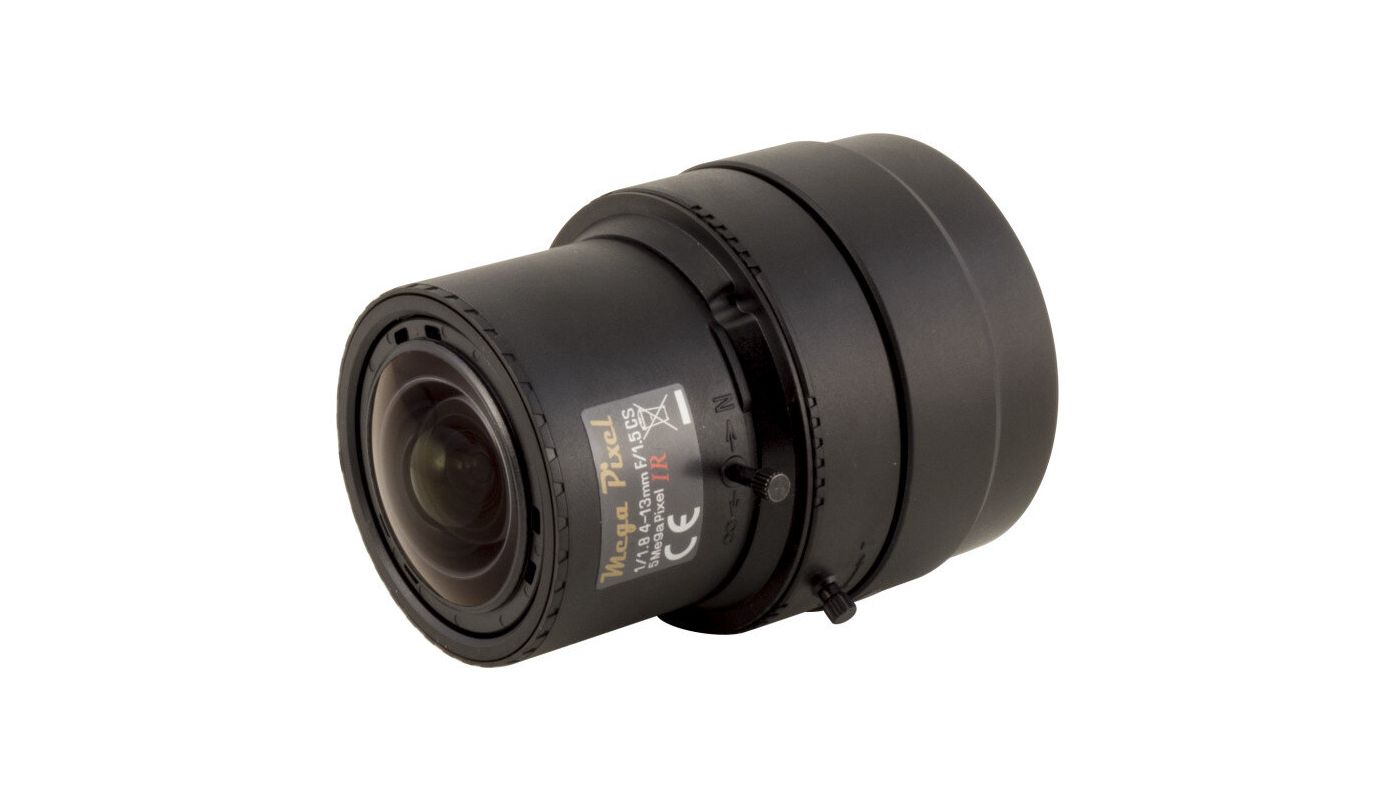

H04Z03NFDC-MP
F1,5/4-13mm, Megapixel DC-Lens, variable Focal Lenght, 1/1.8" CS-Mount
Art. No.
213619
- Designed for 1/1.8” cameras
- Variable Focal Length, 5 Megapixel
- Aspherical lens elements
- CS-Mount
- High standard of optical and mechanical quality
- 4 pin connector for DC iris control
- Suitable for 4K Resolution
| Day&Night | yes |
|---|---|
| Resolution | 2592x1944 (4:3) |
| Megapixels | yes |
| Lens Type | Varifocal |
| Focal Length | 4 - 13 mm |
| MOD (Mininum Object Distance) | 0,3 m |
| Mount | CS |
| Aperture range (F) | F1.5 |
| Iris Control | DC |
| Nominal Format | 1/1.8" |
| Horizontal Angle of View | 105,4 - 33° |
| Diameter | 64,5 mm (D) |
| Length | 87,51 mm (L) |
| Weight | 167g |
| Colour | anthracite |
| Operating temperature | -20°C ~ +60°C |
