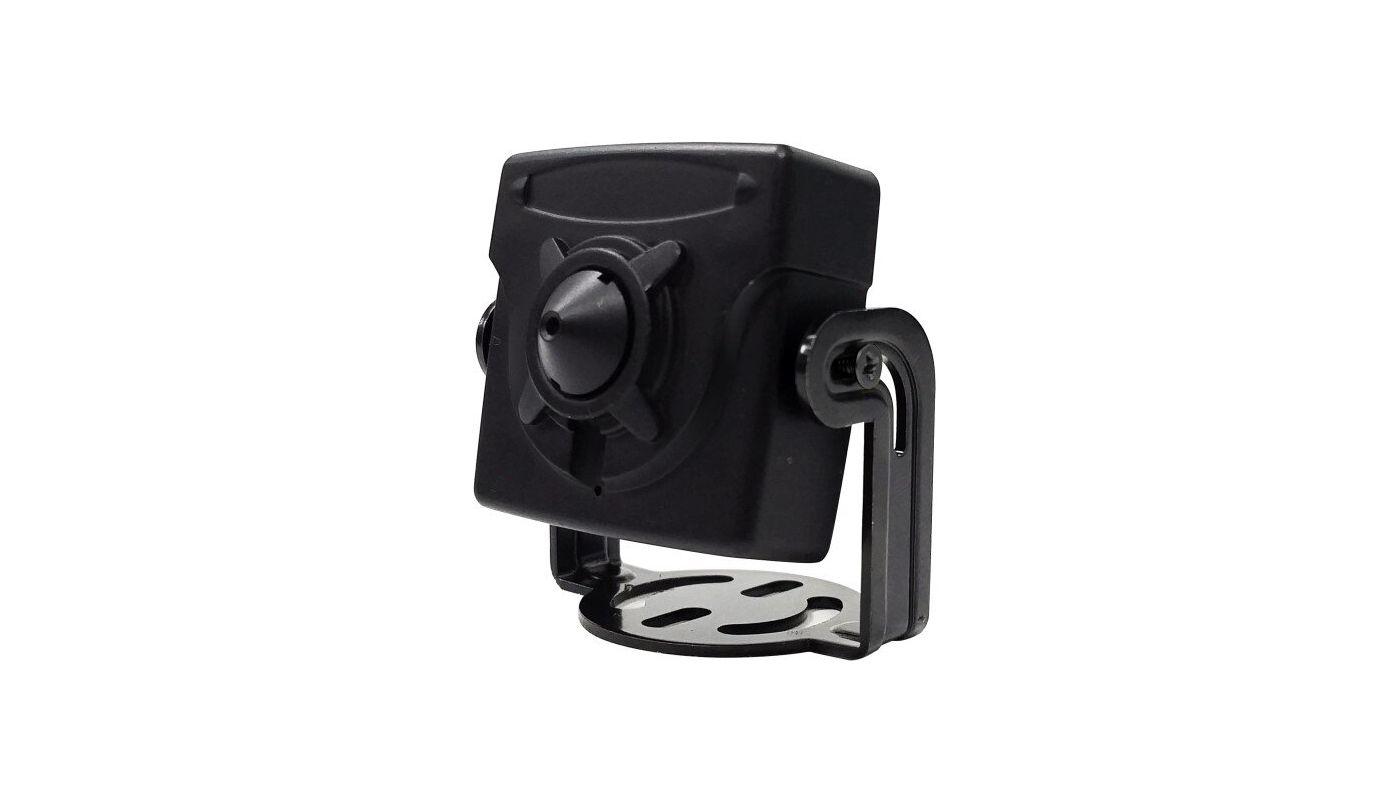

MSM-42F0037MPA

1/2.8" HD Board Camera, Colour, 1920x1080, 3.7mm, Pinhole, WDR, Housing, 12VDC
Art. No.
217646
  • 1/2,8" 2 Megapixel SONY STARVIS CMOS-Sensor
  • Board Camera with rugged metal cabinet
  • Resolution max. 1920x1080 (Full HD)
  • Separate outputs for digital and multi-signal
  • Multisignal: HD-TVI, AHD, CVI and Composite selectable
  • Digital signal: EX-SDI, HD-SDI selectable
  • Pinhole lens 3.7mm
  • Electronic Day/Night function
  • ROI (Region of Interest) WDR mode
  • Integrated motion detector, defog, privacy zones
Specifications
Series eneo COAXIZE
Camera:
Camera type Modul
Sensor size 1/2.8"
Imager CMOS, Sony STARVIS, Sensor IMX291
System colour
Sensitivity 0,08 Lux, at F1.4, 40IRE
Low Speed Shutter yes
Low speed shutter manual time preselection
Manual electronic shutter (MES) 1/25 ~ 1/30.000sec
Automatic electronic shutter (ESC) 1/25 ~ 1/30.000sec.
Wide Dynamic Range (WDR) WDR 113dB, Real Time WDR 25/30fps
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch no
Day&Night mode not available
White balance automatic, Preset, manual
Signal-to-noise ratio 50dB
Video:
Signal format Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP, CVI @ 2MP, EX-SDI (270 Mbps), HD-SDI (1.485 Gbps)
Frame rate 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Lens:
Lens Type fixed focal length
Focal Length 3,7 mm
Digital Zoom no
MOD (Mininum Object Distance) 0,5 m
Iris Control no
Resolution Pixels 1920x1080, 1280x720, 720x576
Vertical Angle of View 42°
Horizontal Angle of View 82°
DORI:
Detect (25px/m) 59 m
Observe (62 px/m) 21 m
Recognize (125 px/m) 11 m
Identify (250 px/m) 5 m
Functions:
Motion Detector yes
OSD function control OSD camera setup
Menu languages German, English, Chinese, Japanese, Korean
Privacy zone masking Areas-ON/OFF switchable
Mirror function mirror
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI, AHD, CVI, composite (CVBS), EX-SDI, HD-SDI
External connectors voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC)
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
General:
Dimensions (HxWxD) 37x37,8x21,5mm
Weight 110g
Color (housing) black
Housing indoor
Hosuing material metal
Camera Type Platinenkamera
Power consumption 1.8W
Mounting wall mount, ceiling mount
Supply voltage 12VDC
Operating temperature -10°C ~ +50°C
Text display supplied
Parts supplied:
Parts supplied manual, mounting accessories
Remarks NDAA compliance under Section 889, Part A.
