MPB-72M2713M0A
SKU
217277

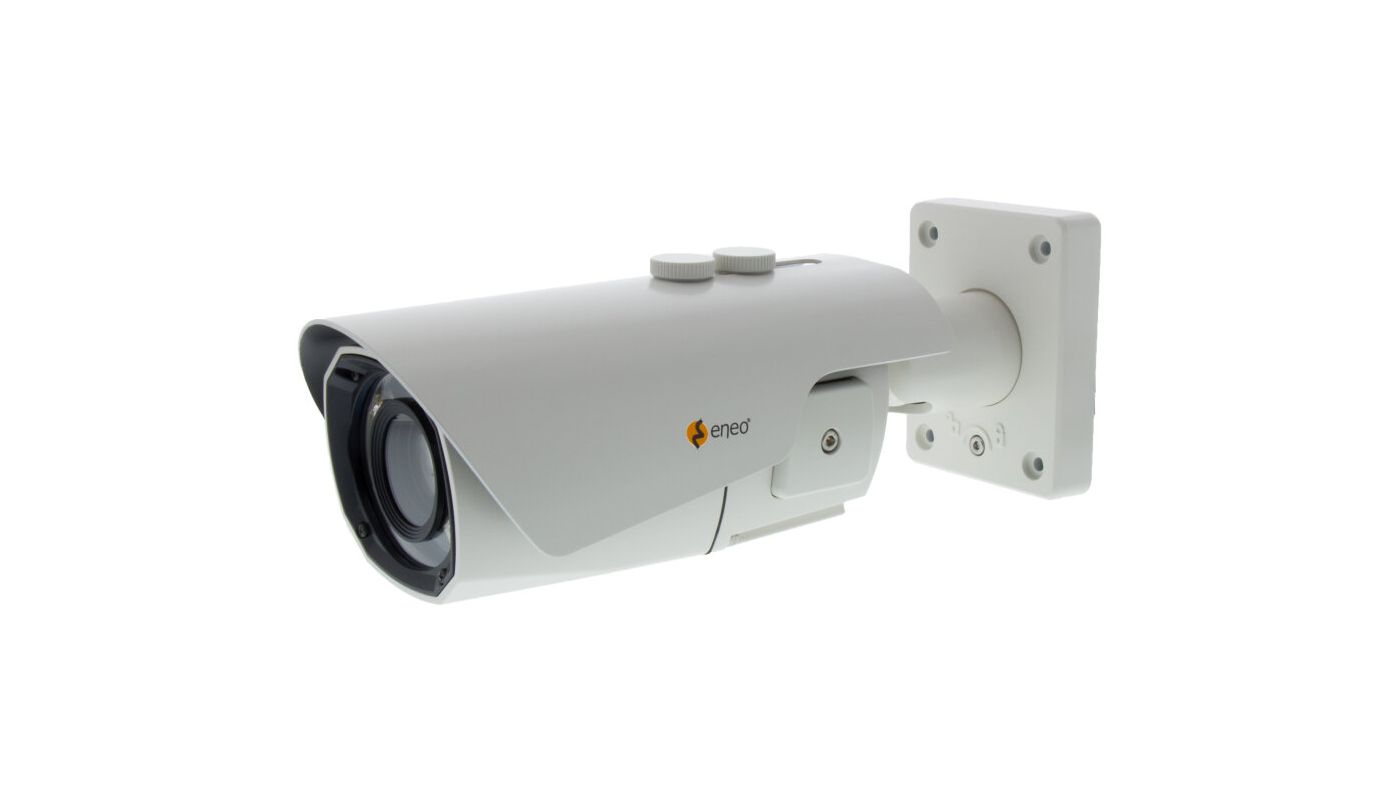

1/2.8" HD Camera, Day&Night, 1920x1080, Infrared, WDR, 2.7-13.5mm, 12/24V, IP67
Main Features
1/2.8" 2 Megapixel SONY STARVIS CMOS sensor
Resolution max. 1920x1080 pixels (Full HD)
Separate outputs for digital and multi-signal
Multisignal: HD-TVI, AHD, CVI and Composite selectable
Digital signal: EX-SDI, HD-SDI selectable
Motorized lens 2.7 ~ 13.5mm
Removable infrared cut filter
ROI (Region of Interest) WDR mode
Integrated motion detector, defog, privacy zones
IP67, built heater
Easy installation, central locking screw
IR illumination switchable via OSD menu
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Bullet
- Sensor size
- 1/2.8"
- Imager
- Sony STARVIS, Sensor IMX291, CMOS
- Sensitivity
- 0,08 Lux at F1,4, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/25 ~ 1/30.000sec
- Automatic electronic shutter (ESC)
- 1/25 ~ 1/30.000sec.
- Wide Dynamic Range (WDR)
- Real Time WDR 25/30fps, WDR 113dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night
- White balance
- Automatic, Preset, Manual
- Signal-to-noise ratio
- 50dB
- Video:
- Signal format
- AHD @ 2MP, Composite (FBAS), CVI @ 2MP, EX-SDI (270 Mbps), HD-SDI (1.485 Gbps), HD-TVI @ 2MP
- Frame rate
- 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
- Synchronization
- internal
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,7 - 13,5 mm
- Digital Zoom
- no
- MOD (Mininum Object Distance)
- 0,5 m
- Aperture range (F)
- F1.4
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 47 - 128 m
- Observe (62 px/m)
- 18 - 52 m
- Recognize (125 px/m)
- 8 - 25 m
- Identify (250 px/m)
- 4 - 12 m
- Functions:
- Motion detector
- yes
- Analysis functions
- Defog
- OSD function control
- OSD camera setup
- Menu languages
- German, English, Chinese, Japanese, Korean
- Privacy zone masking
- Areas-ON/OFF switchable
- Mirror function
- mirror, V flip
- Digital Noise Reduction
- yes
- Interfaces / Inputs/ Outputs:
- Video outputs
- AHD, Composite (CVBS), CVI, EX-SDI, HD-SDI, HD-TVI
- External connectors
- voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC), connection cable approx.100cm
- Alarm inputs
- no
- Alarm outputs
- no
- Serial interfaces
- Coaxitron (HD Protocol)
- Serial interfaces protocols
- UTC (HD-Signal Format)
- General:
- Brand
- ENEO
- Series
- eneo Candid Medium, eneo COAXIZE, eneo KX-Series
- Dimensions (HxWxD)
- 100x107,8x277mm
- Weight
- 1.35kg
- Illumination
- 5x High Power LED 850nm, Infrared
- Illumination range
- approx. 60m
- Color (housing)
- Pantone Cool Gray 1C
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- yes
- Integrated wall mount
- yes
- Power consumption
- 10.5W
- Mounting
- Ceiling mount, Wall mount
- Protection rating
- IP67
- Sunshield
- yes
- Supply voltage
- 12VDC, 24VAC
- Operating temperature
- -30°C ~ +50°C
- Text display
- supplied
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual, drilling template, bag of screws
- Other
- Imager
- CMOS
- Low Speed Shutter
- yes
- Backlight Compensation
- BLC, HLC
- Wide Dynamic Range (WDR)
- WDR 113dB
- Motion Detector
- yes
- llumination
- Infrared
- Resolution Pixels
- 1280x720, 1920x1080, 720x576
- Vertical Angle of View
- 53 - 19°
- Horizontal Angle of View
- 100 - 38°
- Video standard
- PAL/NTSC
- Remarks
- NDAA compliance under Section 889
- Manufacturer order number
- 217277
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Quick reference guide for this product
- Documents PDF
- Kurz-Betriebsanleitung zum Produkt
- Documents PDF
- Mode d'emploi succincte pour ce produit
- Documents PDF
- Istruzioni d'uso brevi sul prodotto
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Declaration of Conformity in German and English
- Marketing Infos PDF | 211.9 kB
- Accessories Overview eneo
- Marketing Infos PDF | 145.5 kB
- NDAA konforme Produkte
