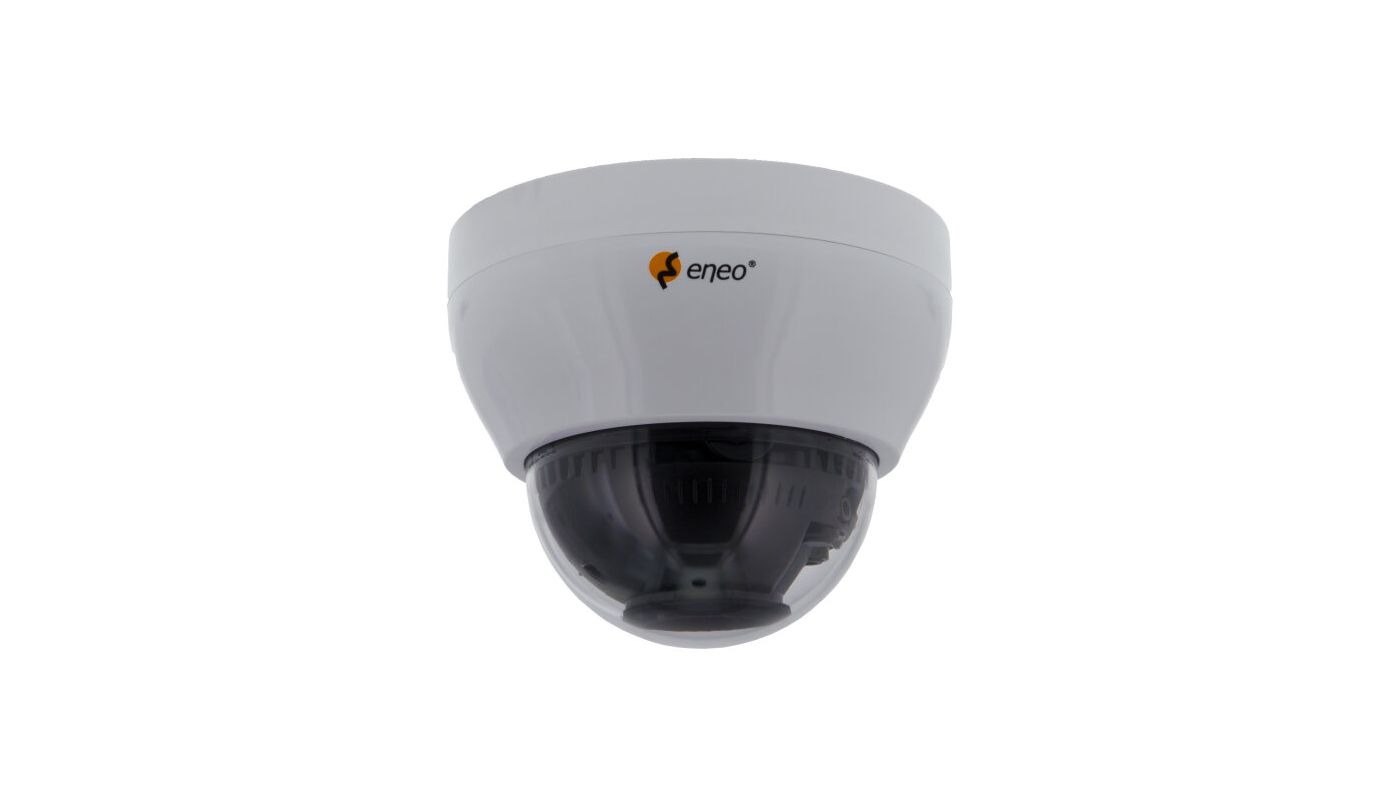

SKU 233014
1/2,8" HD Dome, Fix, Day&Night 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, Indoor

Main Features

1/2.8" 2.3 Megapixel progressive scan CMOS sensor
Compact plastic housing for indoor use
Resolution max. 1920x1080 (Full HD)
Multisignal: HD-TVI, AHD, CVI, Composite selectable
Variofocal 2.8~12mm day&night lens
LSC (Lens shading compensation)
Removable infrared cut filter
3D-DNR noise reduction
Digital Wide Dynamic Range (D-WDR)
Integral motion detection
Wedge adapter included (10° inclination)
Scratch resistant hard coated bubble
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.8"
Resolution Pixels
960x576
Imager
Sony, Sensor IMX323, CMOS
Sensitivity
0,3 Lux at F1,3, 40 IRE
System
True Day&Night
Low speed shutter
2x ~ 30x, yes
Manual electronic shutter (MES)
1/25 ~ 1/50.000sec.
Automatic electronic shutter (ESC)
1/25 ~ 1/50.000sec..
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
White balance
ATW, AWB, Manual, Outdoor, Indoor, AWC
Signal-to-noise ratio
52db
Video:

Signal format
AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP
Frame rate
25/30fps @ 1920x1080p
Synchronization
internal
Lens:

Lens Type
Varifocal
Zoom Factor
4x
Focal Length
2,7 - 13,5 mm
Digital Zoom
no
MOD (Mininum Object Distance)
0,5 m
Aperture range (F)
F1,3
Iris control
DC
DORI:

Detect (25px/m)
44 - 198 m
Observe (62 px/m)
16,6 - 80,5 m
Recognize (125 px/m)
8,2 - 40,1 m
Identify (250 px/m)
3,9 - 20,1 m
Functions:

Motion detector
yes
Analysis functions
Defog
Vertical tilt range
65 °(25 ~ 90°)
OSD function control
OSD camera setup
Menu languages
German, English, French, Italian, Spanish, Turkish, Dutch, Portugese, Polish, Chinese, Russian
Privacy zone masking
Areas-ON/OFF switchable
Mirror function
rotation, mirror, V flip
Digital noise reduction (DNR)
yes
Interfaces / Inputs/ Outputs:

Video outputs
AHD, Composite (CVBS), CVI, HD-TVI
External connectors
video (BNC), 12VDC input (DC plug), connection cable approx.15cm
Alarm inputs
no
Alarm outputs
no
Serial interfaces
Coaxitron (HD Protocol)
Serial interfaces protocols
UTC (HD-Signal Format)
General:

Brand
ENEO
Series
eneo KX-Series
Dimensions (HxWxD)
100x116mm
Weight
260g
Illumination
2x High Power LEDs 850nm, Infrared
Illumination range
approx. 30m
Color (housing)
white
Color (bubble)
clear
Housing
Indoor
Hosuing material
Plastic
Heater
no
Power consumption
6W
Mounting
Ceiling mount, Wall mount
Supply voltage
12VDC
Operating temperature
-10°C ~ +50°C
Text display
supplied
Vandal proof
no
Parts supplied:

Parts supplied
manual, screw set, Video sub-out cable, drilling template, bag of screws
Other

Imager
CMOS
Low Speed Shutter
yes
Digital Noise Reduction
yes
Backlight Compensation
BLC, HLC
Wide Dynamic Range (WDR)
D-WDR
Motion Detector
yes
Objektiv Typ
Varifocal
Iris Control
DC
llumination
Infrared
Resolution Pixels
1920x1080, 960x576
Vertical Angle of View
49 - 15°
Horizontal Angle of View
95 - 27°
Video standard
PAL/NTSC
Supply voltage
12VDC
Remarks
NDAA compliance under Section 889
Special features
Exact focus setting aid, Hard Coated Bubble (Hardness grade - H) -- Anti Scratch Protection
Manufacturer order number
233014

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Detailed manual for this product
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 202.9 kB
