eneo INP-75A0033MIB
SKU
240083

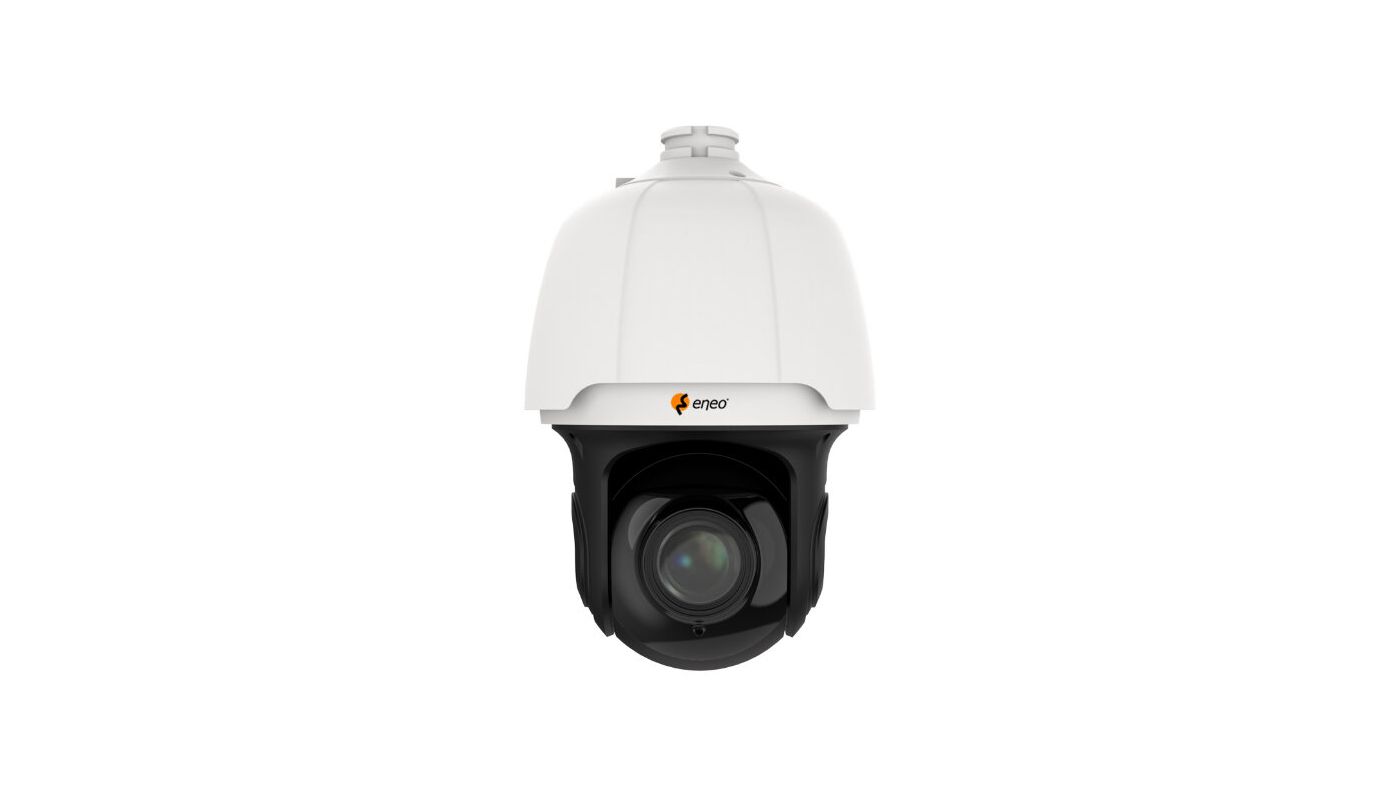

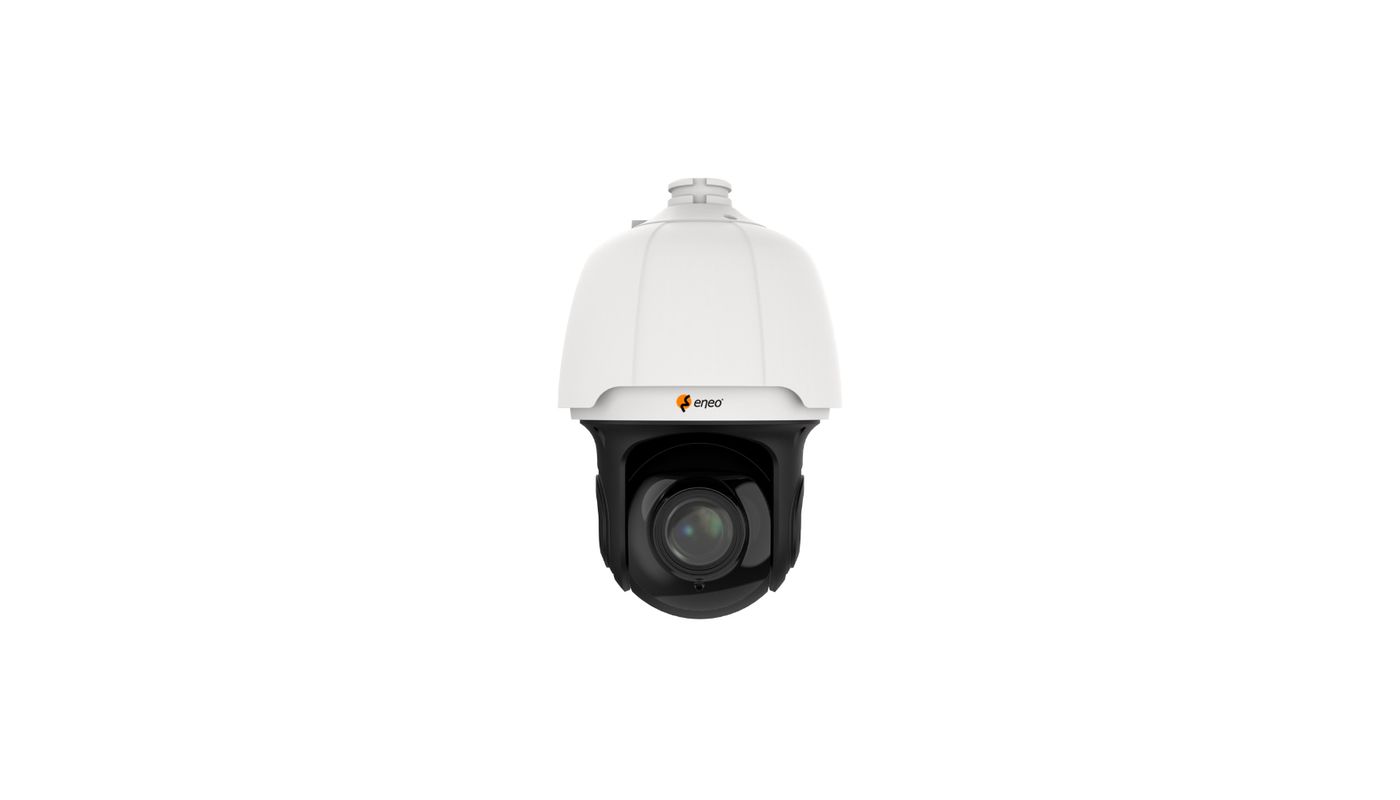

Network PTZ Dome Camera, 33x AFZ, 2952x1944, Day & Night, WDR, AI 4,3-142mm, Alarm, Audio, IR, 12VDC, PoE+, IP66
Main Features
1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR Noise Reduction
Motorized autofocus zoom lens 33x 4.3-142mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G/M
Local storage via Micro SD card
Audio input and output, NDAA conform
Power supply 12VDC, or PoE IEEE 802.3at
IR LED illumination, IP66
Wall bracket included
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 240083
- Brand
- ENEO
- EAN/GTIN
- 4260229840665
- Series
- eneo IN-Serie
Camera
- Camera shape
- PTZ
- Chip size
- 1/2,7"
- Resolution standard
- 5 MP
- Recording sensor
- Chipset NT98528, CMOS, OmniVision OS05A20
- Photosensitivity
- 0,003 Lux bei F1,6
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Night,Time
- White balance
- Automatic,Manual
Video
- Resolution (extended)
- 2592x1944 (4:3),2592x1520 (16:9),2048x1536 (4:3),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
- Picture size
- 16:9, 4:3
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Auto Focus Zoom
- Focal length
- 4,3 - 142 mm
- MOD (Minimum Object Distance)
- 1.5 m
- Aperture Range (F)
- F1.6
- Vertical angle of view
- 41,6 - 1,7°
- Horizontal angle of view
- 55 - 2,3°
- Zoomfactor (optical)
- 33
Display
- Image resolution max.
- 2592x1944
DORI
- Perceiving (25px/m)
- 107 - 2574 m
- Watch (62px/m)
- 42,5 - 1039 m
- Detect (125px/m)
- 20,7 - 518 m
- Identify (250px/m)
- 10 - 258 m
Functions
- Multicast
- Yes
- Motion detector
- Yes
- Analysis
- Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
- Alarm processing
- recording internal storage (SD card),E-Mail,FTP,Cloud Upload
- Tours
- 1 selectable tour
- Turning range
- 360
- Speed (manual control)
- 200 °/sec
- Speed (Target Approach)
- 200 °/sec
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- 256GB, microSDHC card, microSDXC card
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Browser
- Edge, Firefox, Google Chrome, Safari
- Digital Noise Reduction (DNR)
- Yes
- Privacy Zone
- Areas-ON/OFF switchable
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, TCP-IP, UDP, UPnP
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,Audio input,12VDC input (DC plug),Alarm in/output,micro SD card slot 256 GB,connection cable approx.45cm
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- WDR 120dB
- Lighting
- Infrared
- Audio compression
- G.711
- Dimensions (WxHxD) (extended)
- 206,4×351,8mm
- Weight
- 3.7 kg
- Illumination range
- Approx 150m
- Color (Housing)
- RAL9003,Pantone P 179-1 / Other colors available upon request
- Housing type
- Outside
- Housing material
- Aluminium
- Heating
- No
- Camera Type
- Domecamera
- Power consumption
- 25.6 W
- Mounting type
- Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3at
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP66
- SDK
- upon request
- Power supply
- 12VDC, PoE+
- Temperature Range (Operating)
- -30°C ~ +60°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,wall bracket,4x heavy-duty anchors,1x Allen wrench,1x waterproof cover for RJ45 connector
Notes
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
Further product information
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 1.8 MB
- Quick reference guide for this product (multilingual)
- Manual PDF | 6.5 MB
- Manual for this product (german)
- Manual JPG | 397.5 kB

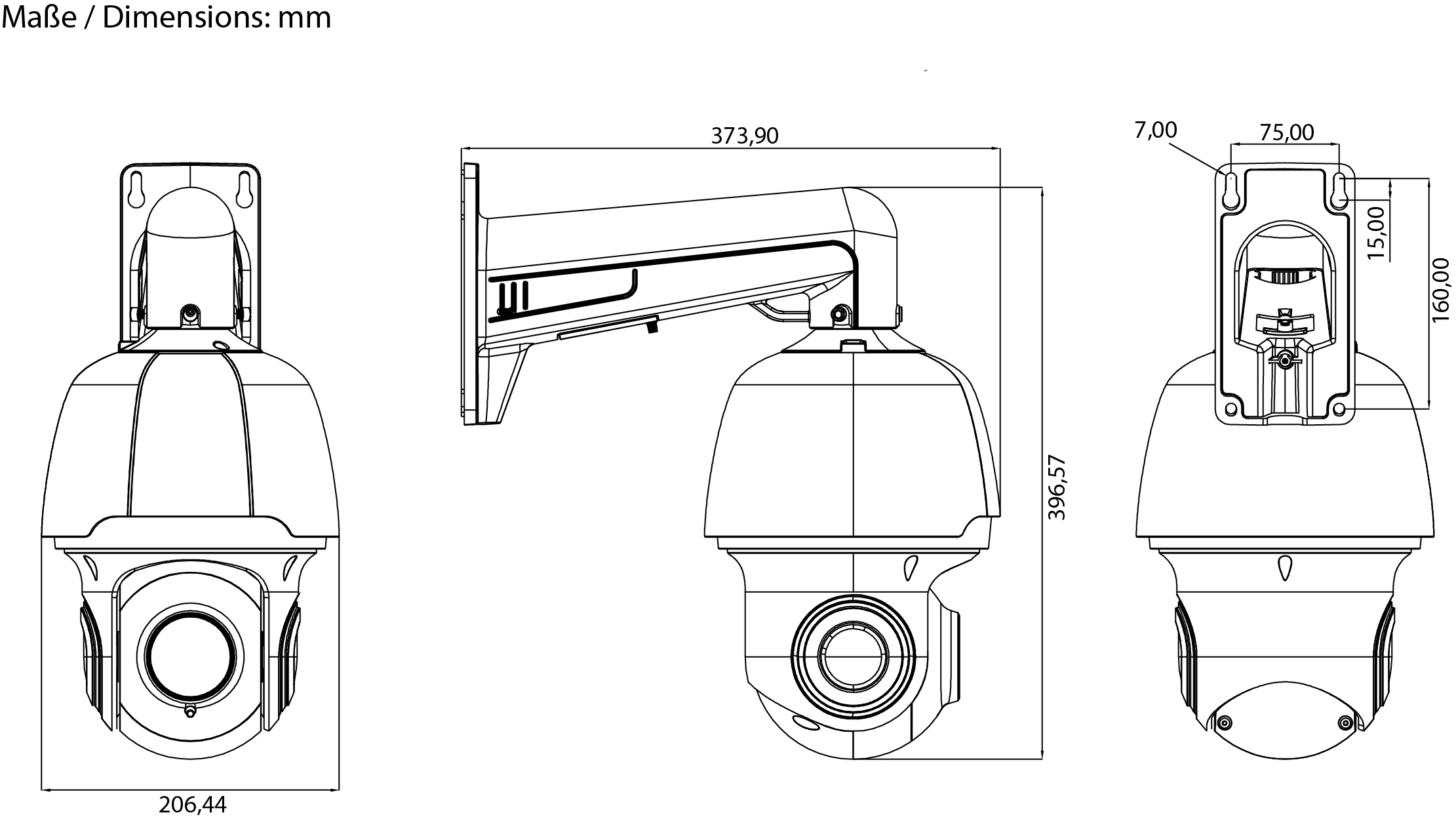

- Technical Drawing
- Manual PDF | 1.8 MB
- Quick reference guide for this product (multilingual)
- Manual PDF | 4.2 MB
- Manual for this product (english)
- Firmware HTML | 835 B
- Product Firmware CAD Files
- Software HTML | 823 B
- eneo Product Software Download Portal
- Software HTML | 914 B
- eneoSite ManagerTool
- Marketing PDF | 287.3 kB
- eneo IN-Serie AI Matrix
- Marketing PDF | 516.8 kB
- FAQ for the AI Functions of the new eneo IN series
- Marketing PDF | 467.8 kB
- FAQ for the AI Functions of the new eneo IN series
- Marketing PDF | 2.4 MB
- IN-Series-Integration Milestone
- Marketing PDF | 228.9 kB
- NDAA compliant products
- Marketing PDF | 72.2 kB
- Open Source Software License Information
- Marketing PDF | 1.2 MB
- Product Guide
- Marketing PDF | 2.5 MB
- Marketing information
- Marketing PDF | 218 kB
- RTSP Streams Configuration for eneo cameras and recorders
- Marketing PDF | 80.3 kB
- Zubehörübersicht eneo IN-Serie
- Hi-Res images ZIP | 20.5 kB
- Product image in a high resolution
- Declaration of conformity PDF | 113.7 kB
- Declaration of conformity (german and english)
