SKU 239837

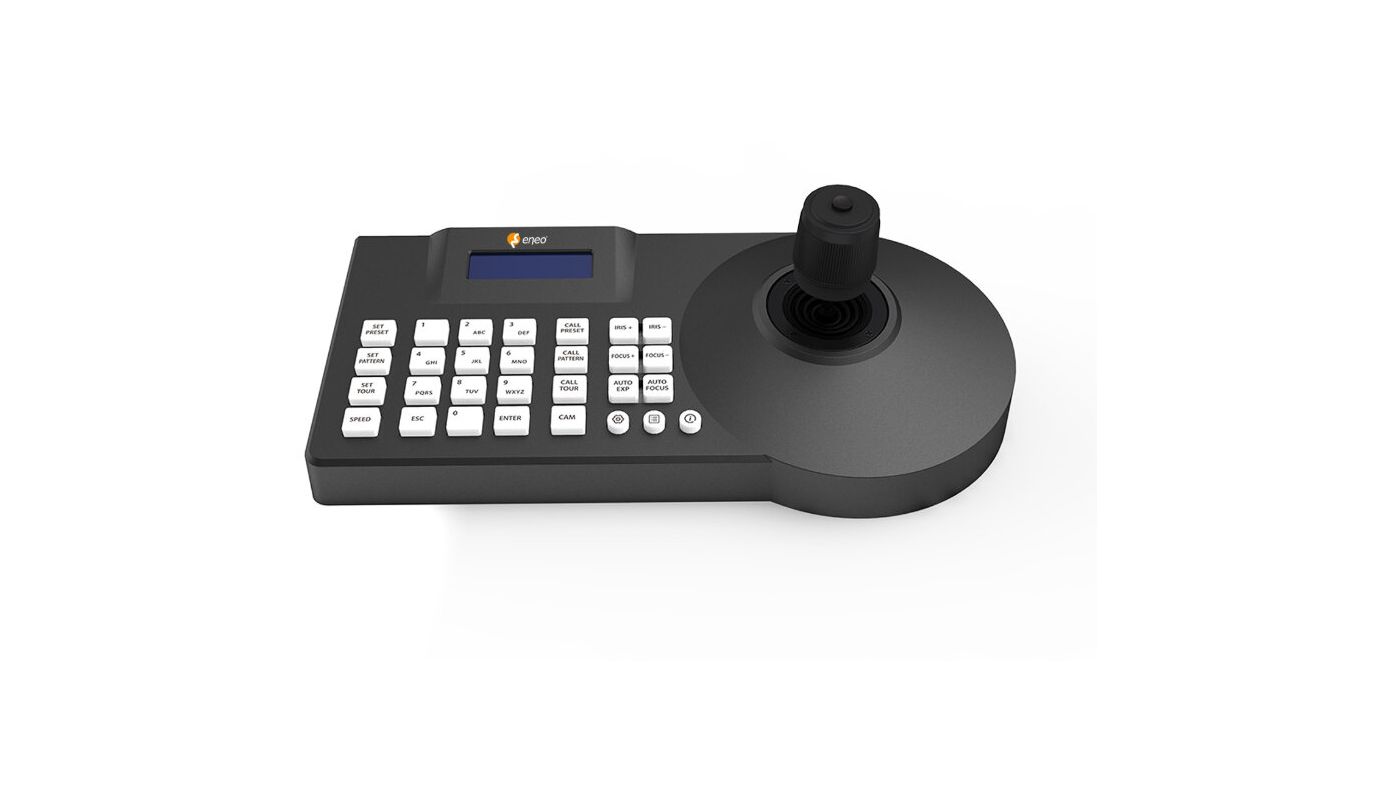

Network keyboard with joystick, supports ONVIF protocol, RJ45, 12VDC

Main Features

Network controller with keyboard
Supports eneo network cameras
Functions PTZ, focus, zoom, preset, tours
Supports standard ONVIF protocol
Connection via RJ45 interface
RS-485 interface supports Pelco D/P protocol
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Other

Brand
ENEO
Joystick
3-axis
Password protection
administrator & users
Menu languages
English
Web browser
Safari , Firefox , Google Chrome , Edge
Network connection
1 x 10/100BASE-T
Serial interfaces protocols
Pelco D, Pelco P, Onvif 2.4
Dimensions (HxWxD)
140(150)x306x99mm
Weight
1.3kg
Color
anthracite
Housing
plastic
Power consumption
12W
Operating temperature
0°C ~ +55°C
Parts supplied
manual, PSU 100~240VAC
Remarks
To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR)., The keyboard can be managed from version 4.12 of the eneo Site Manager (article 218218).
Manufacturer order number
239837

Further product information

The network system keyboard with joystick offers versatile application options for controlling and managing surveillance systems. Thanks to support for the ONVIF protocol, it is compatible with a wide range of IP cameras, including eneo network cameras, making it easier to integrate into existing surveillance networks. The connection is made via an RJ45 interface, which enables easy integration into networks.In addition to network communication, the keyboard also supports classic serial interfaces, such as the RS-485 interface, to control cameras via the Pelco D/P protocol. This extends compatibility to a wide range of PTZ cameras that enable precise control of pan, tilt and zoom functions (PTZ).The main functions of the keyboard include controlling PTZ cameras, focus and zoom settings, and calling up and controlling preset positions. The integrated joystick ensures intuitive and smooth operation, which is of great importance in safety-critical areas such as surveillance control rooms, traffic control centers or in large building complexes. The 12VDC power supply makes the keyboard flexible to use, as it is compatible with many standardized surveillance installations.Overall, this network keyboard is ideal for professional use in video surveillance and offers a high level of flexibility thanks to its compatibility with ONVIF and support for multiple control protocols.

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 72.2 kB
Open Source Software License Information
Tools HTML | 914 B
eneoSite ManagerTool
Software HTML | 823 B
eneo_Product_Software_Download Portal
Firmware HTML | 835 B
Produkt Firmware_CAD Files
Marketing Infos PDF | 149.1 kB
NDAA konforme Produkte
