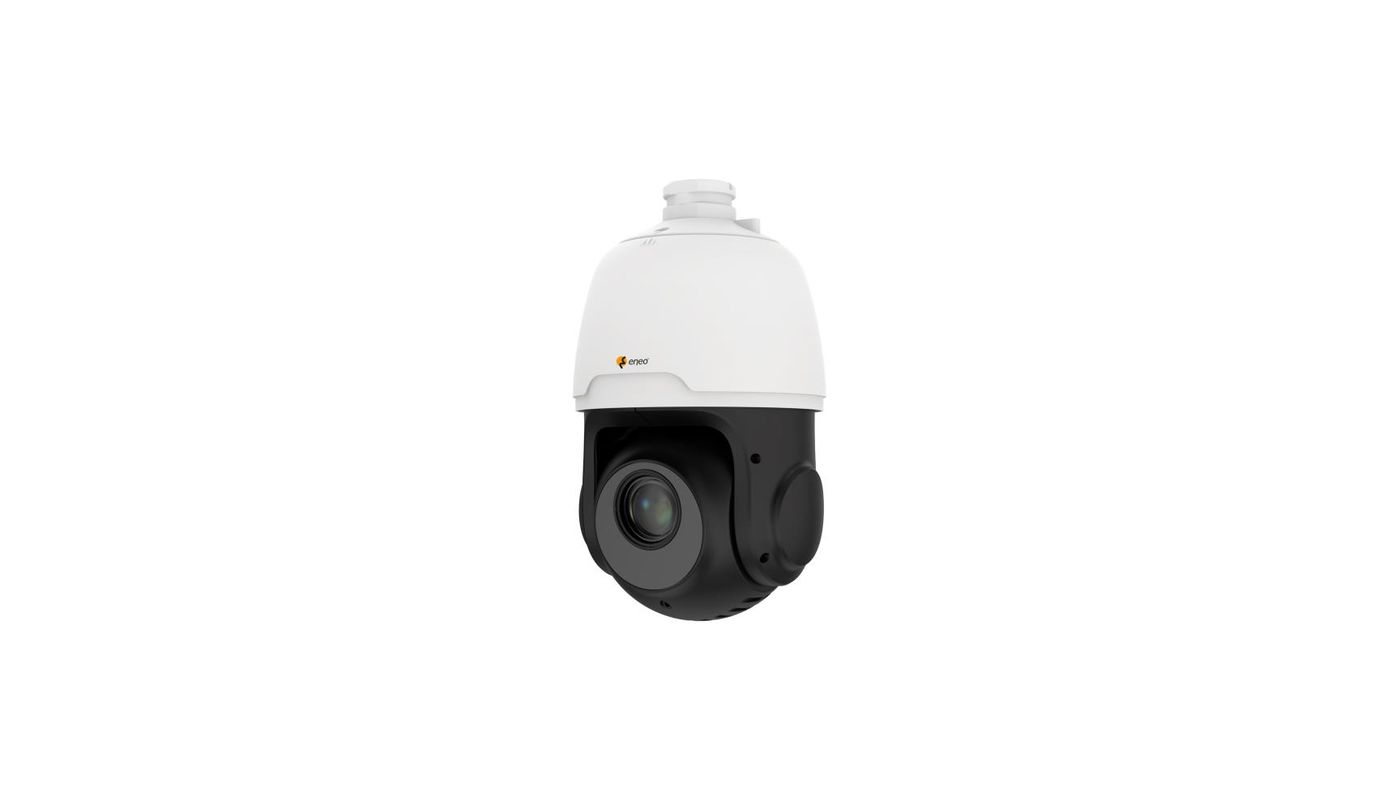

eneo INP-72A0018MIA
SKU
236322
Network PTZ Dome Camera, 18x AFZ, 1920x1080, Day/Night, WDR, AI, 5-90mm, Alarm, Audio, IR, 12VDC, PoE+, IP6
Main Features
1/2.7" SmartSens CMOS sensor
Maximum resolution 1920x1080 pixels, 30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Motorised autofocus zoom lens 18x 5.0-90mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G/M
Local storage via Micro SD card
Audio & alarm input and output
NDAA compliance
IR LED illumination, IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 236322
- Brand
- ENEO
- EAN/GTIN
- 4260229840535
- Series
- eneo IN-Serie
Camera
- Camera shape
- PTZ
- Chip size
- 1/2,7"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS, SC200AI
- Photosensitivity
- 0,0003 Lux bei F1,6
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Image,Time
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 34 dB
Video
- Resolution (extended)
- 1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),352:240 (4:3)
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Auto Focus Zoom
- Focal length
- 5 - 90 mm
- MOD (Minimum Object Distance)
- 0.1 m
- Vertical angle of view
- 30,7 - 2,2°
- Horizontal angle of view
- 53,3 - 3,8°
- Zoomfactor (optical)
- 18
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 79 - 1156 m
- Watch (62px/m)
- 31,7 - 466,5 m
- Detect (125px/m)
- 14,4 - 232 m
- Identify (250px/m)
- 7,2 - 115 m
Functions
- Multicast
- Yes
- Motion detector
- Yes
- Analysis
- Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
- Alarm processing
- recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload
- Tours
- 1 selectable tour
- Turning range
- 360 °
- Speed (manual control)
- 80 °/sec
- Speed (Target Approach)
- 120 °/sec
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Browser
- Edge, Firefox, Google Chrome, Safari
- Digital Noise Reduction (DNR)
- Yes
- Privacy Zone
- Areas-ON/OFF switchable
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RSTP, RTP, SMTP, TCP-IP, UPnP
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,Audio input/output,Alarm in/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- WDR 120dB
- Lighting
- Infrared
- Dimensions (WxHxD) (extended)
- 160x270mm
- Weight
- 2.5 kg
- Illumination range
- Approx. 100m
- Color (Housing)
- RAL9003,Pantone P 179-1,black
- Housing type
- Outside
- Housing material
- Aluminium
- Heating
- No
- Camera Type
- Domecamera
- Power consumption
- 22 W
- Mounting type
- Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3at
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP66
- SDK
- upon request
- Power supply
- 12VDC, PoE+
- Temperature Range (Operating)
- -30°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
Parts supplied
- Scope of delivery
- manual,wall bracket,bag of screws
Notes
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
