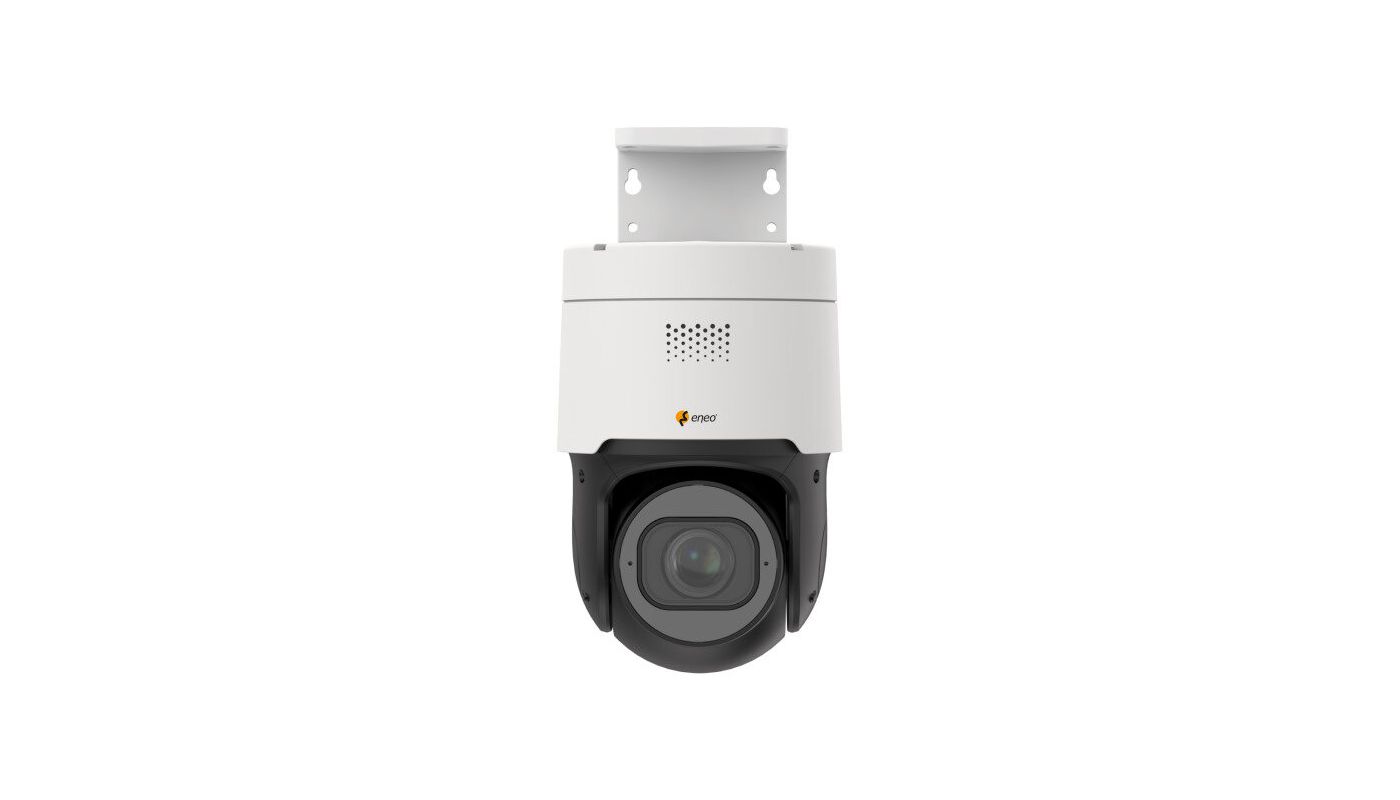

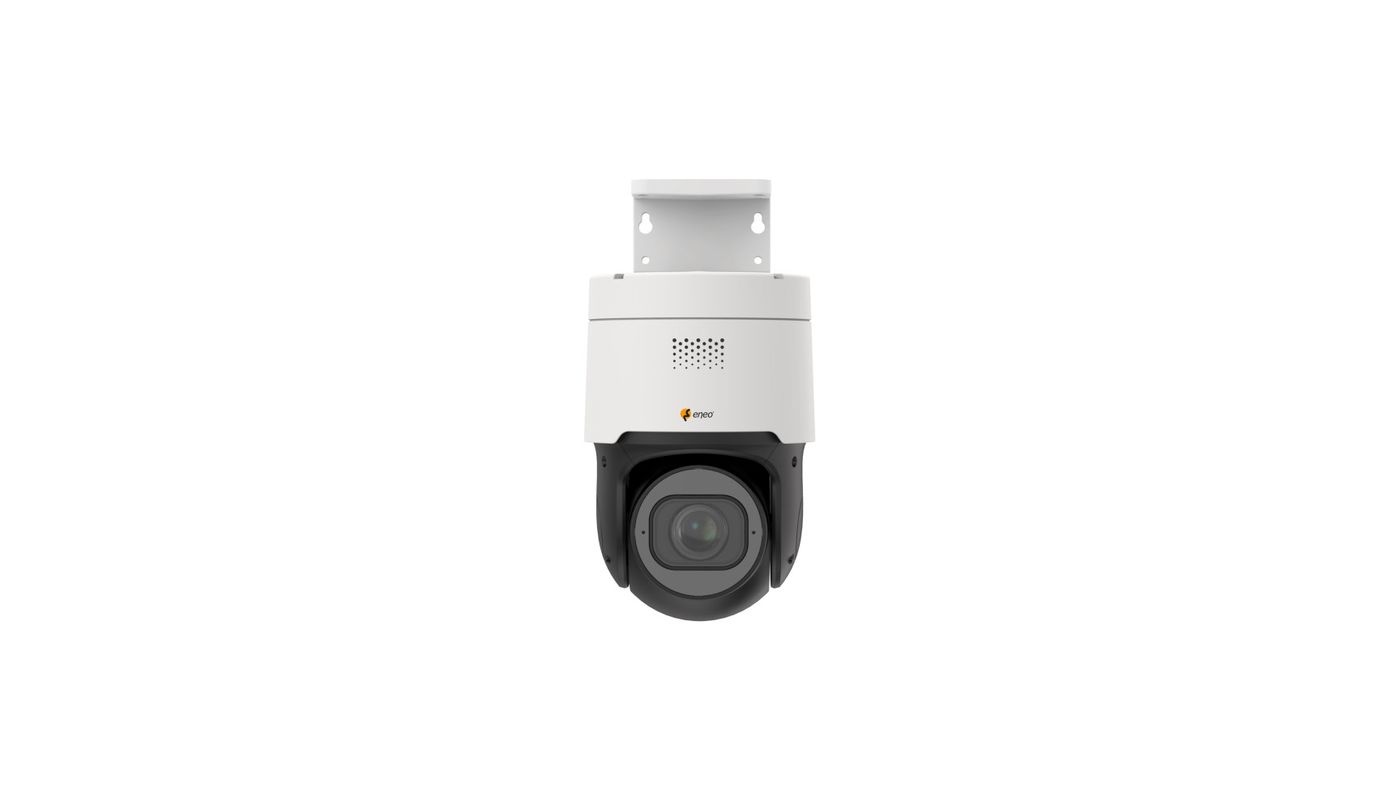

SKU 234752
Network Dome, PTZ, 4x MVF, 3840x2160, Day/Night, WDR, AI, Alarm, Audio, 12V, PoE, IP66

Main Features

1/2.7" CMOS sensor, maximum resolution 8 MP/30fps
AI analysis functions including object classification
D-WDR, 3D-DNR noise reduction
Motorized varifocal lens 2.8-12mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF Profile S and Profile T
Local storage via Micro SD card
Supports audio and external alarm input and output
Power supply 12VDC or PoE IEEE 802.3af
IR LED lighting, IP66, deterrent (light & siren)
Wall and ceiling mounting included
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
PTZ
Sensor size
1/2.7"
Resolution Standard
8 Megapixel
Imager
SmartSens, SC8238, CMOS
Sensitivity
0,009 Lux at F1,6
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1/5 ~ 1/20.000sec.
Automatic electronic shutter (ESC)
1/5 ~ 1/20.000sec.
Wide Dynamic Range (WDR)
D-WDR
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, Image, Time
White balance
Automatic, Manual
Video:

Resolution
3840x2160 (16:9), 2592x1944 (4:3), 2592x1520 (16:9), 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3), 320x240 (4:3)
Image resolution max.
3840x2160
Image display
16:9, 4:3
Stream types
Triple-Stream(Main/Sub/Mobile)
Image Transmission Rate
25 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
Varifocal (motorized)
Focal Length
2,8 - 12 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,8 m
Iris control
DC
DORI:

Detect (25px/m)
90 - 346,2 m
Observe (62 px/m)
35,6 - 139,4 m
Recognize (125 px/m)
17 - 68,6 m
Identify (250 px/m)
8,2 - 35,2 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Alarm processing
recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, Red & bule flashing lights, Audio warning message, Cloud Upload
Presets
255 presets
Home position
n/a
Tours
n/a
Rotation range
355°
Speed (manual)
45°/Sek.
Speed (preset)
45°/Sek.
Audio support
yes
Audio
103±3dB max., 2 Way Audio, built-in loudspeaker, built-in microphone
Password protection
administrator & users
Internal storage
256GB, microSDHC card, microSDXC card
Menu languages
English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
Mirror function
V flip, H-flip
Digital noise reduction (DNR)
3D-DNR, yes
Network:

Network protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interfaces / Inputs/ Outputs:

External connectors
RJ-45, 12VDC input (DC plug), connection cable approx.45cm, micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
no
Alarm outputs
no
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo IN-Series

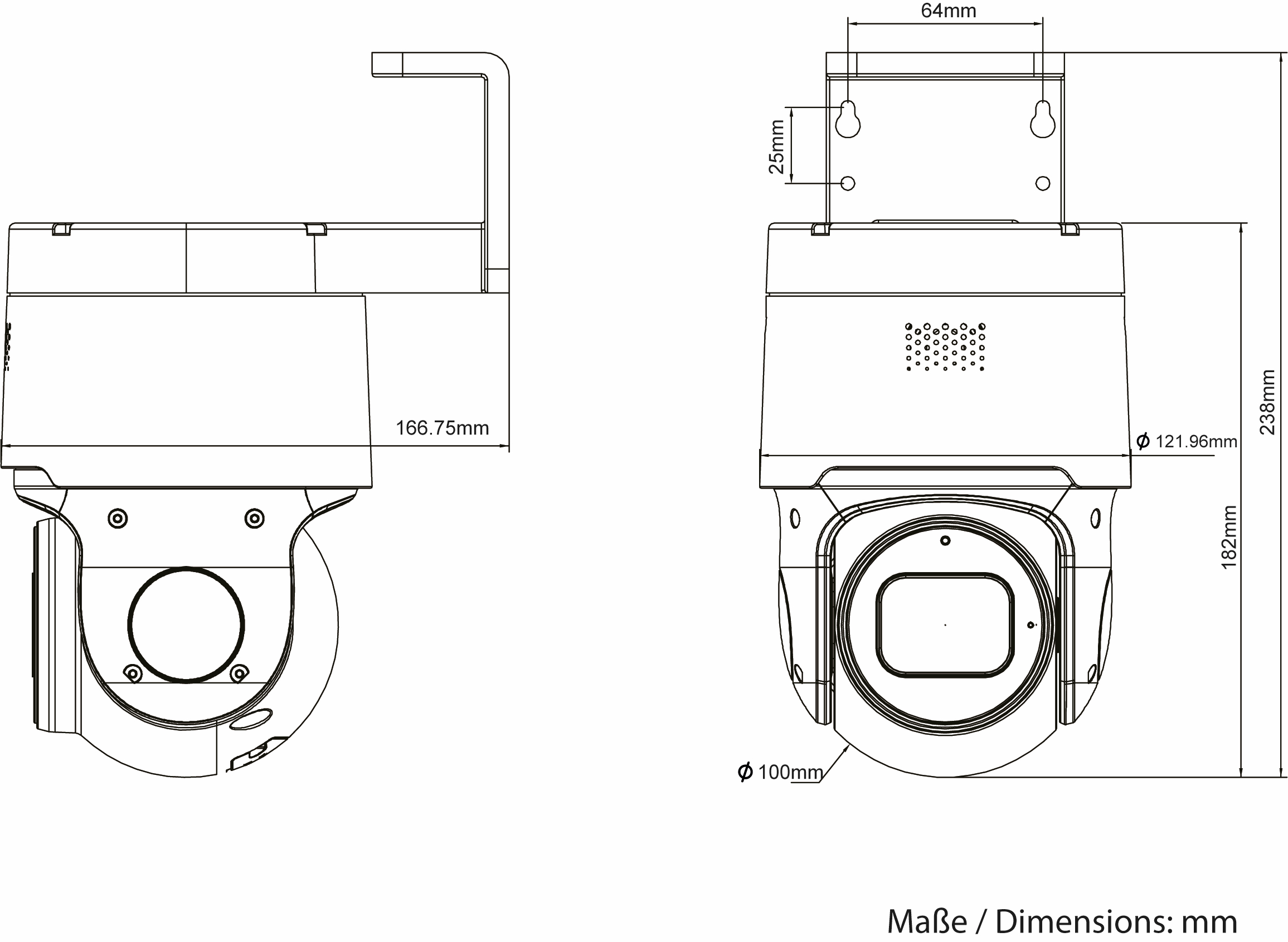

Dimensions (HxWxD)
166,75x238mm
Weight
920g
Illumination
4x High Power LED 850nm, Infrared
Illumination range
approx. 30m
Color (housing)
black, Pantone P 179-1, RAL9003
Housing
Outdoor
Hosuing material
Plastic
Heater
no
Integrated wall mount
no
Camera Type
Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption
13W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Protection rating
IP66
Supply voltage
12VDC, PoE
Operating temperature
-30°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Text display
ON/OFF switchable
Vandal proof
no
EAN/GTIN
4260229840115
Parts supplied:

Parts supplied
manual, wall bracket, bag of screws
Other

Imager
CMOS
Low Speed Shutter
yes
Digital Noise Reduction
yes
Backlight Compensation
BLC, HLC
Wide Dynamic Range (WDR)
D-WDR
Motion Detector
yes
Objektiv Typ
Varifocal (motorized)
Iris Control
DC
llumination
Infrared
Vertical Angle of View
58,4 - 17,6°
Horizontal Angle of View
113 - 31,4°
Supply voltage
12VDC, PoE
Remarks
NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series.
