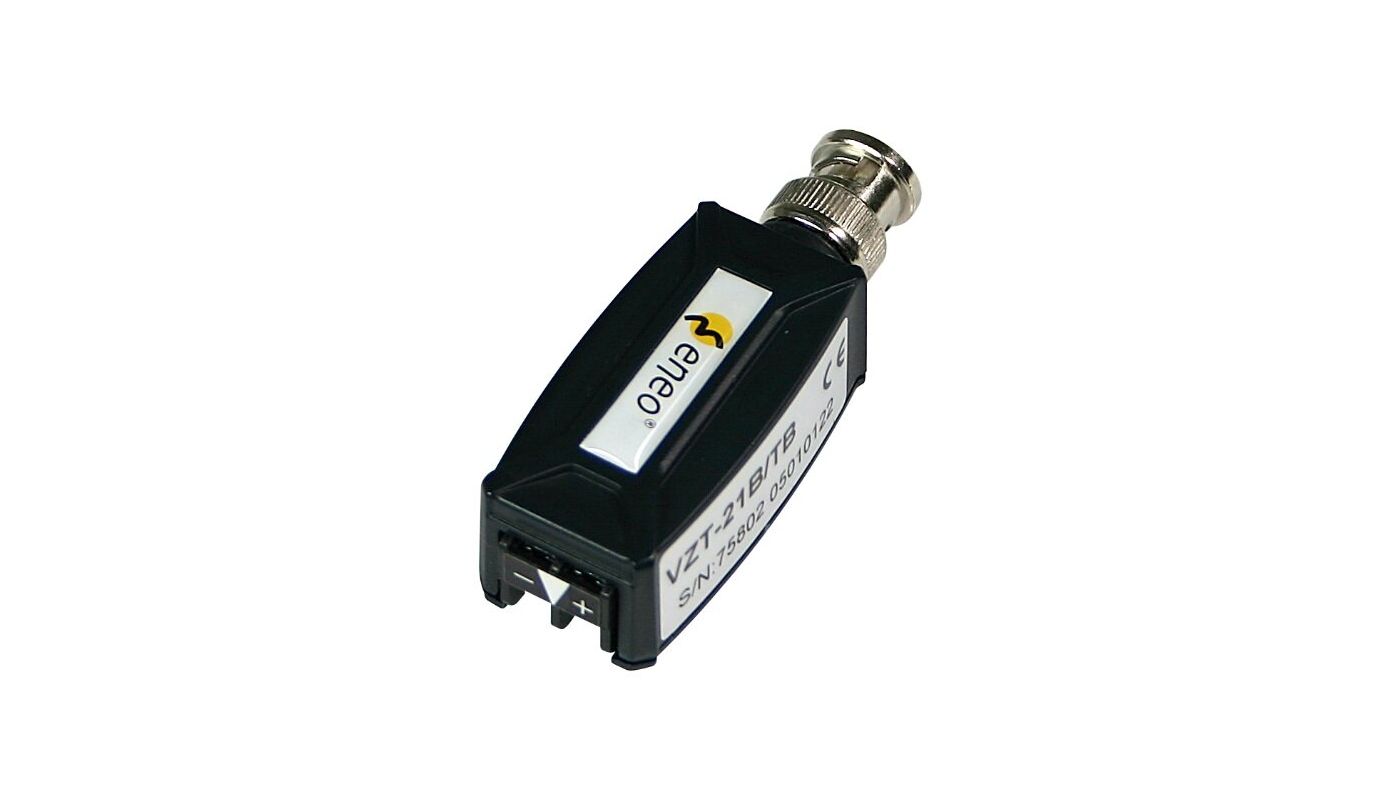

VZT-21B/TB

Passive Twisted Pair Transmitter or Receiver, Compos. In/Output, BNC-T.Block
Art. No.
75802
  • Transmission via CAT 5e(6) UTP cable
  • Up to 400m colour / 600m b&w (at unshielded cable)
  • Approx. 200m colour / 300m b&w (at shielded cable)
  • No adjustment necessary
  • Connectors: BNC plug / 2 pin terminal block
Preferably unshielded twisted-pair cables should be used for the signal transmission. Are there already existing shielded cables which have to be used, the shield must only be earthed on one end, e. g. on transmitter side. We recommend cables in a twisted 2- pair wire bundle configuration (n2x2x0.8mm). The best result will be achieved by using cables with a twist of up to 7-times per meter. Shielded cables, cables with different wire diam., or a connection via patch fields, can considerably reduce the max. possible transmission length.
Specifications
Signal transmission video
Operation mode passive
Dimensions (HxWxD) 22x25x54mm (w./o. BNC plug)
Weight 30g
Model mini module
Range 400 m
Colour black
Housing plastic
Type of unit transmitter / receiver
Protection rating n/a
Supply voltage -
Operating temperature -5°C ~ +55°C
Downloads
Documents PDF Data sheet with specifications, generated live from the product database
Documents PDF Declaration of Conformity in German and English
Media ZIP Product Image in a high resolution for print
