VM-UHD32M

  • VM-UHD32M
  • VM-UHD32M

New

VM-UHD32M

Art. No.: 229168

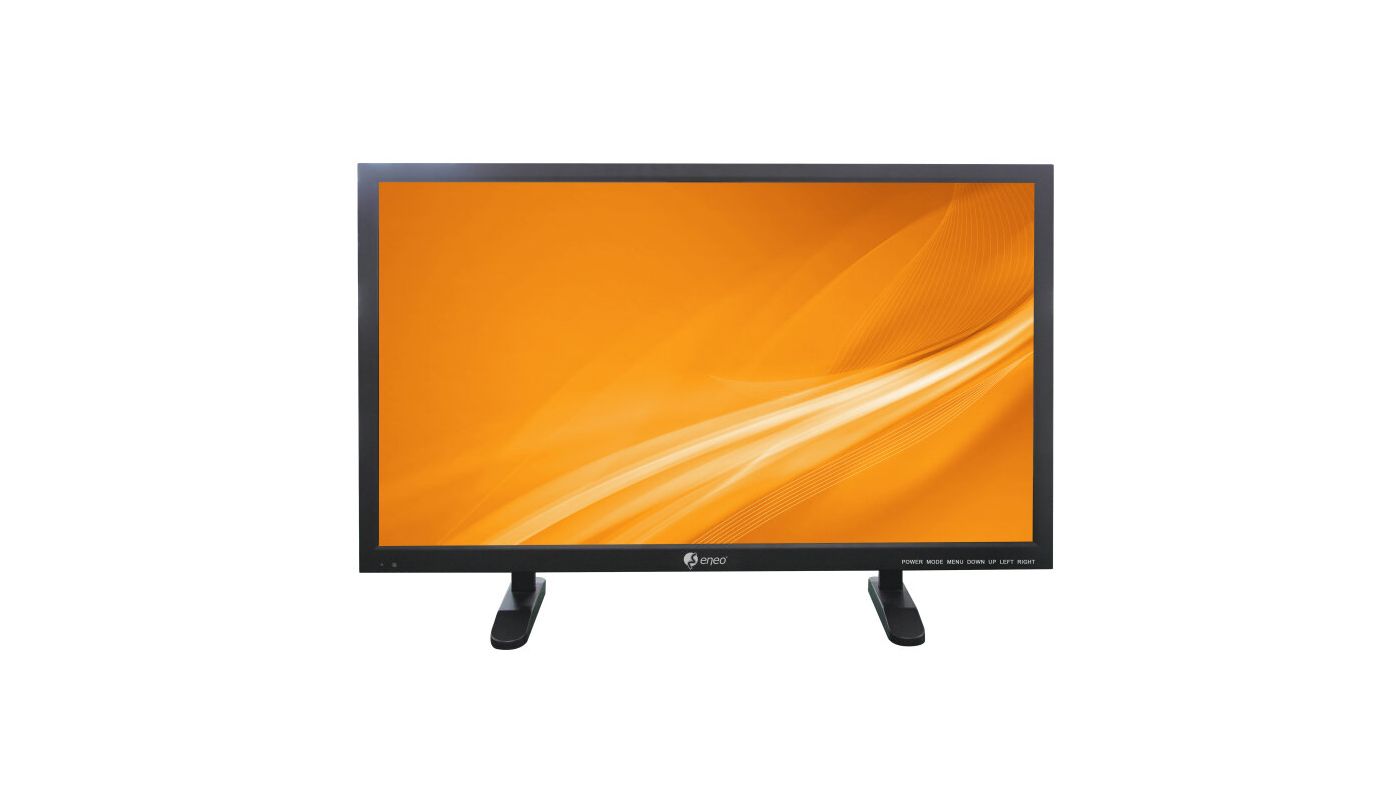

32" (81cm) LCD Monitor, 4K UHD, 3840x2160, LED, USB, DisplayPort, HDMI, DVI, VGA

Mainfeatures

  • Professional 32"(81cm) LCD monitor
  • Maximum resolution 4K UHD 3840x2160 pixels
  • Media player integrated (USB)
  • LED Back Light
  • Perfect presentation through digital 3D filtering and noise reduction
  • Built to run 24x7x365 continuously
  • Different video inputs DisplayPort, HDMI, DVI, VGA
  • Built-in speakers
  • Including stand
  • Metal housing (suitable for industrial use)

Specifications

Resolution 3840x2160 (16:9)
Synchronization internal
Display:
Aspect ratio 16:9
Resolution pixels 3840x2160
Display element Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :25%
Contrast ratio typical 1000:1
Response time typical 5 ms
Brightness typical 350 cd/m²
Backlighting LED
Viewing angle vertical 178 °
Viewing angle horizontal 178 °
Screen size 32"
Screen Size (cm) 81.3 cm
Pixel format 0,51075mm x 0,51075mm
Pixel fault class ISO 13406-2, Class II
Video standard PAL/NTSC
Features:
Comb filter 3D comb filter with de-interlace
Menu languages English
Interfaces / Inputs / Outputs:
Video inputs (type) VGA, HDMI, DVI, DisplayPort, composite (CVBS), USB2.0
Audio inputs 1x 3.5mm jack, 2
Audio output 1x 3,5mm jack
Serial interfaces no
General:
Dimensions (HxWxD) 412x712x60,2mm
Mount VESA standard 100x100mm
Housing material metal / plastic
Housing color black
Weight 18kg
Loudspeaker 2
Power consumption 42W
Supply voltage (100 ~ 240VAC) 50/60Hz
Temperature range (operation) -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
Scope of delivery:
Parts supplied manual, IR remote controller, power cord, feet set, VGA cable

Special features

Mediaplayer function, supported standards: RMVB; MPG; AVI; MP4; JPG; JPEG; PNG at maximum resolution of 1920x1080 pixels.

Drawings

Product recommendations

  • (2 products found)

    • (0 products found)

Downloads

Label Format File size Description download
Documents
PDF <350 KB Data sheet with specifications, generated live from the product database Start Download
DOC <50 KB Technical data as a Microsoft Word document, generated live from the product database Start Download
PDF 4723.99 KB Detailed manual for this product Start Download
PDF 100.98 KB Declaration of Conformity in German and English Start Download
ZIP 361.35 KB Product Image in a high resolution for print Start Download
