SKU 224195

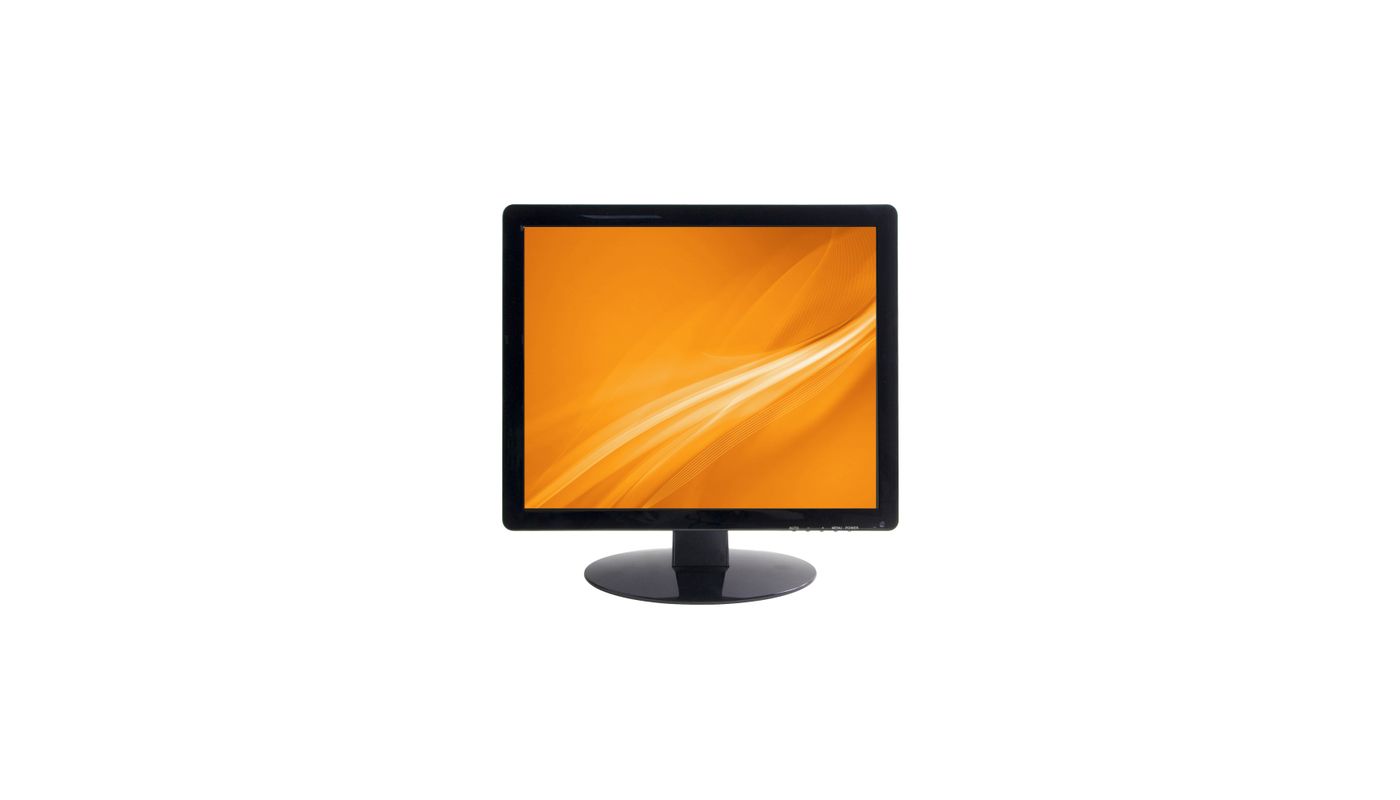

19" (48cm) LCD Monitor HD 1280x1024, LED, HDMI, VGA, Composite

Main Features

Professional 19" (48 cm) LCD monitor
Industrial design built to run 24x7x365 continuously
Maximum resolution 1280x1024 pixels
LED Back Light
Fast response time 5ms
Perfect presentation through digital 3D filtering and noise reduction
Different video inputs HDMI, VGA, Composite
Built-in speakers
Supply Voltage: 12VDC
Plastic cabinet including stand
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Video:

Resolution
1280x1024, 1024x768 , 800x600, 720x400
Display:

Refresh rate
60 Hz
Aspect ratio
5:4
Resolution Pixels
1280x1024
Contrast ratio typical
1000:1
Reponse time typical
5 ms
Brightness typical
300 cd/m²
Backlighting
LED
Viewing angle vertical
178°
Viewing angle horzontal
178°
Screen size (inch)
19"
Screen size (cm)
48 cm
Pixel format
0,294mm x 0,294mm
Pixel fault class
ISO 13406-2, Class II
Video standard
PAL/NTSC
Functions:

Comb filter
3D comb filter with de-interlace
Menu languages
English
Interfaces / Inputs/ Outputs:

Video inputs (type)
2x composite (CVBS), HDMI, VGA
Video inputs
HDMI 1.4a, HDCP 2.2, HDCP 1.4
Video outputs
Composite (CVBS)
Video outputs
Composite (CVBS)
Audio inputs
1
Audio inputs
1x 3.5mm jack, 1
Audio output
1x 3,5mm jack
Serial interfaces
no
General:

Brand
ENEO
Series
eneo Monitor
Dimensions (HxWxD)
350.90x425,1x44,80mm
Weight
3,9kg
Mount
VESA standard 75x75mm
Hosuing material
Plastic
Housing color
black
Loudspeaker
2
Power consumption
26.5W
Supply voltage
12VDC
Operating temperature
-30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
Parts supplied:

Parts supplied
manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet
Other

Display element
Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :3%
Applications
24/7
Manufacturer order number
224195

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Detailed manual for this product
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 202.9 kB
