eneo VM-HD19MR
SKU
229200

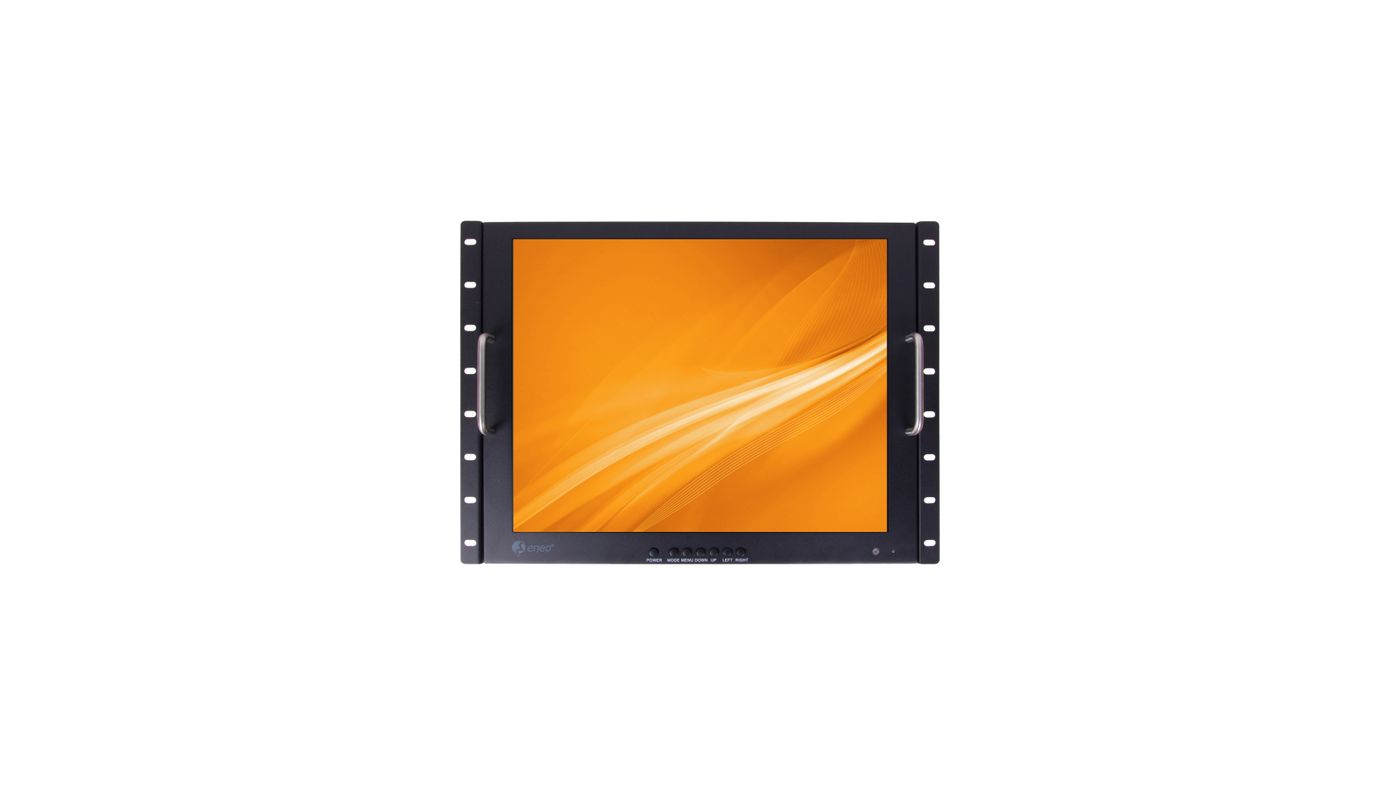

19" (48cm) LCD, industrial Monitor, 1280x1024, Protection Glass, Rack Mount, 12V, HDMI
Main Features
Professional 19" (48 cm) LCD monitor
Built to run 24x7x365 continuously (Industrial Level)
Including protection glass, Anti-Glare-Display 3H
Extended temperature range -30°C +85°C
Maximum resolution 1280x1024 pixels
LED Back Light
Fast response time 5ms
Different video inputs HDMI, VGA, BNC (CVBS)
Audio In- and Output
Built-in speakers
Supply voltage: 12VDC
Including 19" mounting frame
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Brand
- ENEO
- EAN/GTIN
- 4260229841198
- Manufacturer order number
- 229200
- Series
- eneo Monitor
Video
- Maximum Image Resolution (H x V)
- 1280x1024
- Resolution (extended)
- 800x600,1024x768,1280x1024
Display
- Aspect ratio
- 5:4
- Backlight
- LED
- Brightness (typical)
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Display
- Anti-glare display, Color TFT-LCD, Hard coating (3H)
- Display element
- Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :3%
- Pixel error class
- ISO 13406-2, Class 2
- Refresh rate
- 60 Hz
- Response time (typical)
- 5 ms
- Screen diagonal (cm)
- 48 cm
- Screen diagonal (inches)
- 19 "
- Viewing Angle Horizontal
- 178 °
- Viewing Angle Vertical
- 178 °
Functions
- Comb filter
- Yes
- Menu languages
- English
Interfaces / Inputs/ Outputs
- Audio Inputs
- 1
- Transmission Technology
- HDCP 1.4, HDCP 2.2, HDMI 1.4a
- Video Inputs
- 2x Composite (FBAS), HDMI, VGA
- Video Outputs
- Composite (FBAS)
General
- Applications
- Industry
- Color (Housing)
- Black
- Dimensions (WxHxD) (extended)
- 482x355x48mm
- Energy efficiency class
- E
- Fortification
- VESA Standard 100x100mm, VESA Standard 75x75mm
- Housing material
- Metal
- Power consumption
- 20 W
- Power supply
- 12VDC
- Weight
- 3 kg
Parts supplied
- Scope of delivery
- manual,power cord,PSU 100~240VAC,IR remote controller,HDMI cable
Notes
- Remark
- NDAA compliance under Section 889
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Data sheet PDF | 744.2 kB
- Manufacturer data sheet (german)
- Manual PDF | 12.3 MB
- Manual for this product (english)
- Manual JPG | 419 kB
- Technical Drawing
- Marketing PDF | 242 kB
- NDAA compliant products
- Hi-Res images ZIP | 227 kB
- Product image in a high resolution
- Declaration of conformity PDF | 120.4 kB
- Declaration of conformity (german and english)
- Declaration of conformity PDF | 148.6 kB
- PPWR Declaration of Conformity (Packaging)
