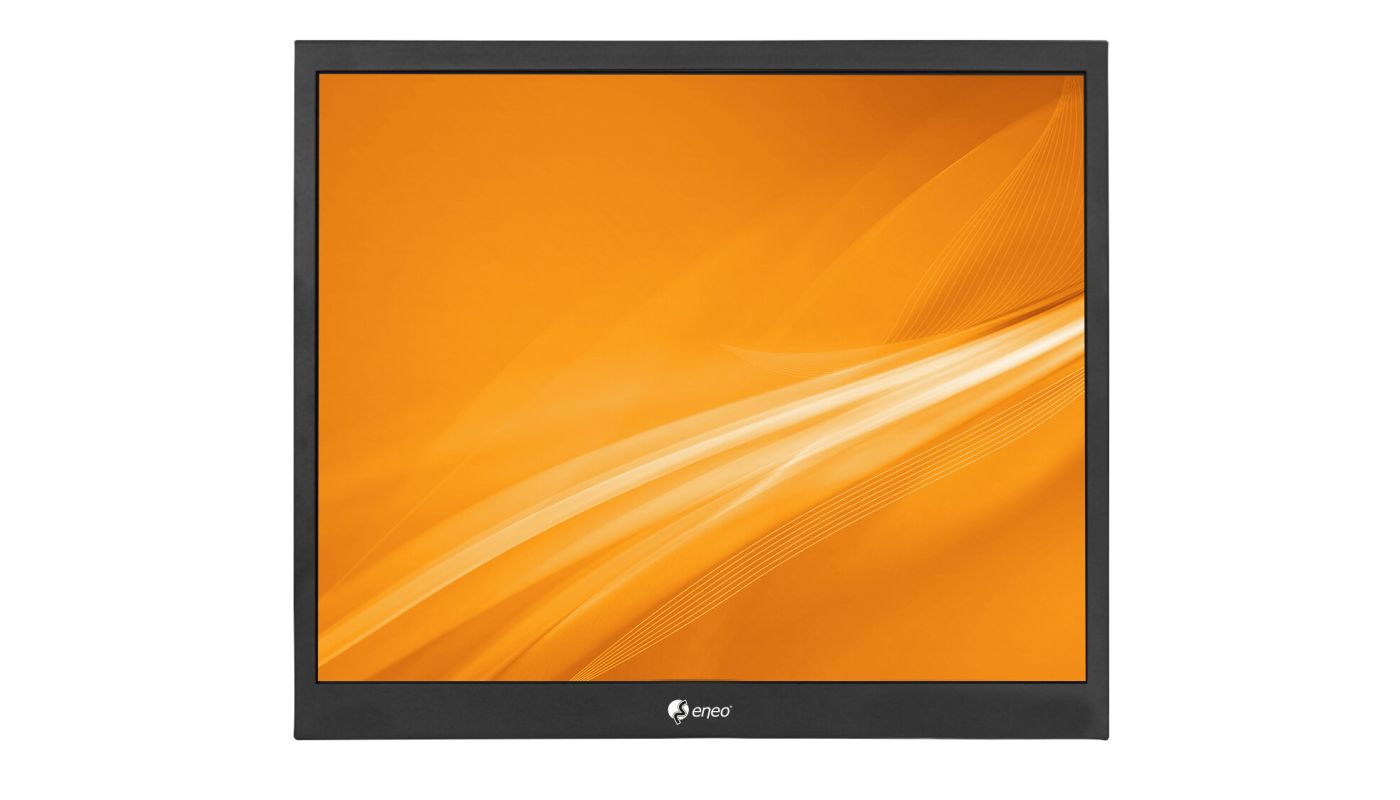

eneo VM-HD19MPA
SKU
233036
19" (48cm) LCD, Industrial Monitor, 1280x1024, HDMI, VGA, Composite, Protection Glass
Main Features
Professional 19" (48 cm) LCD monitor
Built to run 24x7x365 continuously (Industrial Level)
Including protection glass, Anti-Glare-Display 3H
Maximum resolution 1280x1024 pixels
LED Back Light
Fast response time 5ms
Different video inputs HDMI, VGA, BNC (CVBS)
Audio In- and Output
Built-in speakers
Metal cabinet including wall mount
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 233036
- Brand
- ENEO
- Series
- eneo Monitor
Video
- Maximum Image Resolution (HV)
- 1280x1024
Display
- Display element
- Colour TFT/LCD, Anti-Glare-Display, Haze: 89%, Protection Glass, Not anit-glare type, Hard coating (6.5H)
- Display
- Anti-glare display, Glass, Hard coating (6.5H), Haze: 89%, Not anit-glare type
- Refresh rate
- 60 Hz
- Aspect ratio
- 5:4
- Contrast ratio (typical)
- 1000:1
- Response time (typical)
- 14 ms
- Brightness (typical)
- 250 cd/m²
- Backlight
- LED
- Viewing Angle Vertical
- 178 °
- Viewing Angle Horizontal
- 178 °
- Screen diagonal (inches)
- 19 "
- Screen diagonal (cm)
- 48 cm
- Pixel error class
- ISO 13406-2, Class 2
Functions
- Comb filter
- Yes
- Menu languages
- English, French, German, Italian
Interfaces / Inputs/ Outputs
- Video Inputs
- Composite (FBAS), HDMI, VGA
- Transmission Technology
- HDCP 1.4, HDMI 1.4a
- Video Outputs
- Composite (FBAS)
- Audio Inputs
- 1
General
- Applications
- 24/7
- Dimensions (WxHxD) (extended)
- 401x341x48,3mm
- Weight
- 4.1 kg
- Fortification
- VESA Standard 100x100mm
- Color (Housing)
- Black
- Housing material
- Metal
- Power consumption
- 25 W
- Energy efficiency class
- F
Parts supplied
- Scope of delivery
- manual,power cord,wall bracket,remote controller with two batteriesHDMI cable
Notes
- Remark
- NDAA compliance under Section 889
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Data sheet PDF | 1.3 MB
- Manufacturer data sheet (german)
- Data sheet PDF | 1.3 MB
- Manufacturer data sheet (english)
- Manual PDF | 437.7 kB
- Manual for this product (german)
- Manual JPG | 824.5 kB

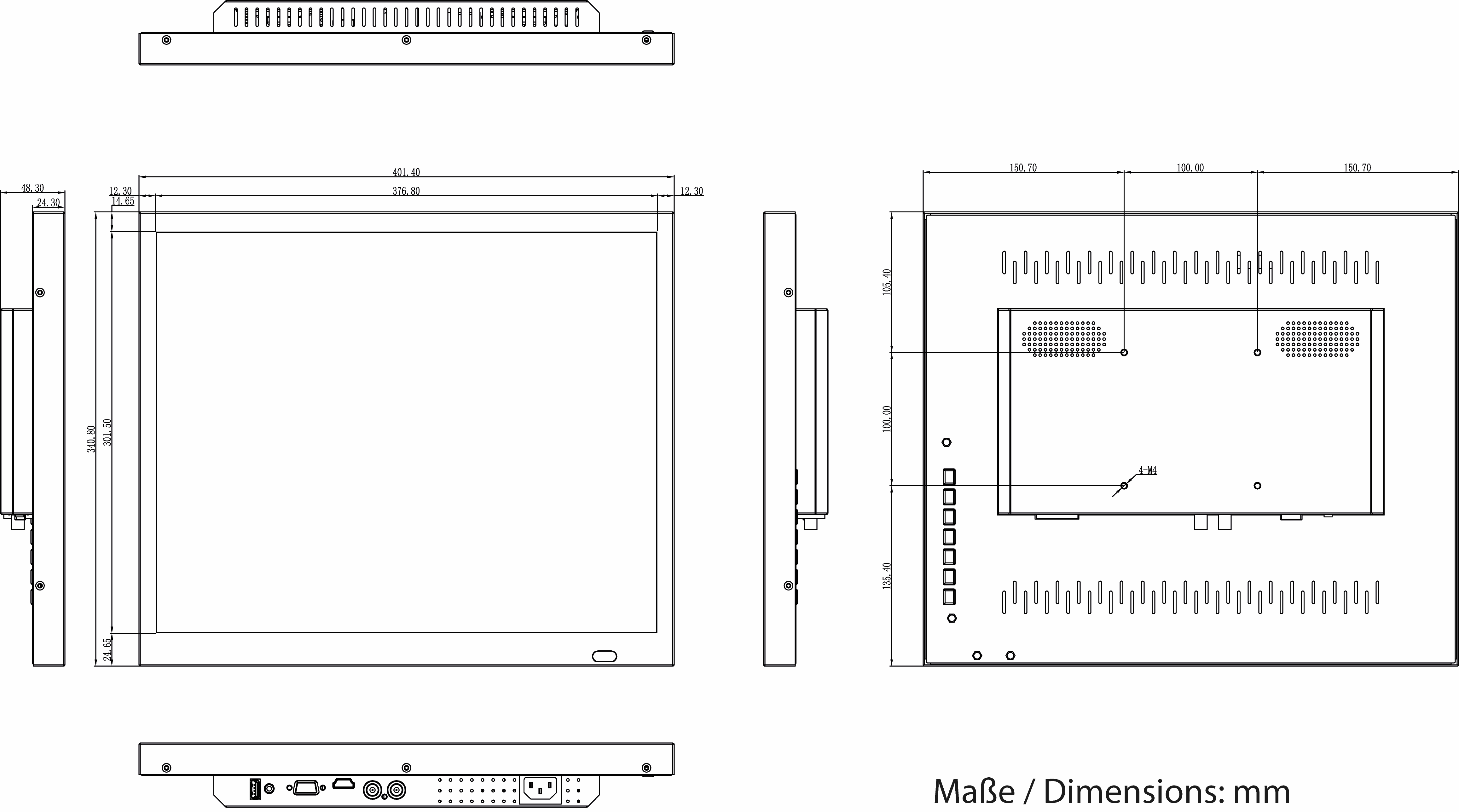

- Technical Drawing
- Manual PDF | 437.7 kB
- Manual for this product (english)
- Marketing PDF | 165.3 kB
- NDAA compliant products
- Hi-Res images ZIP | 61 kB
- Product image in a high resolution
- Declaration of conformity PDF | 100.8 kB
- Declaration of conformity (german and english)
