    VM-HD17P

    Art. No.: 224194

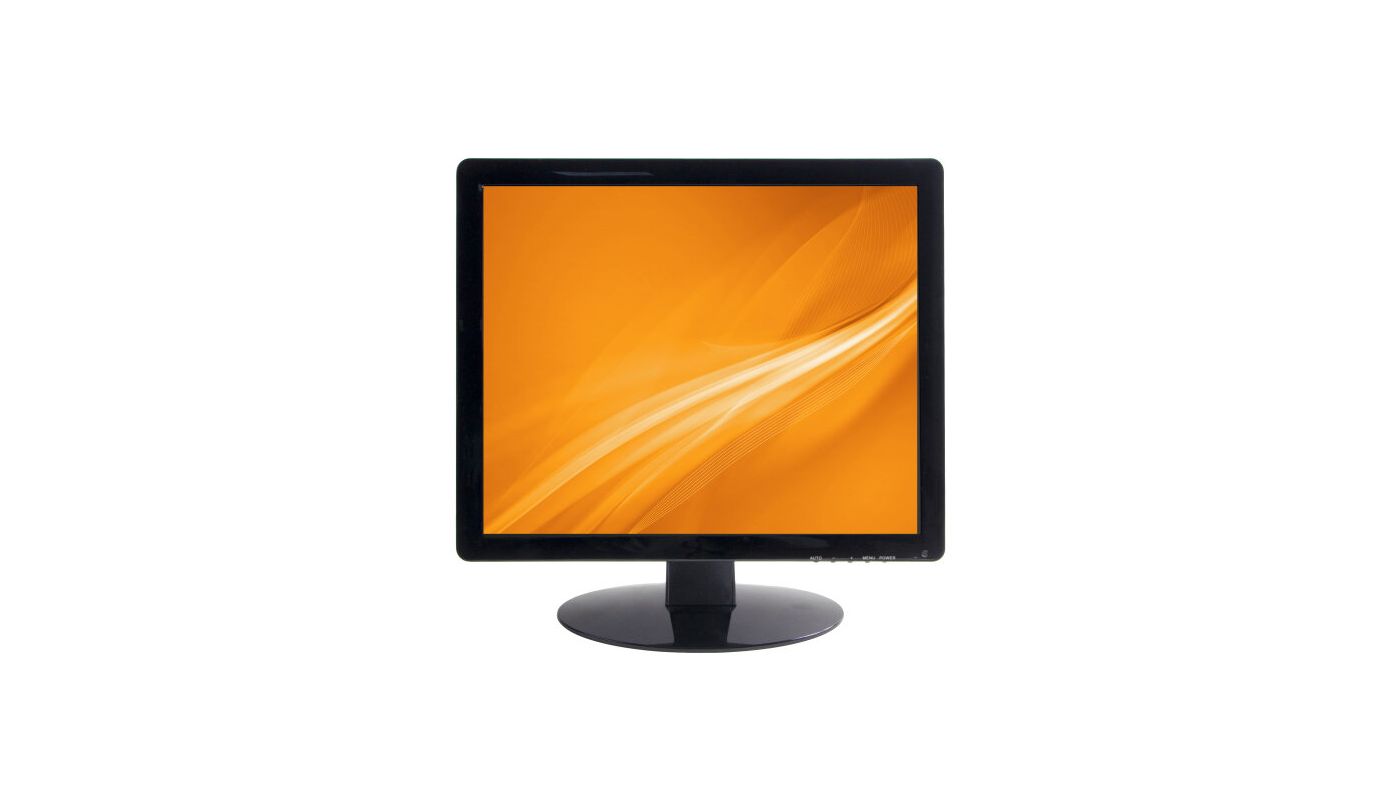

    17" (43cm) LCD Monitor HD, 1280x1024, LED, HDMI, VGA, BNC

    Mainfeatures

    • Professional 17" (43 cm) LCD monitor
    • Industrial design built to run 24x7x365 continuously
    • Maximum resolution 1280x1024 pixels
    • LED Back Light
    • Fast response time 5ms
    • Perfect presentation through digital 3D filtering and noise reduction
    • Different video inputs HDMI, VGA, Composite
    • Built-in speakers
    • Supply Voltage: 12VDC
    • Plastic cabinet including stand

    Specifications

    Resolution 1280x1024 (5:4)
    Synchronization internal
    Display:
    Aspect ratio 4:3
    Resolution pixels 1280x1024
    Contrast ratio typical 1000:1
    Response time typical 5 ms
    Brightness typical 250 cd/m²
    Backlighting LED
    Viewing angle vertical 170 °
    Viewing angle horizontal 170 °
    Screen size 17"
    Screen Size (cm) 43,2 cm
    Pixel format 0,264mm x 0,264mm
    Pixel fault class ISO 13406-2, Class II
    Video standard PAL/NTSC
    Features:
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, HDMI, 2x composite (CVBS)
    Audio inputs 1x 3.5mm jack, 1
    Audio output 1x 3,5mm jack
    General:

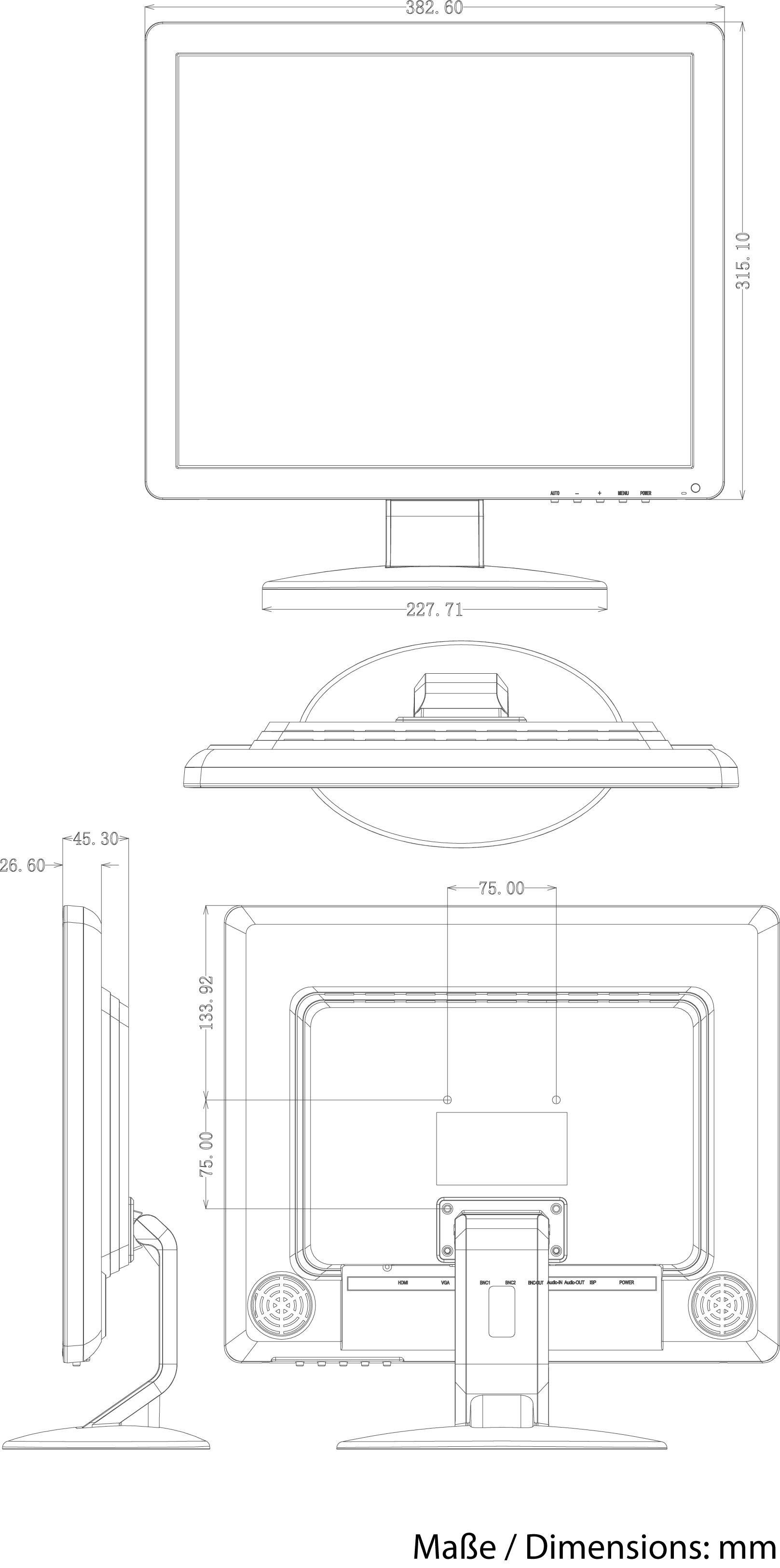

    Dimensions (HxWxD) 382,60x315x45,30mm
    Total height with stand 370,5mm
    Mount VESA standard 75x75mm
    Housing material plastic
    Housing color black
    Weight 2.5kg
    Loudspeaker 2
    Power consumption 15W
    Supply voltage 12VDC
    Temperature range (operation) -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
    Scope of delivery:
    Parts supplied manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet

    Product recommendations

    • (4 products found)

      • (0 products found)

    Downloads

    Label Format File size Description download
    Documents
    PDF <350 KB Data sheet with specifications, generated live from the product database Start Download
    DOC <50 KB Technical data as a Microsoft Word document, generated live from the product database Start Download
    PDF 12644.3 KB Detailed manual for this product Start Download
    PDF 108.6 KB Declaration of Conformity in German and English Start Download
