Art. No.: 217912

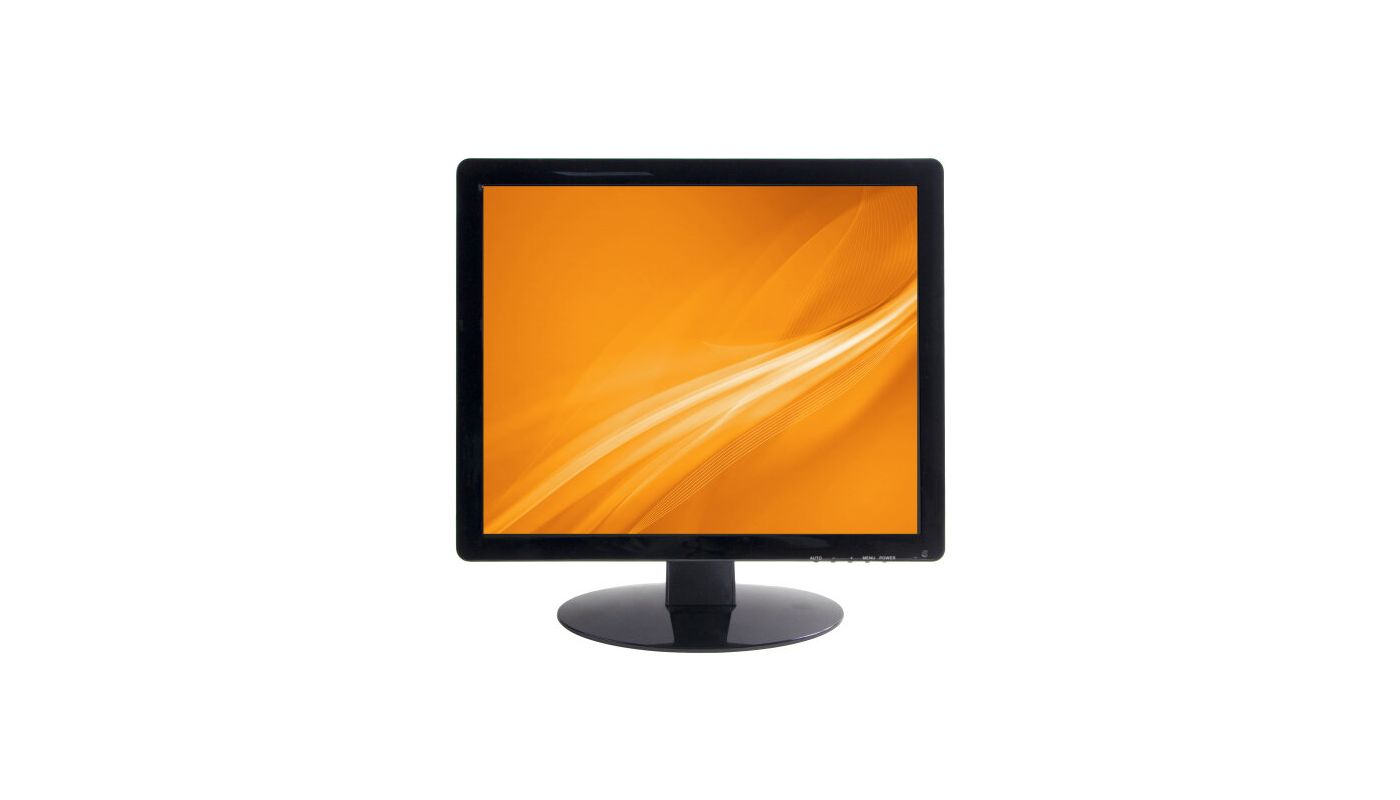

    15" (38cm) LCD Monitor HD, 1024x768, LED, HDMI, VGA, Composite


    • Professional 15" (38 cm) LCD monitor
    • Industrial design built to run 24x7x365 continuously
    • Maximum resolution 1024x768 pixels
    • LED Back Light
    • Fast response time 5ms
    • Perfect presentation through digital 3D filtering and noise reduction
    • Different video inputs HDMI, VGA, Composite
    • Supply voltage: 12VDC
    • Plastic cabinet including stand


    Resolution pixels 1024x768
    Video standard NTSC/PAL
    Resolution 1024x768 (4:3)
    Aspect ratio 4:3
    Contrast ratio typical 700:1
    Response time typical 5 ms
    Brightness typical 350 cd/m²
    Backlighting LED
    Viewing angle vertical 178 °
    Viewing angle horizontal 178 °
    Screen size 15"
    Screen Size (cm) 38 cm
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, HDMI, 2x composite (CVBS)
    Audio inputs 1x 3.5mm jack, 1
    Audio output 1x 3,5mm jack
    Serial interfaces no

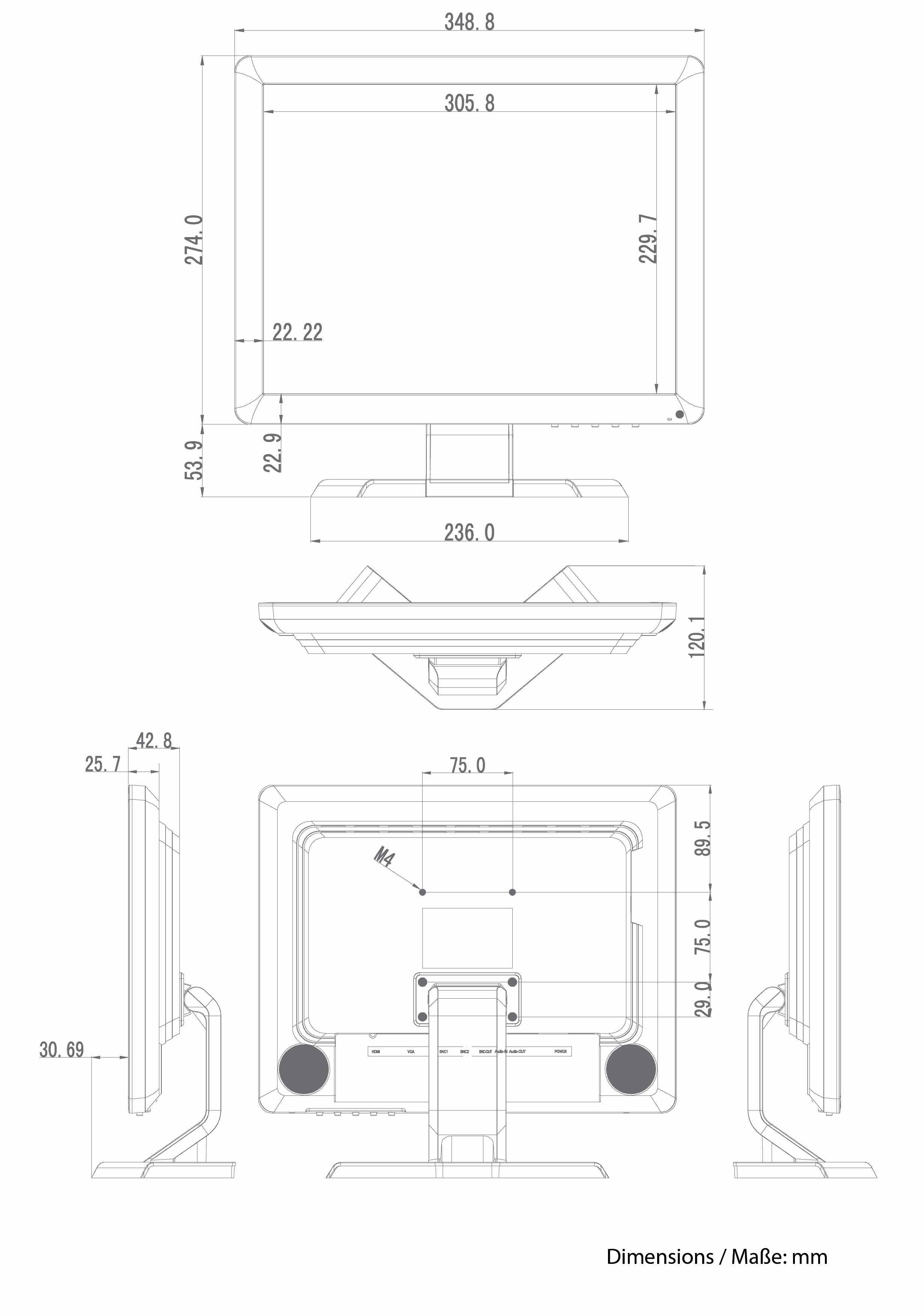

    Dimensions (HxWxD) 274x348,8x42,8mm
    Mount VESA standard 75x75mm
    Housing material plastic
    Housing color black
    Weight 2.0kg
    Loudspeaker 2
    Power consumption 10W
    Supply voltage 12VDC
    Temperature range (operation) -30°C ~ +85°C
    Scope of delivery:
    Parts supplied manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet
