Mainfeatures

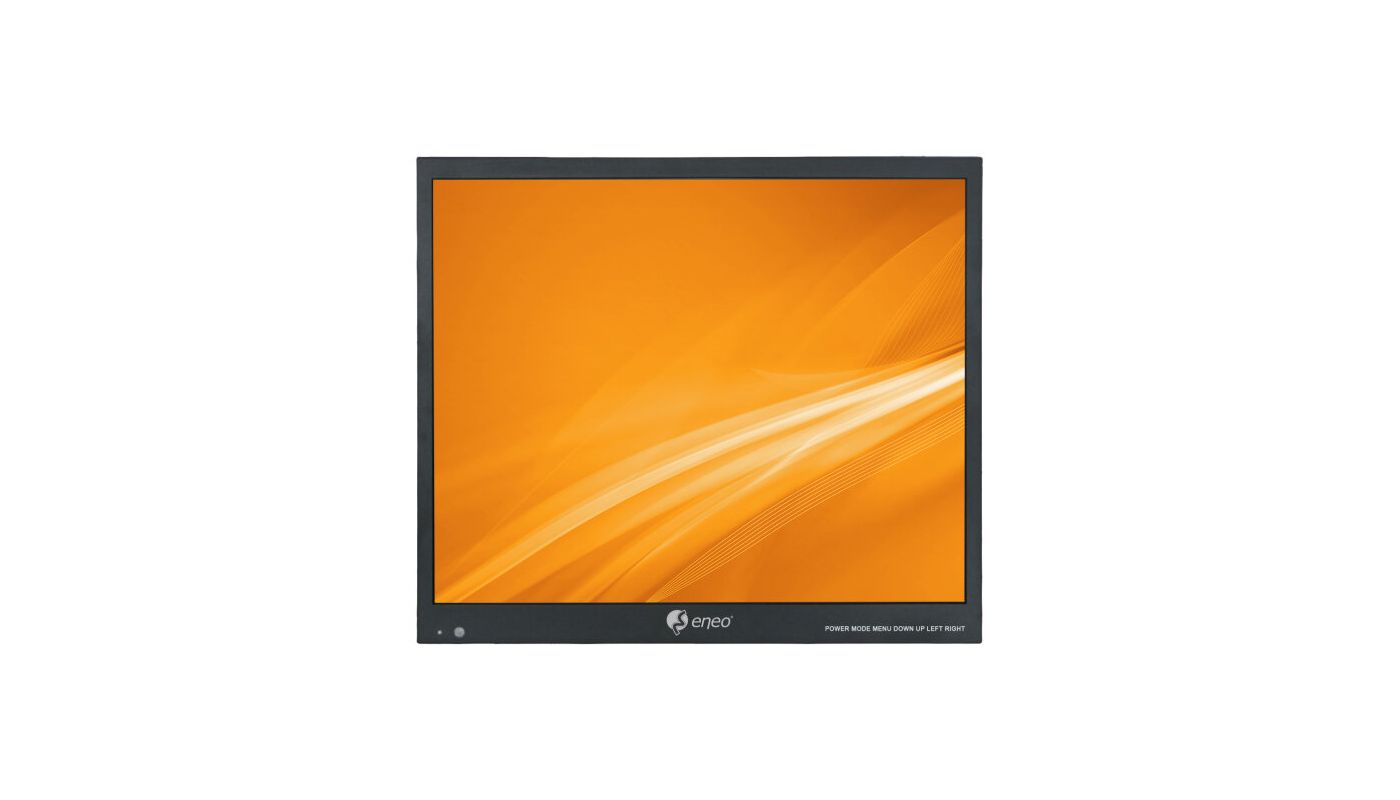

- Professional 15" (38 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1024x768 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI,VGA, Composite
- Built-in speakers
- Supply voltage: 12VDC
- Metal cabinet including stand
Specifications
| Resolution | 1024x768 (4:3) |
| Synchronization | internal |
| Display: | |
| Aspect ratio | 4:3 |
| Resolution pixels | 1024x768 |
| Contrast ratio typical | 800:1 |
| Response time typical | 5 ms |
| Brightness typical | 300 cd/m² |
| Backlighting | LED |
| Viewing angle vertical | 178 ° |
| Viewing angle horizontal | 178 ° |
| Screen size | 15" |
| Screen Size (cm) | 38 cm |
| Pixel format | 0,248mm x 0,248mm |
| Pixel fault class | ISO 13406-2, Class II |
| Video standard | PAL/NTSC |
| Features: | |
| Comb filter | 3D comb filter with de-interlace |
| Menu languages | English |
| Interfaces / Inputs / Outputs: | |
| Video inputs (type) | VGA, HDMI, 2x composite (CVBS) |
| Audio inputs | 1x 3.5mm jack, 1 |
| Audio output | 1x 3,5mm jack |
| Serial interfaces | no |
| General: | |
| Dimensions (HxWxD) | 270x329x58mm |
| Mount | VESA standard 75x75mm |
| Housing material | metal |
| Housing color | black |
| Weight | 5.5kg |
| Loudspeaker | 2 |
| Power consumption | 15W |
| Supply voltage | 12VDC |
| Temperature range (operation) | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
| Scope of delivery: | |
| Parts supplied | manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet |
Drawings
