VM-FHD43M

    • VM-FHD43M
    • VM-FHD43M

    VM-FHD43M

    Art. No.: 217917

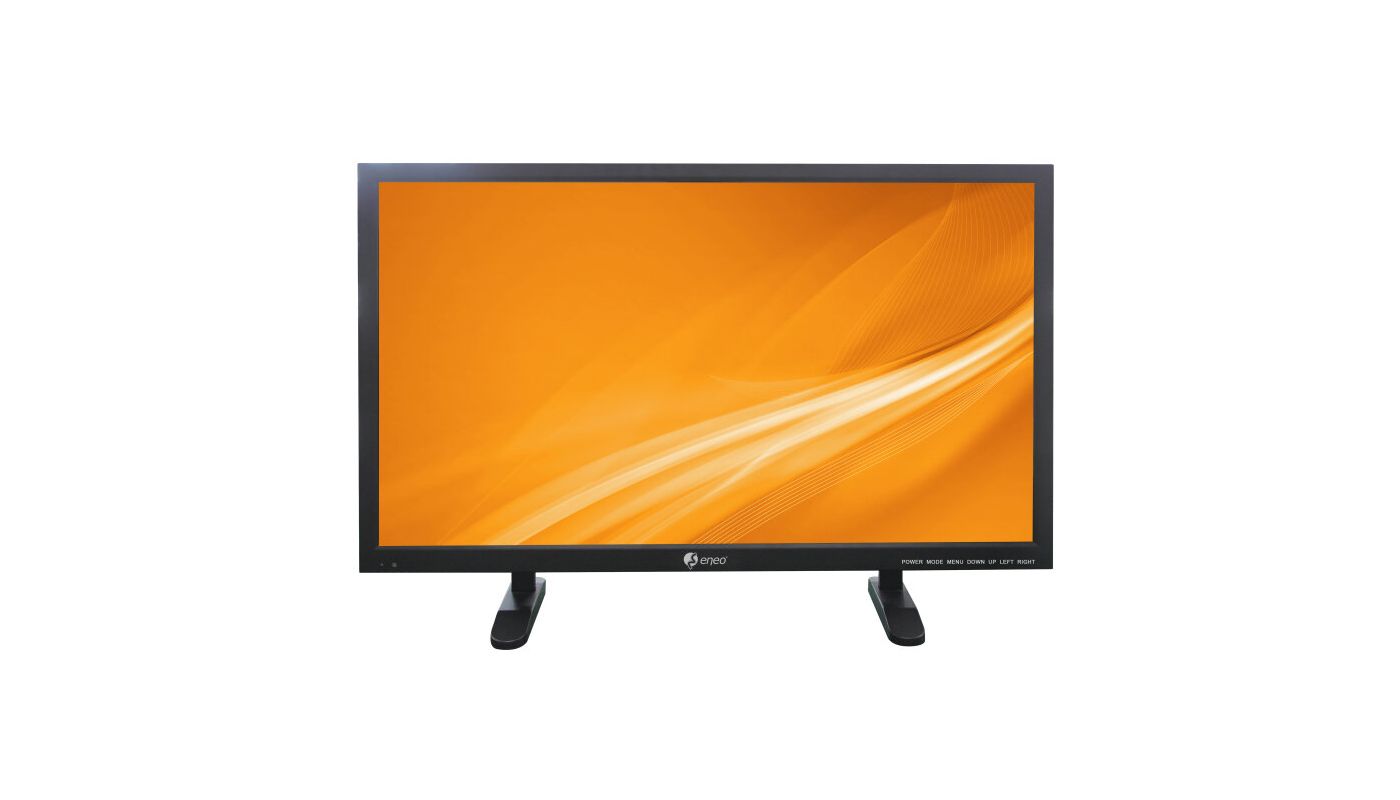

    43" (109cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA Composite, Metal cabinet

    Mainfeatures

    • Professional 43" (109 cm) LCD monitor
    • Industrial design built to run 24x7x365 continuously
    • Maximum resolution 1920x1080 pixels
    • LED Back Light
    • Fast response time 5ms
    • Perfect presentation through digital 3D filtering and noise reduction
    • Different video inputs HDMI, VGA, Composite
    • Built-in speakers
    • Supply voltage: 240-100VAC, 50/60Hz
    • Metal cabinet including stand

    Specifications

    Resolution 1920x1080 (16:9)
    Synchronization internal
    Display:
    Aspect ratio 16:9
    Resolution pixels 1920x1080
    Contrast ratio typical 3500:1
    Response time typical 5 ms
    Brightness typical 350 cd/m²
    Backlighting LED
    Viewing angle vertical 178 °
    Viewing angle horizontal 178 °
    Screen size 43"
    Screen Size (cm) 109 cm
    Pixel format 0,4902mm x 0,4902mm
    Pixel fault class ISO 13406-2, Class II
    Video standard PAL/NTSC
    Features:
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, HDMI, 2x composite (CVBS)
    Audio inputs 1x 3.5mm jack, 1
    Audio output 1x 3,5mm jack
    Serial interfaces no
    General:
    Dimensions (HxWxD) 576,5x972,1x100,1mm
    Total height with stand 680mm
    Mount VESA standard 200x200mm
    Housing material metal
    Housing color black
    Weight 20kg
    Loudspeaker 2
    Power consumption 80W
    Supply voltage 100 ~ 240VAC, 50/60Hz
    Temperature range (operation) -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
    Scope of delivery:
    Parts supplied manual, power cord, IR remote controller, VGA cable, feet set

    Drawings

    Downloads

    Label Format File size Description download
    Documents
    PDF <350 KB Data sheet with specifications, generated live from the product database Start Download
    DOC <50 KB Technical data as a Microsoft Word document, generated live from the product database Start Download
    PDF 4272.41 KB Detailed manual for this product Start Download
    PDF 138.42 KB Declaration of Conformity in German and English Start Download
