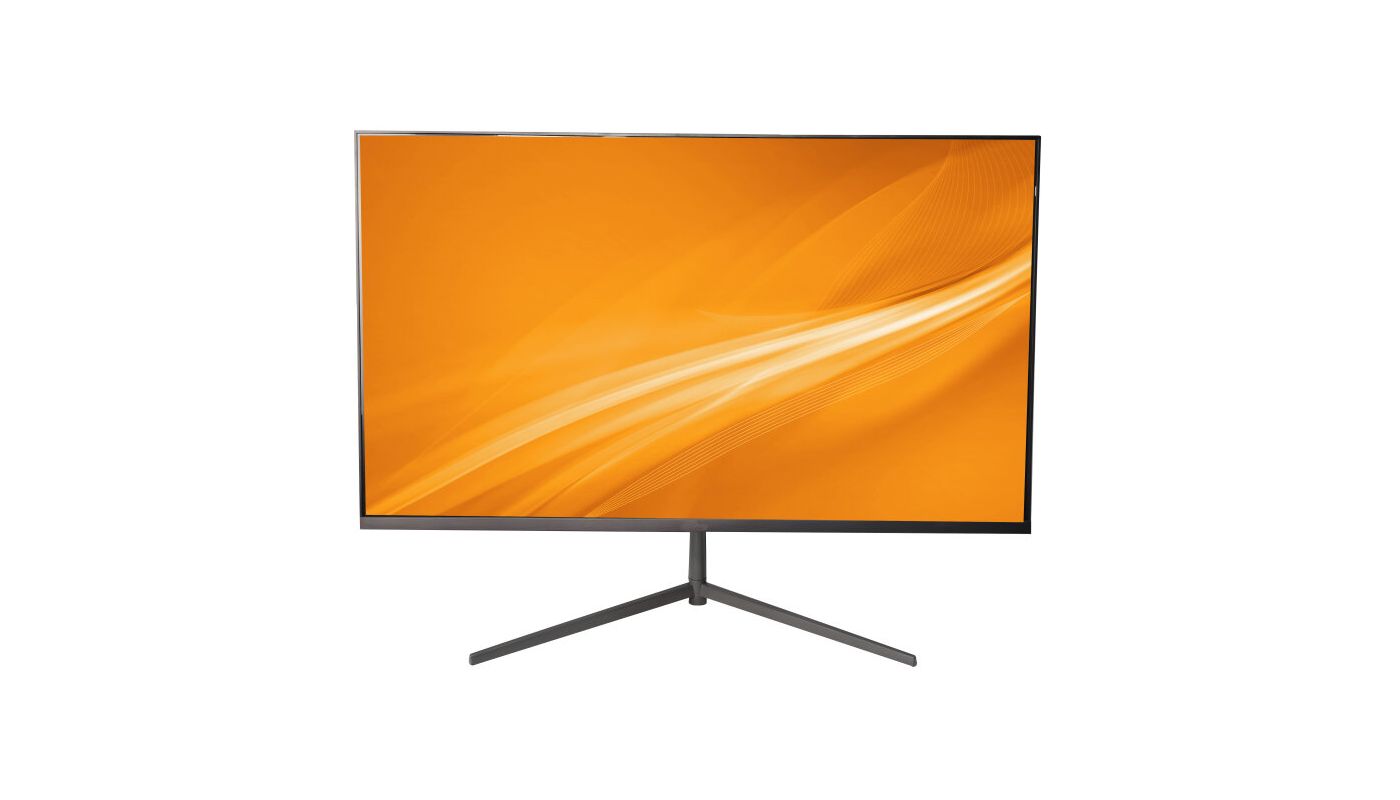

VM-FHD24PF
24" (61cm) LCD Monitor, FHD, 1920x1080, LED, HDMI, VGA, Frameless, Plastic Hous.
Art. No.
232726
- Professional 23.8" (60.4cm) LCD monitor
- Maximum resolution Full HD 1920x1080 pixels
- LED backlight
- Designed for continuous operation 24x7x365
- Versatile inputs HDMI,VGA
- Audio output
- Integrated speakers
- Multilingual menu navigation (OSD)
- Frameless plastic housing
- Metal stand included
| Video: | |
|---|---|
| Resolution | 1920x1080, 1280x1024, 1024x768 , 800x600, 720x400, 640x480 |
| Display: | |
| Display element | Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :25% |
| Screen size (inch) | 23,8 |
| Screen size (cm) | 60,5 cm |
| Aspect ratio | 16:9 |
| Backlighting | LED |
| Resolution Pixels | 1920x1080 |
| Contrast ratio typical | 1000:1 |
| Reponse time typical | 5 ms |
| Refreh rate | 60 Hz |
| Brightness typical | 250 cd/m² |
| Viewing angle vertical | 178° |
| Viewing angle horzontal | 178° |
| Pixel format | 0.2745mm ×0.2745mm |
| Pixel fault class | ISO 13406-2, Class II |
| Video standard | PAL/NTSC |
| Functions: | |
| Comb filter | 3D comb filter with de-interlace |
| Menu languages | English, German, Italian, Spanish, French, Chinese |
| Interfaces / Inputs/ Outputs: | |
| Video inputs (type) | VGA, HDMI |
| Video inputs | HDMI 1.4a, HDCP 1.4 |
| Video outputs | no |
| Audio inputs | 1, 1x 3.5mm jack |
| Serial interfaces | no |
| General: | |
| Dimensions (HxWxD) | 317,06x541,35x41,50mm |
| Weight | 4.0kg |
| Mount | VESA standard 75x75mm |
| Hosuing material | plastic |
| Housing color | black |
| Loudspeaker | 2 |
| Power consumption | 30W |
| Supply voltage | 100 ~ 240VAC |
| Operating temperature | 0°C ~ +40°C, @ Humidity 10%-85% (non-condensing) |
| Parts supplied: | |
| Parts supplied | manual, power cord, feet, HDMI cable |
