VM-FHD24P

    New

    VM-FHD24P

    Art. No.: 226699

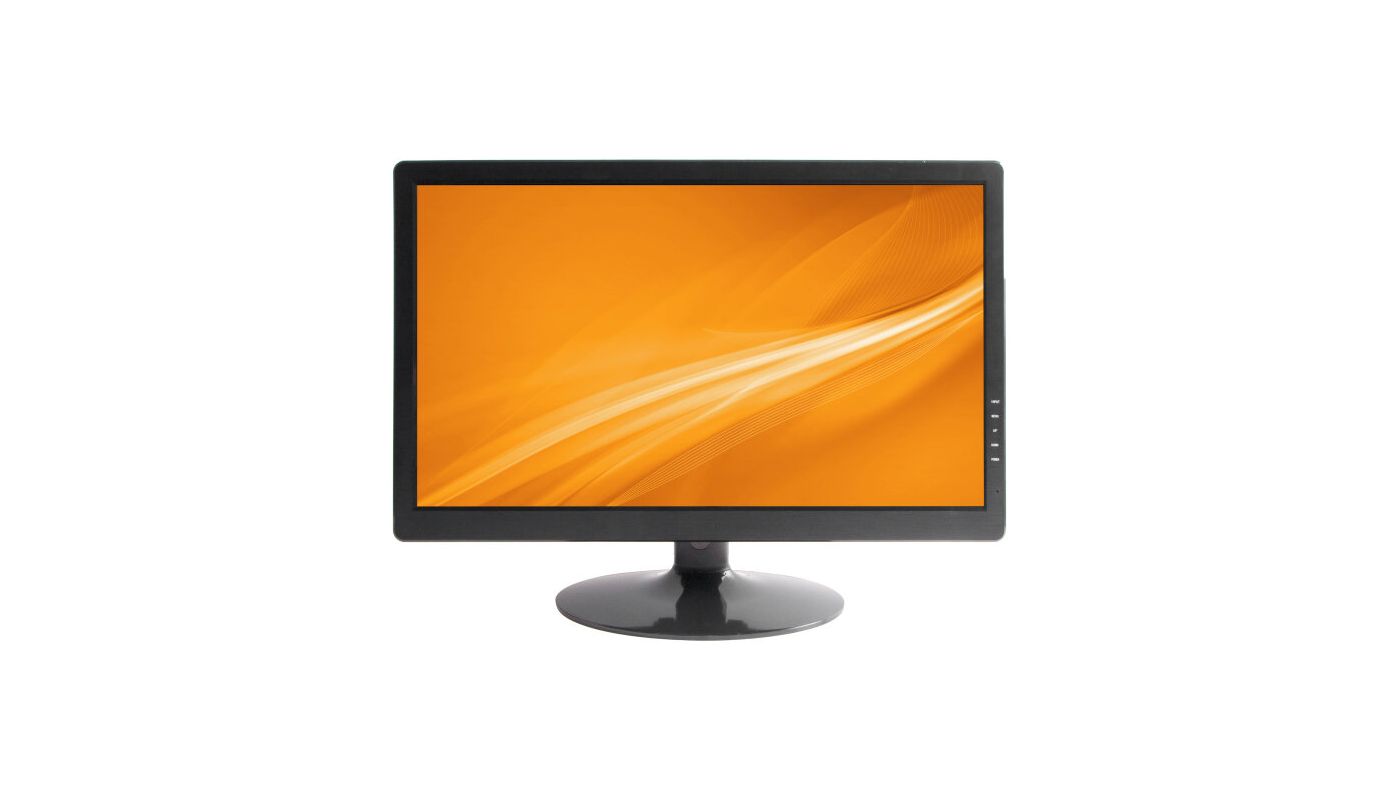

    24" (61 cm) LCD Monitor Full HD, 1920x1080, LED, DisplayPort, HDMI, VGA

    Mainfeatures

    • Professional 24"(61 cm) LCD monitor
    • Maximum resolution Full HD 1920x1080 pixels
    • LED Back Light
    • Perfect presentation through digital 3D filtering and noise reduction
    • Built to run 24x7x365 continuously
    • Different video inputs DisplayPort,HDMI,VGA
    • Built-in speakers
    • Plastic cabinet including stand

    Specifications

    Resolution 1920x1080 (16:9)
    Synchronization internal
    Display:
    Aspect ratio 16:9
    Resolution pixels 1920x1080
    Contrast ratio typical 1000:1
    Response time typical 5 ms
    Brightness typical 300 cd/m²
    Backlighting LED
    Viewing angle vertical 170 °
    Viewing angle horizontal 170 °
    Screen size 24
    Screen Size (cm) 60,96 cm
    Pixel format 0.2715 mm x 0.2715 mm
    Pixel fault class ISO 13406-2, Class II
    Video standard PAL/NTSC
    Features:
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, HDMI, DisplayPort
    Audio inputs 1x 3.5mm jack, 1
    Audio output no
    Serial interfaces no
    General:
    Dimensions (HxWxD) 342,3x562,4x51,1mm
    Total height with stand 402,9mm
    Mount VESA standard 75x75mm
    Housing material plastic
    Housing color black
    Weight 4.0kg
    Loudspeaker 2
    Power consumption 25W
    Supply voltage 12VDC
    Temperature range (operation) -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
    Scope of delivery:
    Parts supplied manual, power cord, PSU 100~240VAC, VGA cable, feet
