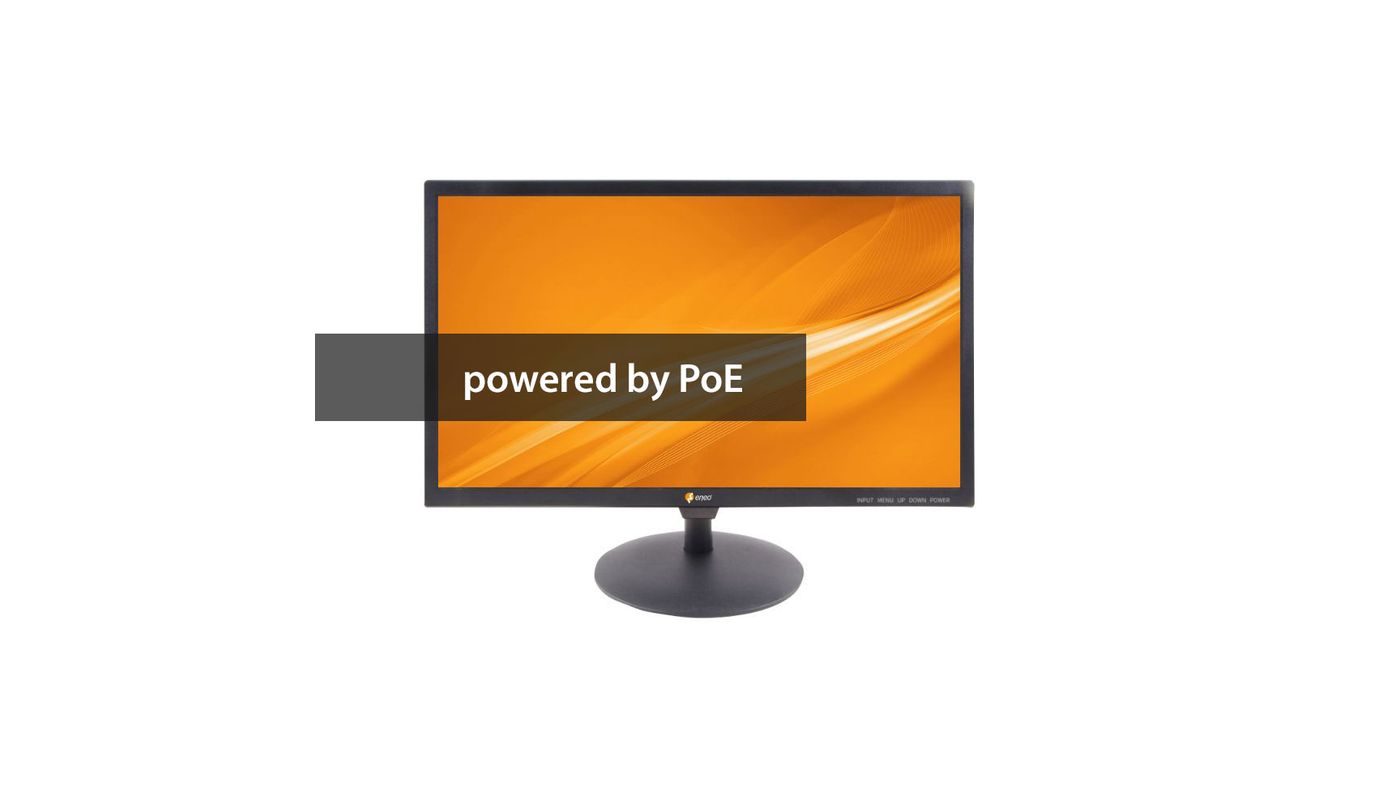

eneo VM-FHD22PP
SKU
233631
22" (56cm) LCD Monitor, FHD, 1920x1080, LED, HDMI, VGA, RJ45 PoE Port
Main Features
Professional 22"(56 cm) LCD monitor
Maximum resolution Full HD 1920x1080 pixels
LED Back Light
3D filtering and noise reduction
Built to run 24x7x365 continuously
Different video inputs HDMI, DVI, VGA
Built-in speakers
Power supply by 12VDC or PoE input (RJ45)
Plastic cabinet including stand
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 233631
- Brand
- ENEO
- Series
- eneo Monitor
Video
- Resolution (extended)
- 800x600,1024x768,1280x1024,1600x900,1920x1080
- Maximum Image Resolution (HV)
- 1920x1080
Display
- Display element
- Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :3%
- Display
- Anti-glare display, Color TFT-LCD, Hard coating (3H)
- Refresh rate
- 60 Hz
- Aspect ratio
- 16:9
- Contrast ratio (typical)
- 1000:1
- Response time (typical)
- 5 ms
- Brightness (typical)
- 250 cd/m²
- Backlight
- LED
- Viewing Angle Vertical
- 178 °
- Viewing Angle Horizontal
- 178 °
- Screen diagonal (inches)
- 22 "
- Screen diagonal (cm)
- 56 cm
- Pixel error class
- ISO 13406-2, Class 2
Functions
- Comb filter
- Yes
- Menu languages
- English, French, German, Italian, Spanish
Interfaces / Inputs/ Outputs
- Video Inputs
- HDMI 2.0, VGA
- Transmission Technology
- HDCP 1.4, HDCP 2.2, HDMI 1.4a
General
- Applications
- Desktop, Industry
- Dimensions (WxHxD) (extended)
- 508,35x305,93x200mm
- Weight
- 3.5 kg
- Fortification
- VESA Standard 100x100mm
- Color (Housing)
- Black
- Housing material
- Plastic
- Power consumption
- 25 W
- Power supply
- 12VDC
- Energy efficiency class
- E
Parts supplied
- Scope of delivery
- manual,PSU 100~240VAC,IR remote controller,feet
Notes
- Remark
- NDAA compliance under Section 889
Further product information
eneo VM-FHD22PP – The professional 22&34; monitor for security and industrial use. Thanks to PoE (IEEE 802.3at), it can be powered directly via the network cable – ideal where no socket is available. Perfect for control centers, equipment rooms or mobile setups. Also usable as a 12VDC power source for external devices!
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Data sheet PDF | 1.1 MB
- Manufacturer data sheet (german)
- Data sheet PDF | 1.1 MB
- Manufacturer data sheet (english)
- Manual PDF | 749.8 kB
- Manual for this product (german)
- Manual JPG | 621.9 kB

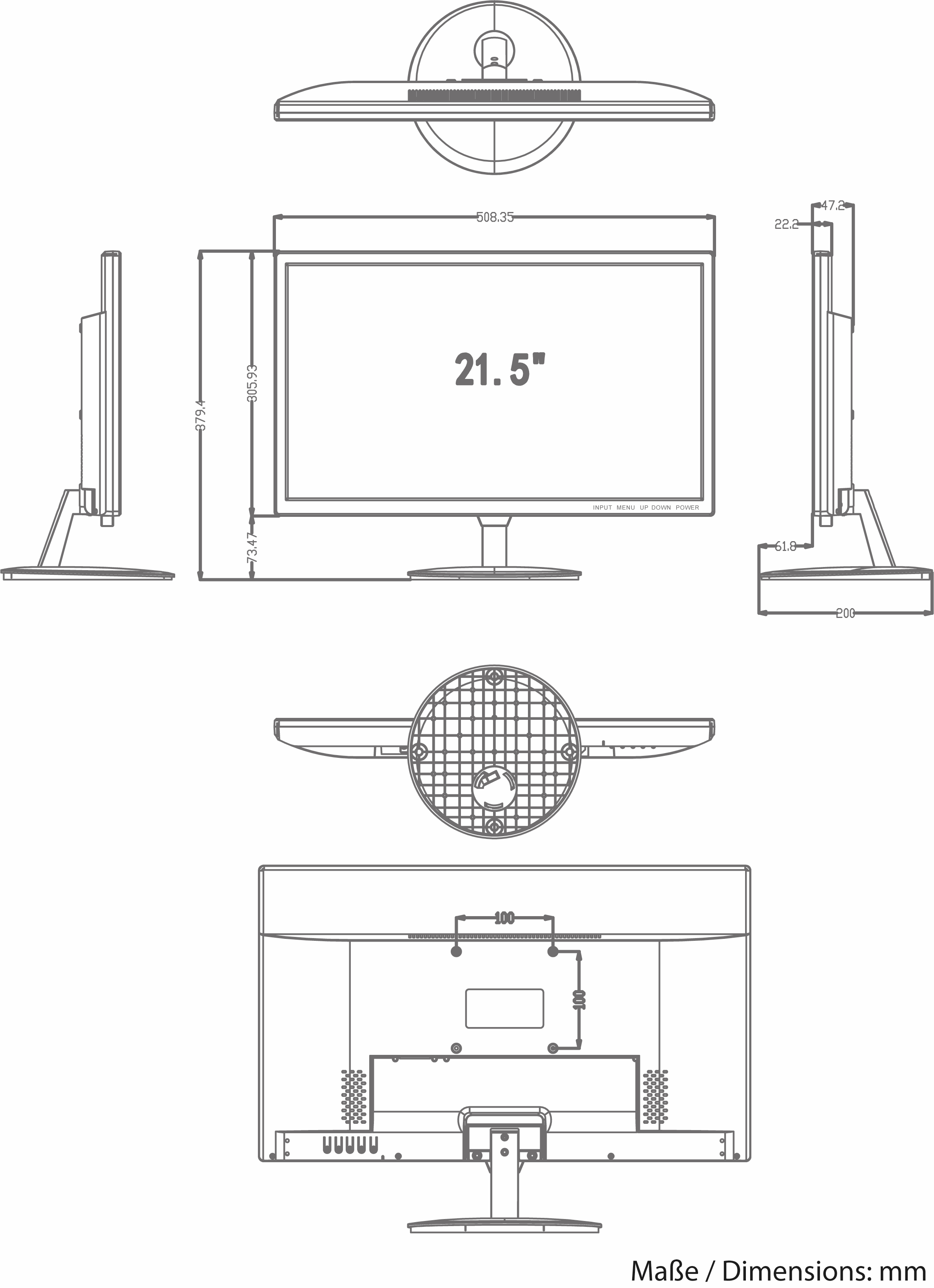

- Technical Drawing
