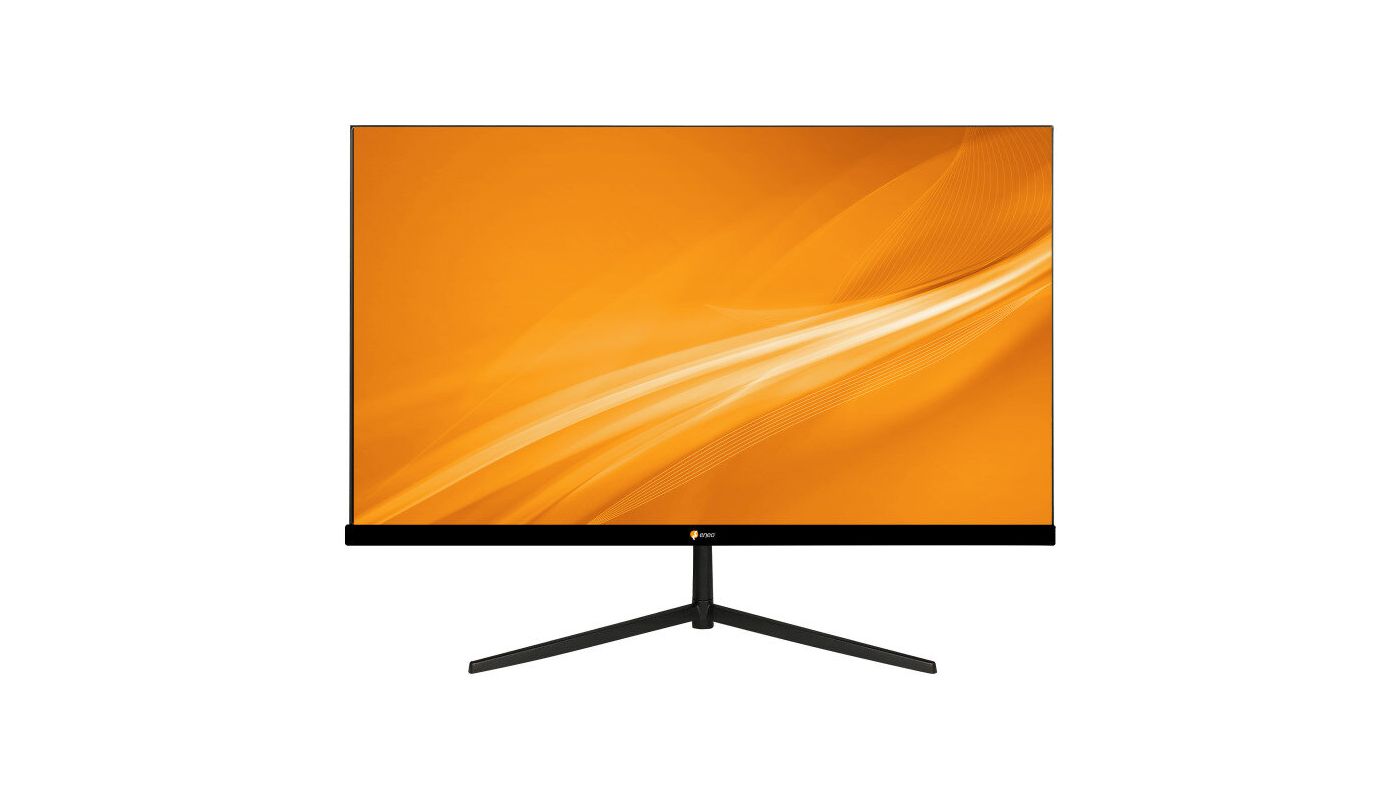

eneo VM-FHD22PF
SKU
234196
22" (56cm) LCD Monitor, FHD, 1920x1080, LED, DP, HDMI, VGA, Frameless, Plastic
Main Features
Professional 22"(56 cm) LCD monitor
Maximum resolution Full HD 1920x1080 pixels
Different video inputs HDMI, DisplayPort, VGA
LED Back Light
High contrast ratio
Fast response times
Easy operation via navigation joystick
Built to run 24x7x365 continuously
Plastic cabinet including stand
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 234196
- Brand
- ENEO
- Series
- eneo Monitor
Video
- Resolution (extended)
- 1920x1080,1280x1024,1024x768,800x600,720x400,640x480
- Maximum Image Resolution (HV)
- 1920x1080
Display
- Display element
- Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze :25%
- Display
- Anti-glare display, Color TFT-LCD, Hard coating (3H)
- Refresh rate
- 60 Hz, 70 Hz, 75 Hz
- Aspect ratio
- 16:9
- Contrast ratio (typical)
- 3000:1
- Response time (typical)
- 6.5 ms
- Brightness (typical)
- 200 cd/m²
- Backlight
- LED
- Viewing Angle Vertical
- 178 °
- Viewing Angle Horizontal
- 178 °
- Screen diagonal (inches)
- 22 "
- Screen diagonal (cm)
- 56 cm
- Pixel error class
- ISO 13406-2, Class 2
Functions
- Comb filter
- Yes
- Menu languages
- English, French, German, Italian, Spanish
Interfaces / Inputs/ Outputs
- Video Inputs
- 1x VGA, DisplayPort, HDMI
- Audio Inputs
- No
General
- Applications
- Desktop, Industry
- Dimensions (WxHxD) (extended)
- 492x281x42mm
- Weight
- 3 kg
- Fortification
- VESA Standard 75x75mm
- Color (Housing)
- Black
- Housing material
- Plastic
- Power consumption
- 25 W
- Power supply
- 12VDC
- Energy efficiency class
- D
Parts supplied
- Scope of delivery
- manual,Power supply unit 100 ~ 240VAC / 12VDC,50/60Hz,power cord,feet,HDMI cable
Notes
- Remark
- NDAA compliance under Section 889
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Data sheet PDF | 642.1 kB
- Manufacturer data sheet (german)
- Data sheet PDF | 642 kB
- Manufacturer data sheet (english)
- Manual PDF | 318.9 kB
- Manual for this product (german)
- Manual JPG | 139.5 kB

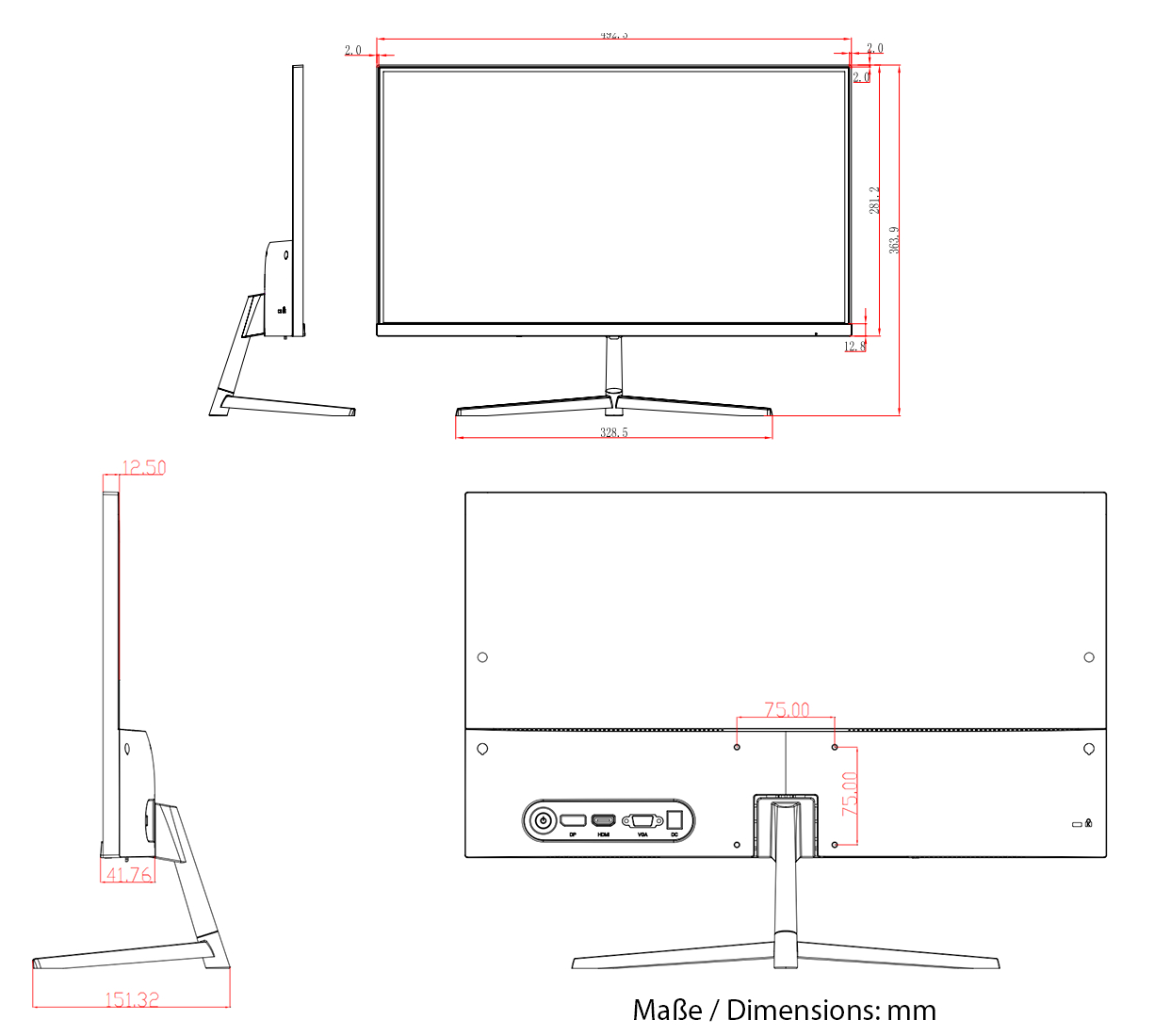

- Technical Drawing
- Manual PDF | 318.9 kB
- Manual for this product (english)
- Marketing PDF | 165.3 kB
- NDAA compliant products
- Hi-Res images ZIP | 172.1 kB
- Product image in a high resolution
- Declaration of conformity PDF | 113 kB
- Declaration of conformity (german and english)
