VM-FHD22M

    • VM-FHD22M
    • VM-FHD22M

    VM-FHD22M

    Art. No.: 217916

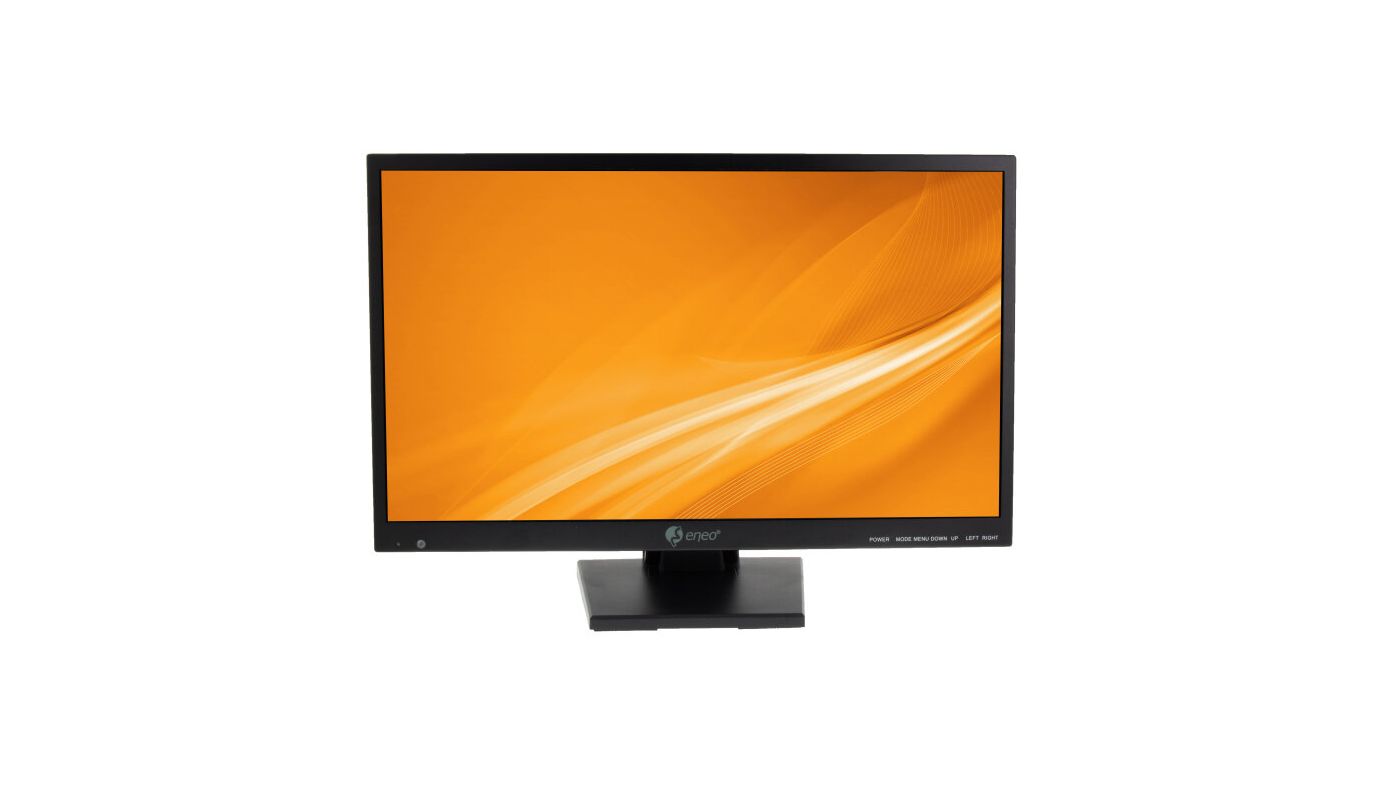

    22" (56cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA, BNC

    Mainfeatures

    • Professional 22"(56 cm) LCD monitor
    • Maximum resolution Full HD 1920x1080 pixels
    • LED Back Light
    • Perfect presentation through digital 3D filtering and noise reduction
    • Built to run 24x7x365 continuously
    • Different video inputs HDMI, DVI, VGA, BNC (CVBS)
    • Built-in speakers
    • Metal cabinet including stand

    Specifications

    Resolution pixels 1920x1080
    Video standard PAL/NTSC
    Resolution 1920x1080 (16:9)
    Display:
    Aspect ratio 16:9
    Contrast ratio typical 1000:1
    Response time typical 5 ms
    Brightness typical 250 cd/m²
    Backlighting LED
    Viewing angle vertical 178 °
    Viewing angle horizontal 178 °
    Screen size 22"
    Screen Size (cm) 55.9 cm
    Features:
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, HDMI, 2x composite (CVBS)
    Audio inputs 1x 3.5mm jack, 1
    Audio output 1x 3,5mm jack
    Serial interfaces no
    General:
    Dimensions (HxWxD) 306x498,4x67mm
    Mount VESA standard 100x100mm
    Housing material metal
    Housing color black
    Weight 8.5kg
    Loudspeaker 2
    Power consumption 25W
    Supply voltage 12VDC
    Temperature range (operation) -30°C ~ +85°C
    Scope of delivery:
    Parts supplied manual, power cord, PSU 100~240VAC, IR remote controller
