Mainfeatures

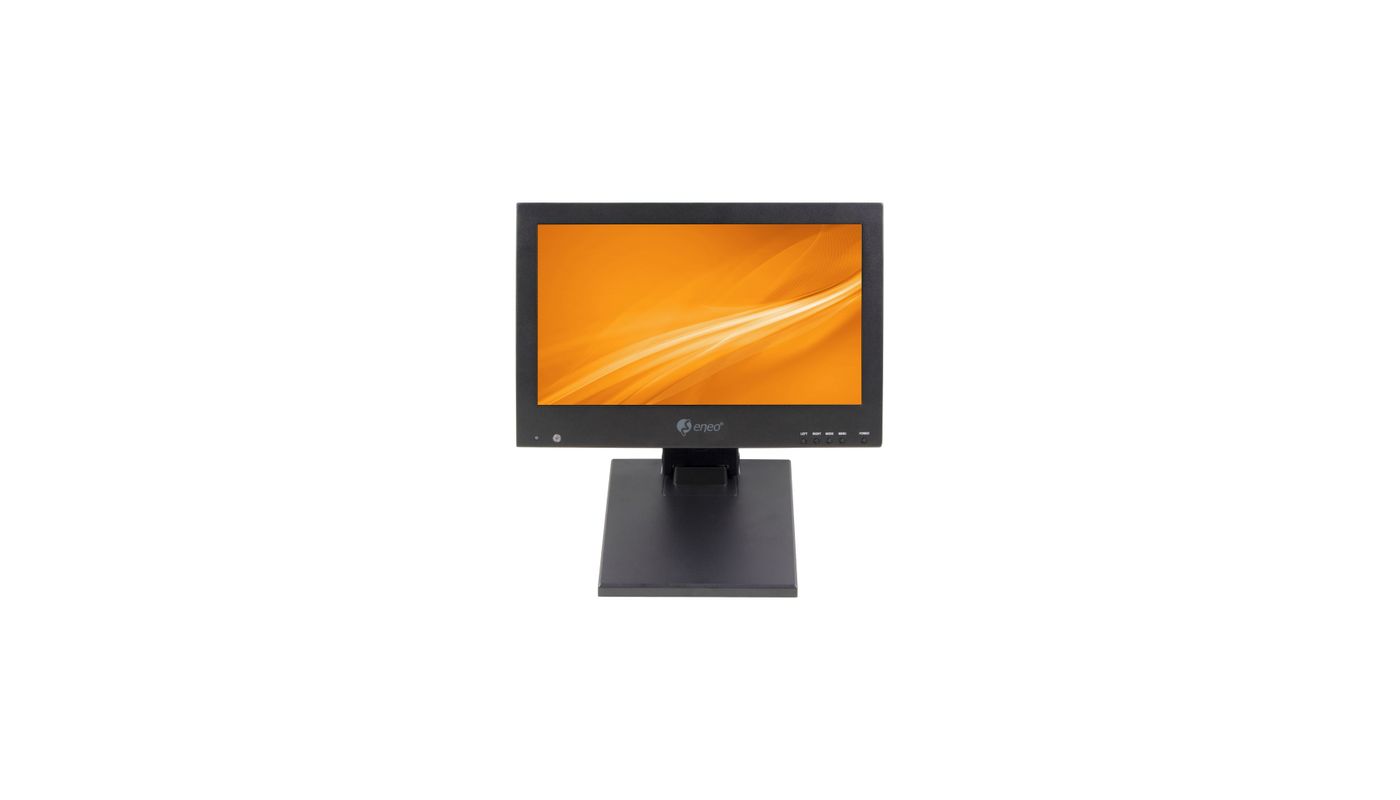

- Professional 12" (30 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1920x1080 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI, VGA, Composite
- HD analog multi signal input (TVI, AHD, CVI)
- Supply voltage: 12VDC
- Metal cabinet including stand
Specifications
| Resolution | 1920x1080 (16:9) |
| Synchronization | internal |
| Display: | |
| Aspect ratio | 16:9 |
| Resolution pixels | 1920x1080 |
| Display element | Colour TFT/LCD, Anti-Glare-Display, Hard coating (3H), Haze : 3% |
| Contrast ratio typical | 1000:1 |
| Response time typical | 5 ms |
| Brightness typical | 250 cd/m² |
| Backlighting | LED |
| Viewing angle vertical | 170 ° |
| Viewing angle horizontal | 170 ° |
| Screen size | 12,5 |
| Screen Size (cm) | 30 cm |
| Pixel format | 0,144mm x 0,144mm |
| Pixel fault class | ISO 13406-2, Class II |
| Video standard | PAL/NTSC |
| Features: | |
| Comb filter | 3D comb filter with de-interlace |
| Menu languages | English |
| Interfaces / Inputs / Outputs: | |
| Video inputs (type) | VGA, 2x HDMI, composite (CVBS), HD-TVI, AHD, CVI |
| Audio inputs | 1x 3.5mm jack, 1 |
| Audio output | 1x 3,5mm jack |
| Serial interfaces | no |
| General: | |
| Dimensions (HxWxD) | 315x326x43mm |
| Total height with stand | 335mm |
| Mount | VESA standard 75x75mm |
| Housing material | metal |
| Housing color | black |
| Weight | 2.3kg |
| Loudspeaker | 2 |
| Power consumption | 10W |
| Supply voltage | 12VDC |
| Temperature range (operation) | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
| Scope of delivery: | |
| Parts supplied | manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet |
Drawings
