    VM-FHD10M

    Art. No.: 225695

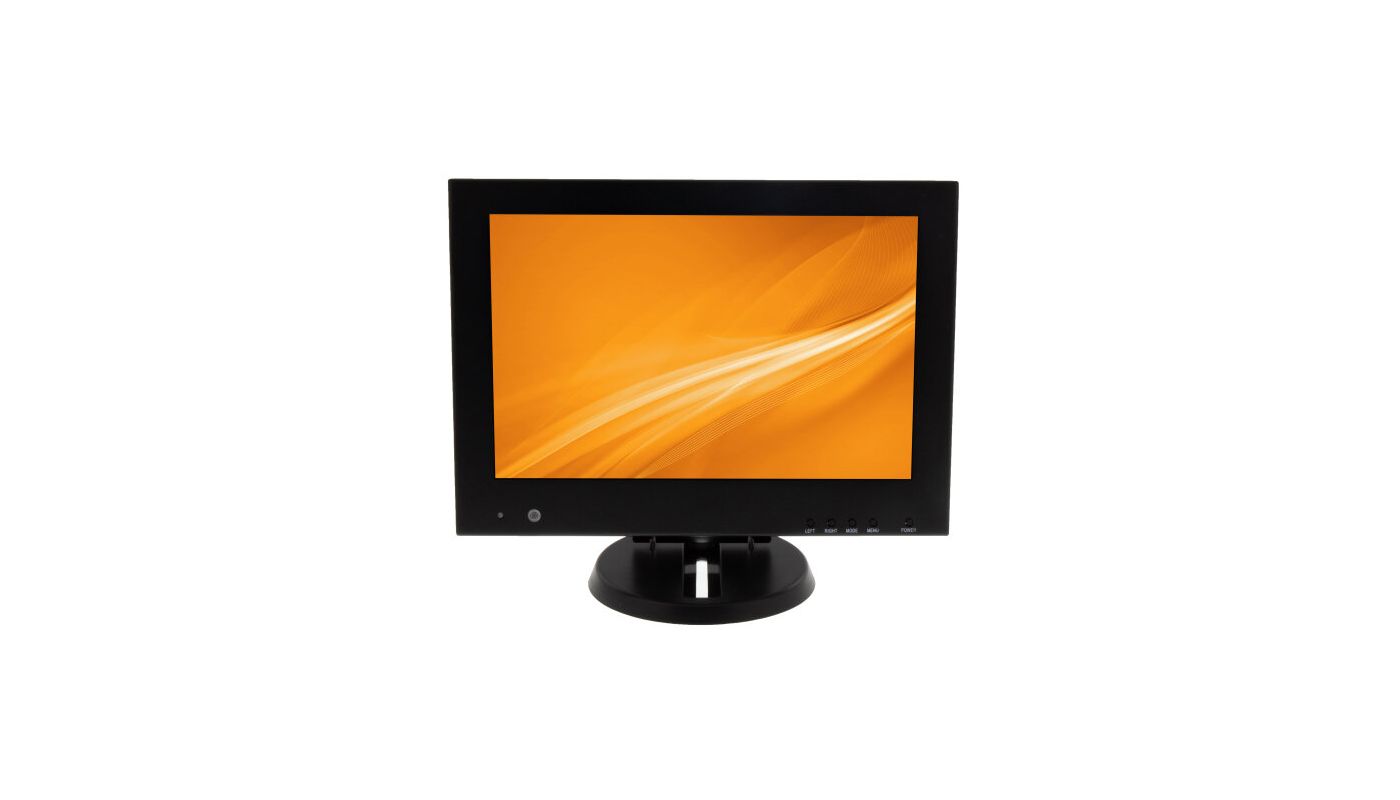

    10" (25cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA, Composite

    Mainfeatures

    • Professional 10" (25 cm) LCD monitor
    • Industrial design built to run 24x7x365 continuously
    • Maximum resolution 1920x1080 pixels
    • LED Back Light
    • Fast response time 5ms
    • Perfect presentation through digital 3D filtering and noise reduction
    • Different video inputs HDMI, VGA, Composite
    • HD analog multi signal input (TVI, AHD, CVI)
    • Supply voltage: 12VDC
    • Metal cabinet including stand

    Specifications

    Resolution 1920x1080 (16:9)
    Synchronization internal
    Display:
    Aspect ratio 16:9
    Resolution pixels 1920x1080
    Contrast ratio typical 1000:1
    Response time typical 5 ms
    Brightness typical 350 cd/m²
    Backlighting LED
    Viewing angle vertical 178 °
    Viewing angle horizontal 178 °
    Screen size 10,1
    Screen Size (cm) 25,6 cm
    Pixel format 0,630mm x 0,630mm
    Pixel fault class ISO 13406-2, Class II
    Video standard PAL/NTSC
    Features:
    Comb filter 3D comb filter with de-interlace
    Menu languages English
    Interfaces / Inputs / Outputs:
    Video inputs (type) VGA, 2x HDMI, composite (CVBS), HD-TVI, AHD, CVI
    Input signals HD-TVI up to 5MP, AHD up to 5MP, CVI up to 4MP
    Audio inputs 1x 3.5mm jack, 1
    Audio output 1x 3,5mm jack
    Serial interfaces no
    General:
    Dimensions (HxWxD) 185x260x18mm
    Total height with stand 215mm
    Mount VESA standard 75x75mm
    Housing material metal
    Housing color black
    Weight 4.5Kg
    Loudspeaker 2
    Power consumption 10W
    Supply voltage 12VDC
    Temperature range (operation) -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
    Scope of delivery:
    Parts supplied manual, power cord, PSU 100~240VAC, IR remote controller, VGA cable, feet

    Product recommendations

      • (0 products found)

    Downloads

    Label Format File size Description download
    Documents
    PDF <350 KB Data sheet with specifications, generated live from the product database Start Download
    DOC <50 KB Technical data as a Microsoft Word document, generated live from the product database Start Download
    PDF 5964.09 KB Detailed manual for this product Start Download
    PDF 108.71 KB Declaration of Conformity in German and English Start Download
