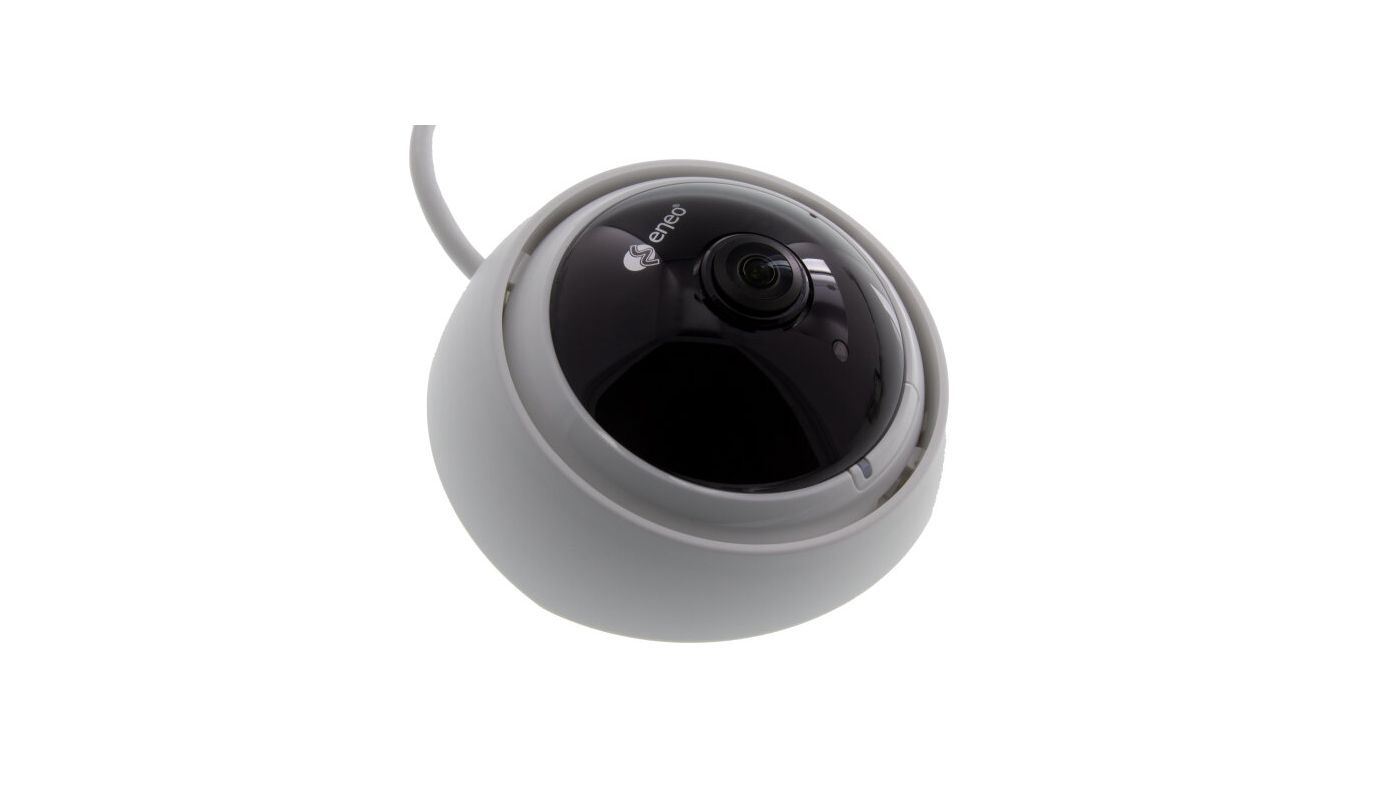

TSD-52F0013P0A

1/3" HD Dome, Fixed, Day&Night 1920x1080, Infrared, 1,34mm, 360°, Indoor, 12VDC
Art. No.
221916
  • 1/1,3" Progressive CMOS-Sensor
  • 1,34mm fixed focal length
  • HD-TVI analouge fishEye camera
  • 360° surround and 180° panorama view
  • Resolution max. 1920x1080@25fps
  • D-WDR (Digital Wide Dynamic Range)
  • UTC support remote control by Pelco C protocol
  • For ceiling and wall installation
  • Compact design for indoor application
Specifications
Series EX-Series
Camera:
Sensor size 1/3"
Imager CMOS, Progressive scan
System True Day&Night
Sensitivity 0,5 Lux, at F2.0, 30 IRE
Low Speed Shutter no
Automatic electronic shutter (ESC) 1/25 ~ 1/10.000sec.
Wide Dynamic Range (WDR) D-WDR
Day&Night switch ICR
Day&Night mode auto, day, night
White balance automatic, push lock
Signal-to-noise ratio 50dB
Video:
Signal format HD-TVI @ 2MP
Frame rate 25/30fps @ 1920x1080p
Lens:
Lens Type fixed focal length
Focal Length 1,34 mm
Digital Zoom no
MOD (Mininum Object Distance) 0,3 m
Aperture range (F) F2.0
Resolution Pixels 1920x1080
Horizontal Angle of View 360°
Video standard PAL/NTSC
Functions:
Motion Detector no
Menu languages English
Privacy zone masking no
Mirror function V flip, H-flip, H/V flip
Digital Noise Reduction yes
Interfaces / Inputs/ Outputs:
Video outputs HD-TVI
External connectors 12VDC input (DC plug), 1x HD Analog Signal (BNC), connection cable approx.40cm
Alarm inputs no
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
General:
Dimensions (HxWxD) 33,5x77mm
Weight 345g
llumination infrared
Illumination 4x IR LED 850nm
Illumination range approx. 7m
Color (housing) white
Color (bubble) clear
Housing indoor
Hosuing material plastic
Heater no
Camera Type Fisheye Kamera
Power consumption 3.2W
Blower no
Mounting wall mount, ceiling mount
Supply voltage 12VDC
Operating temperature 0°C ~ +40°C
Vandal proof no
Parts supplied:
Parts supplied manual, drilling template, screw set
