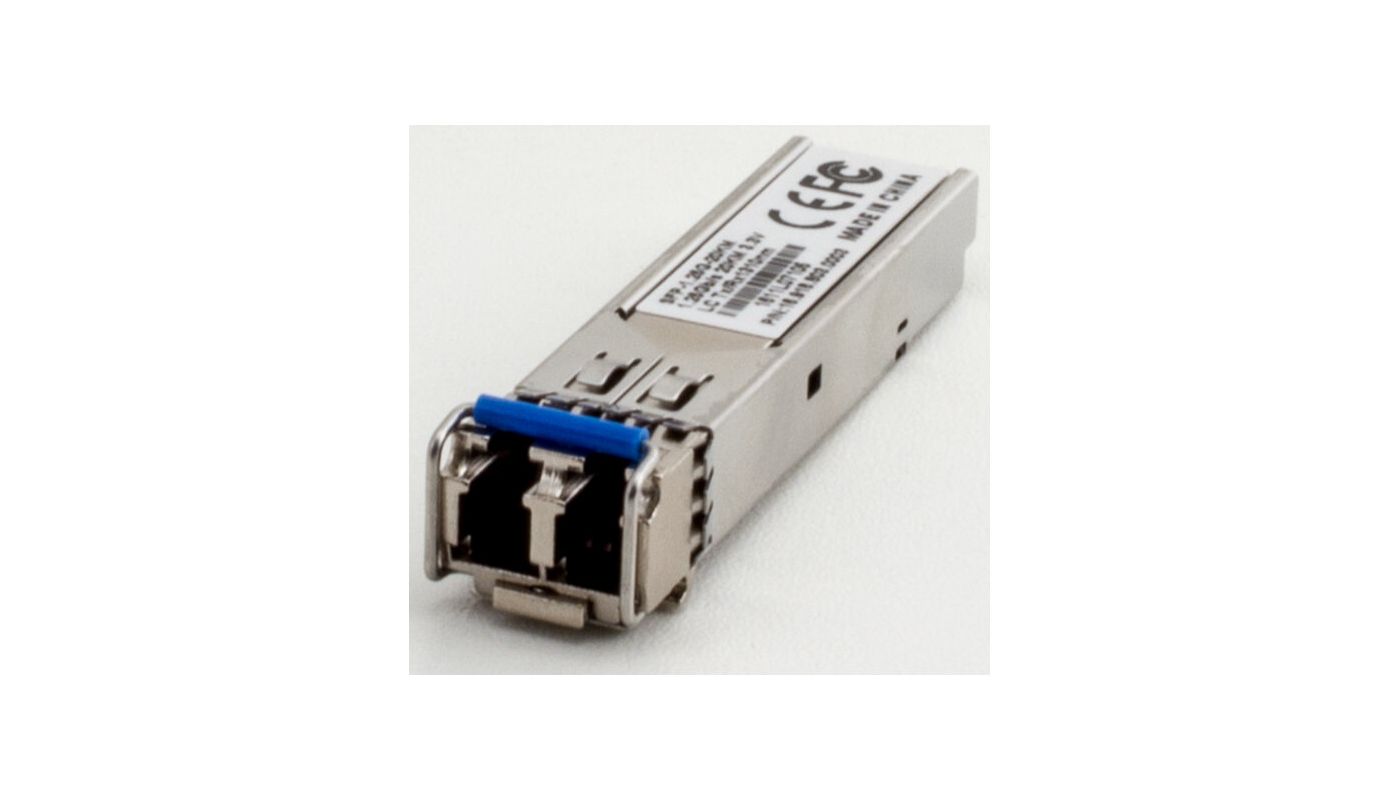

SFP-1310S40
SFP Modul, 1.25Gbps, 20km, Singlemode, 1310nm, Duplex LC Connector -40°~+75°C
Art. No.
216477
- Compatible to IEEE802.3z Gigabit Ethernet Standard
- Bandwith 1,25Gbps
- Compliant with Fibre Channel 100-SM-LC-L
- Industry standard small form pluggable (SFP) package
- Duplex LC connector, 1310nm
- Differential LVPECL inputs and outputs
- Single power supply 3.3V
- Hot Pluggable
- Class 1 laser product complies with EN 60825-1
- Distance 9/125 µm SMF 20km
- Temperature range -40° ~ +70°C
| Operation mode | single mode |
|---|---|
| Interfaces / Inputs/ Outputs: | |
| Fiber optic connector | Duplex LC |
| General: | |
| Weight | 17g |
| Range | 20 km |
| Type | SFP-Modul |
| Operating temperature | -40°C ~ +75°C |
| Wavelength | 1310nm |
| Application | indoor |
| Number of fibers | 2 |
| Transmission medium | optical fiber |
