SKU 243653

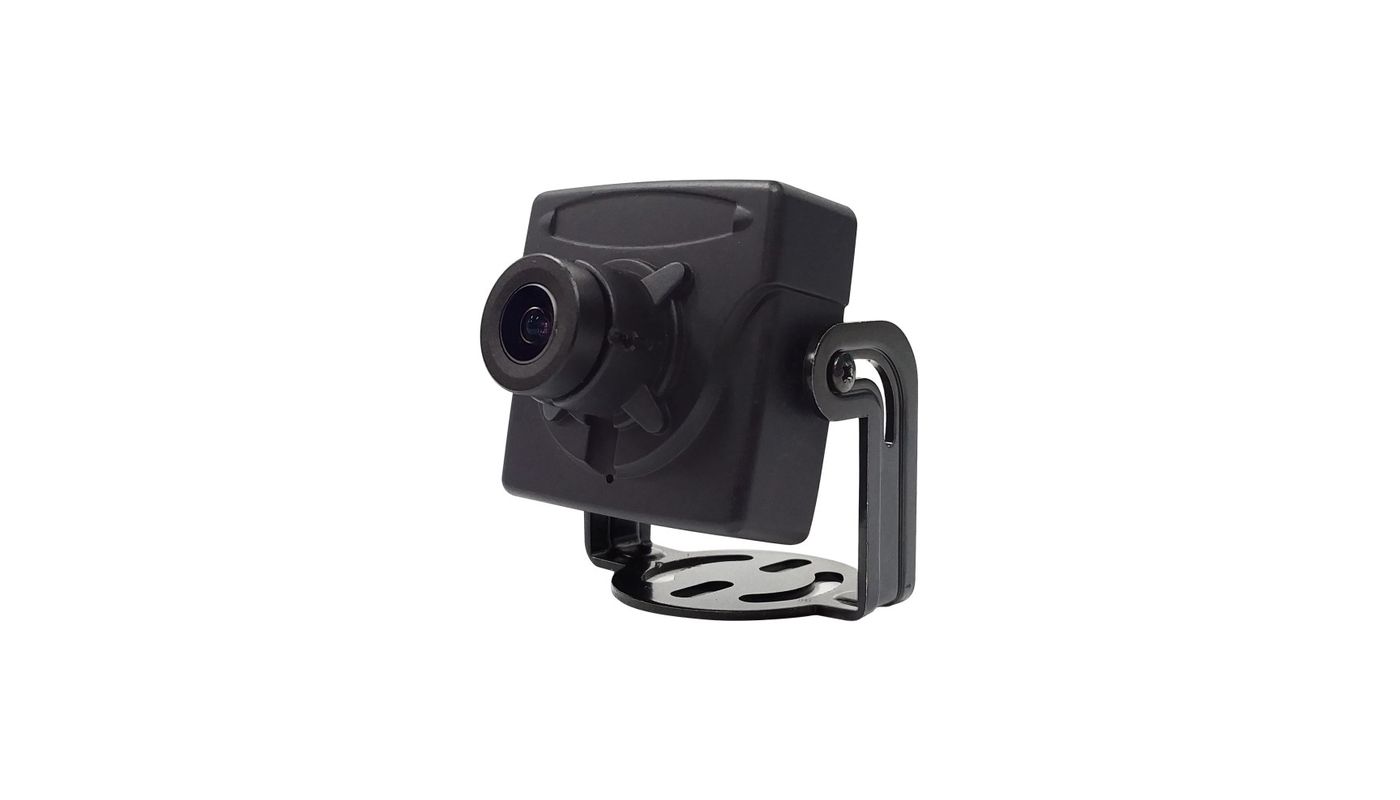

1/2.8" HD Board Camera, Colour, 1920x1080, 2,8mm, WDR, Housing, 12VDC

Main Features

1/2,8" 2 Megapixel SONY STARVIS 2 CMOS-Sensor
Super low light performance by Sony STARVIS 2 technology
Board Camera with rugged metal cabinet
Resolution max. 1920x1080 (Full HD)
Separate outputs for digital and multi-signal
Multisignal: HD-TVI, AHD, CVI and Composite selectable
Digital signal: EX-SDI, HD-SDI selectable
Fixed 2.8mm
Electronic Day/Night function
ROI (Region of Interest) WDR mode
Integrated motion detector, defog, privacy zones
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

DORI:

Detect (25px/m)
45,9 m
Observe (62 px/m)
18 m
Recognize (125 px/m)
8,8 m
Identify (250 px/m)
4,2 m
Other

Brand
ENEO
Camera type
Modul
Sensor size
1/2.8"
Imager
Sony STARVIS 2, Sony IMX-662, CMOS
Sensitivity
0,08
System
colour
Low speed shutter
yes
Manual electronic shutter (MES)
1/30~1/30.000sec.
Automatic electronic shutter (ESC)
1/30~1/30.000sec.
Wide Dynamic Range (WDR)
Real Time WDR 25/30fps, Clear HDR, D-WDR, DOL, Inter Frame
Flickerless function
yes
Backlight compensation
BLC, HLC
Day&Night switch
ICR
Day&Night mode
Automatic, Day, Night, extern (Sensor)
White balance
Automatic, Preset, Manual, AUTOext
Signal-to-noise ratio
50dB
Signal format
AHD @ 2MP, CHD @ 2MP, Composite (FBAS), EX-SDI (270 Mbps), HD-SDI (1.485 Gbps)
Frame rate
25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Lens Type
fixed focal length
Focal Length
2,8 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,5 m
Iris Control
DC
Resolution Pixels
1280x720, 1920x1080, 720x480, 720x576
Vertical Angle of View
48°
Horizontal Angle of View
97°
Video standard
PAL/NTSC
Motion detector
yes
OSD function control
OSD camera setup
Menu languages
German, English, French, Chinese, Japanese, Korean
Privacy zone masking
Areas-ON/OFF switchable
Mirror function
mirror, flip
Digital Noise Reduction
3D-NR, yes
Video outputs
AHD, CHD, Composite (CVBS), EX-SDI, HD-SDI, HD-TVI
External connectors
voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC)
Alarm inputs
nein
Alarm outputs
no
Serial interfaces
Coaxitron (HD Protocol)
Serial interfaces protocols
UTC (HD-Signal Format)
Series
eneo COAXIZE
Dimensions (HxWxD)
37x37,8x27mm
Weight
110g
Color (housing)
black
Housing
Indoor
Hosuing material
Aluminium
Camera Type
Board Camera
Power consumption
1.5W
Mounting
Ceiling mount, Wall mount
Supply voltage
12VDC
Operating temperature
-10°C ~ +50°C, @ Humidity 20%-80% (non-condensing)
Text display
supplied
Parts supplied
manual, mounting accessories
Remarks
NDAA compliance under Section 889
Manufacturer order number
243653

Further product information

Sony STARVIS 2 Improved low-light performance (especially with HDR)STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast. Higher dynamic range (High Dynamic Range)STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that's more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas. Uniform brightness across the image fieldSTARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions. Better colour reproduction in low lightSTARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).

Downloads

Data sheet PDF
Data sheet with specifications generated live from the product database
Documents PDF
Quick reference guide for this product
Documents PDF
Kurz-Betriebsanleitung zum Produkt
Documents PDF
Declaration of Conformity in German and English
Media ZIP
Product Image in a high resolution for print
Marketing Infos PDF | 178.1 kB
NDAA konforme Produkte
