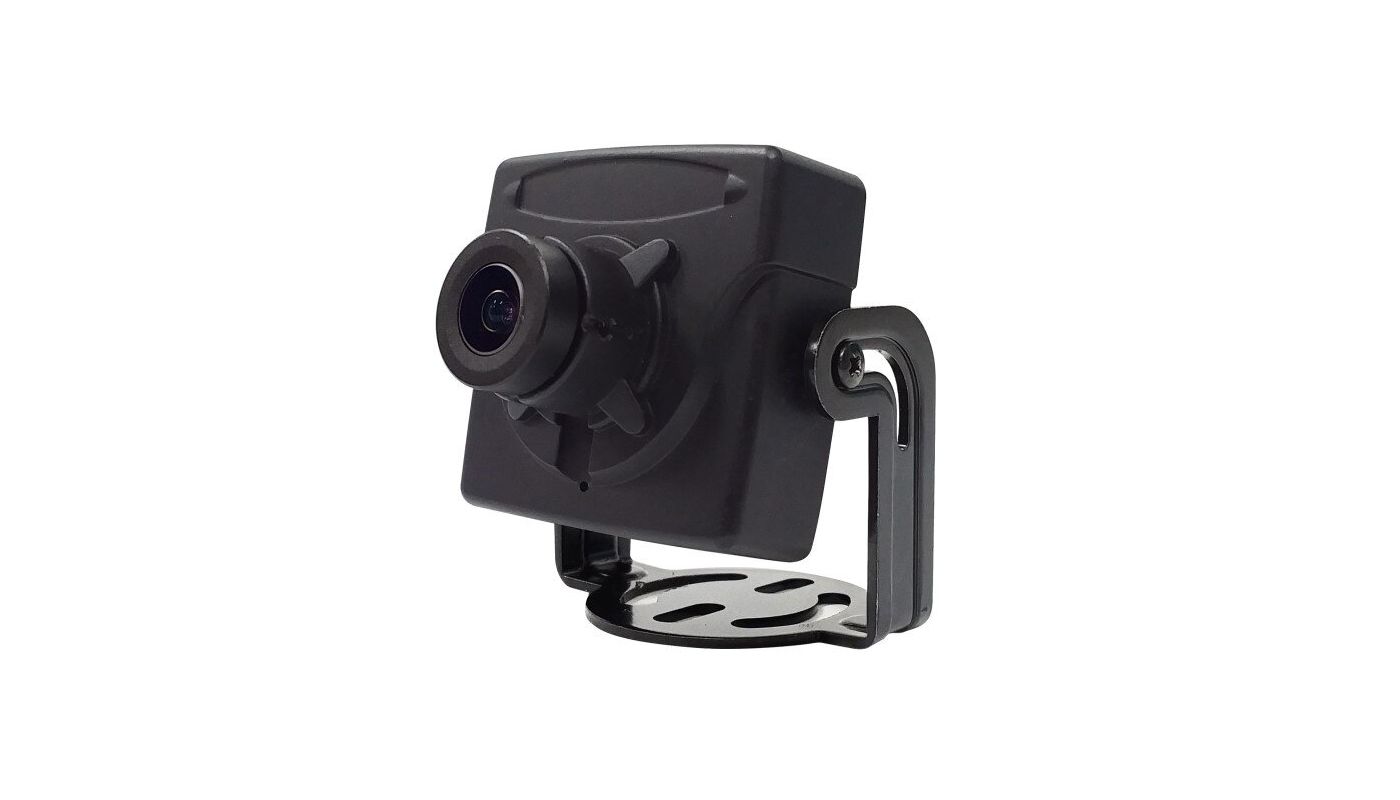

MSM-42F0028M0A
1/2.8" HD Board Camera, Colour, 1920x1080, 2,8mm, WDR, Housing, 12VDC
Art. No.
217647
- 1/2,8" 2 Megapixel SONY STARVIS CMOS-Sensor
- Board Camera with rugged metal cabinet
- Resolution max. 1920x1080 (Full HD)
- Separate outputs for digital and multi-signal
- Multisignal: HD-TVI, AHD, CVI and Composite selectable
- Digital signal: EX-SDI, HD-SDI selectable
- Fixed 2.8mm
- Electronic Day/Night function
- ROI (Region of Interest) WDR mode
- Integrated motion detector, defog, privacy zones
| Series | eneo COAXIZE |
|---|---|
| Camera: | |
| Camera type | Modul |
| Sensor size | 1/2.8" |
| Imager | CMOS, Sony STARVIS, Sensor IMX291 |
| System | colour |
| Sensitivity | 0,08 Lux, at F1.4, 40IRE |
| Low Speed Shutter | yes |
| Low speed shutter | manual time preselection |
| Manual electronic shutter (MES) | 1/25 ~ 1/30.000sec |
| Automatic electronic shutter (ESC) | 1/25 ~ 1/30.000sec. |
| Wide Dynamic Range (WDR) | WDR 113dB, Real Time WDR 25/30fps |
| Flickerless function | yes |
| Backlight Compensation | BLC, HLC |
| Day&Night switch | no |
| Day&Night mode | not available |
| White balance | automatic, Preset, manual |
| Signal-to-noise ratio | 50dB |
| Video: | |
| Signal format | Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP, CVI @ 2MP, EX-SDI (270 Mbps), HD-SDI (1.485 Gbps) |
| Frame rate | 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p |
| Lens: | |
| Lens Type | fixed focal length |
| Focal Length | 2,8 mm |
| Digital Zoom | no |
| MOD (Mininum Object Distance) | 0,5 m |
| Iris Control | no |
| Resolution Pixels | 1920x1080, 1280x720, 720x576 |
| Vertical Angle of View | 59° |
| Horizontal Angle of View | 112° |
| DORI: | |
| Detect (25px/m) | 45,9 m |
| Observe (62 px/m) | 18 m |
| Recognize (125 px/m) | 8,8 m |
| Identify (250 px/m) | 4,2 m |
| Functions: | |
| Motion Detector | yes |
| OSD function control | OSD camera setup |
| Menu languages | German, English, Chinese, Japanese, Korean |
| Privacy zone masking | Areas-ON/OFF switchable |
| Mirror function | mirror |
| Digital Noise Reduction | yes |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | HD-TVI, AHD, CVI, composite (CVBS), EX-SDI, HD-SDI |
| External connectors | voltage input, 1x SDI Signal (BNC), 1x HD/SD Analog Signal (BNC) |
| Alarm inputs | no |
| Alarm outputs | no |
| Serial interfaces | Coaxitron (HD Protocol) |
| Serial interfaces protocols | UTC (HD-Signal Format) |
| General: | |
| Dimensions (HxWxD) | 37x37,8x27mm |
| Weight | 110g |
| Color (housing) | black |
| Housing | indoor |
| Hosuing material | metal |
| Camera Type | Platinenkamera |
| Power consumption | 1.8W |
| Mounting | wall mount, ceiling mount |
| Supply voltage | 12VDC |
| Operating temperature | -10°C ~ +50°C |
| Text display | supplied |
| Parts supplied: | |
| Parts supplied | manual, mounting accessories |
| Remarks | NDAA compliance under Section 889, Part A. |
