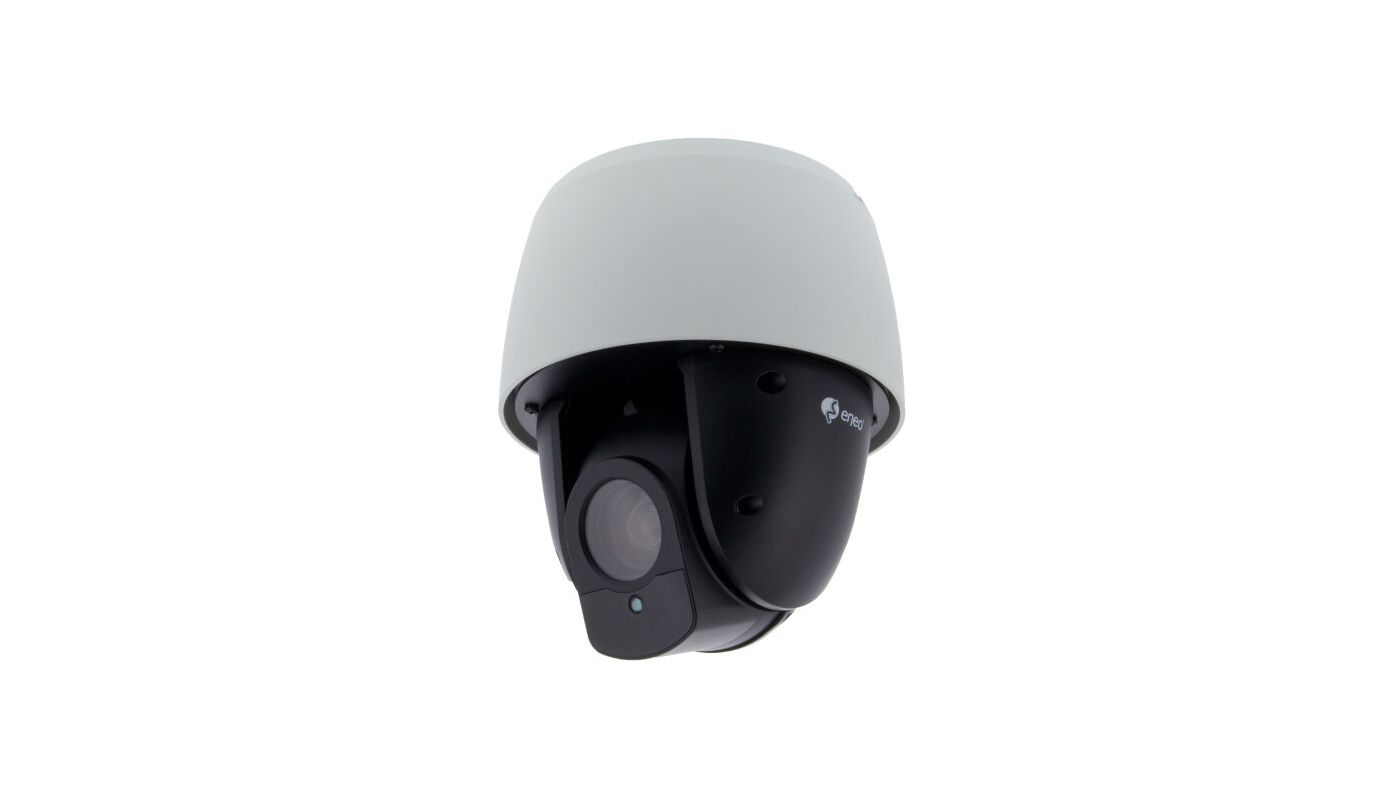

MPP-72A0020MIA
1/2,8" HD Analogue Dome, PTZ, Day&Night, 20x, 4,7-94mm, WDR 1920x1080, Infrared, IP66
Art. No.
219809
- 1/2,8" Sony STARVIS CMOS-Sensor
- 20x Auto Focus Zoom, 4.7 ~ 94mm / 16x Digital
- Resolution max. 1920x1080 (Full HD)
- Separate outputs for HD signals and composite
- Signal formats: HD-TVI, AHD selectable, composite
- Real time WDR (Wide Dynamic Range) 25 / 30fps
- Integrated infrared lighting (up to 60m)
- 3D DNR noise reduction, auto-calibration
- Protected areas, Defog function
- Alarm inputs and outputs, 12VDC, IP66
| Series | eneo COAXIZE |
|---|---|
| Camera: | |
| Camera type | PTZ |
| Sensor size | 1/2.8" |
| Resolution Pixels | 1280x720, 720x576, 1920x1080 |
| Imager | CMOS, Sony STARVIS, Sensor IMX291 |
| System | True Day&Night |
| Sensitivity | 0,35 Lux, at F1.6, 50 IRE |
| Low Speed Shutter | yes |
| Low speed shutter | ON/OFF switchable |
| Manual electronic shutter (MES) | 1/25 ~ 1/30.000sec |
| Automatic electronic shutter (ESC) | 1/25 ~ 1/30.000sec. |
| Wide Dynamic Range (WDR) | WDR 120dB, Real Time WDR 25/30fps |
| Flickerless function | yes |
| Backlight Compensation | BLC, HLC |
| Day&Night switch | ICR |
| Day&Night mode | auto, day, night |
| White balance | automatic, manual, Light bulb, Fluorescent light, outdoor |
| Signal-to-noise ratio | 50dB |
| Video: | |
| Signal format | Composite (FBAS), HD-TVI @ 2MP, AHD @ 2MP |
| Frame rate | 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p |
| Synchronization | internal |
| Lens: | |
| Lens Type | auto focus zoom |
| Zoom Factor | 20x |
| Focal Length | 4,7 - 94 mm |
| Digital Zoom | 16x |
| MOD (Mininum Object Distance) | 1 m |
| Aperture range (F) | F1.6~F3.0 |
| Iris control | DC |
| Vertical Angle of View | 32,4 - 1,7° |
| Horizontal Angle of View | 55,5 - 3° |
| Video standard | PAL/NTSC |
| DORI: | |
| Detect (25px/m) | 70 - 1370 m |
| Observe (62 px/m) | 28 - 550 m |
| Recognize (125 px/m) | 13 - 270 m |
| Identify (250 px/m) | 7 - 130 m |
| Functions: | |
| Motion Detector | yes |
| Analysis functions | Defog, DIS (digital image stabilisation) |
| Presets | 240 presets |
| Patterns | 8 pattern |
| Home position | included (with multiple park actions) |
| Tours | up to 8 user programmable guard tours |
| Auto calibration | yes |
| Rotation range | 360° |
| Speed (manual) | 380°/Sek. |
| Speed (preset) | 380°/Sek. |
| OSD function control | OSD camera setup |
| Menu languages | English, German, French, Italian, Spanish, Polish, Portugese |
| Privacy zone masking | Areas-ON/OFF switchable |
| Mirror function | H/V flip |
| Digital Noise Reduction | yes |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | AHD, HD-TVI, composite (CVBS) |
| External connectors | alarm in/output, voltage input, RS-485, Composite (FBAS), HD-TVI / AHD BNC, connection cable approx.25cm |
| Alarm inputs | 4 |
| Alarm outputs | 2 |
| Serial interfaces | RS-485, Coaxitron (HD Protocol) |
| Serial interfaces protocols | Fastrax IIE, Fastrax IIIE, Pelco D, UTC (HD-Signal Format) |
| General: | |
| Dimensions (HxWxD) | 208,3x182,4mm |
| Weight | 2.8kg |
| llumination | infrared |
| Illumination | 4x High Power LEDs 850nm |
| Illumination range | approx. 60m |
| Color (housing) | white, black |
| Housing | outdoor |
| Hosuing material | aluminium |
| Heater | no |
| Power consumption | 18W |
| Blower | no |
| Mounting | wall mount, ceiling mount, (mounting accessories not supplied) |
| Window heater | no |
| Protection rating | IP66 |
| Supply voltage | 12VDC |
| Operating temperature | -20°C ~ +50°C |
| Text display | supplied |
| Vandal proof | no |
| Parts supplied: | |
| Parts supplied | manual, plug set, bag of screws |
